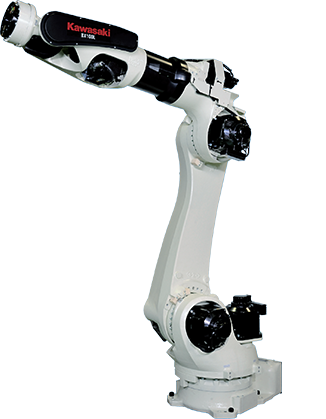

Welding Robot Kawasaki BX200L

The BX200L is a 6-axis hollow wrist industrial robot from Kawasaki capable of handling objects weighing up to 200 kg. The BX200L features high speed and positioning accuracy, an average working range of 2597 mm and is suitable for spot welding automation, machine maintenance, assembly and material handling.

Features:

  • High speed and positioning accuracy

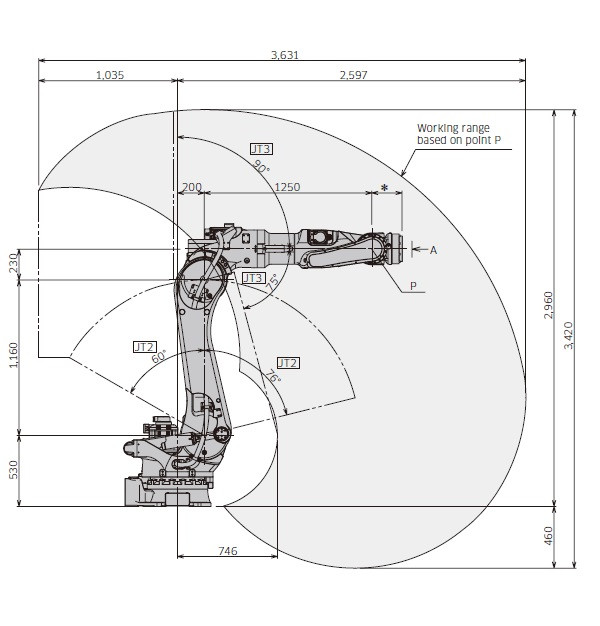

  • Working range 2597 mm

  • Load capacity 200 kg

Manufacturer
Reach
2597 mm
Payload
200 kg
Model
BX200L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model BX200L
Reach, mm 2597
Axes 6
Payload, kg 200
Repeatability mm, mm ± 0.06
Weight kg, kg 890
Controller E02
Motion range, °
J1 ± 160
J2 + 76/-60
J3 +90/-75
J4 ± 210
J5 ± 125
J6 ± 210
Maximum speed, °/s
J1 106
J2 90
J3 100
J4 120
J5 120
J6 200
