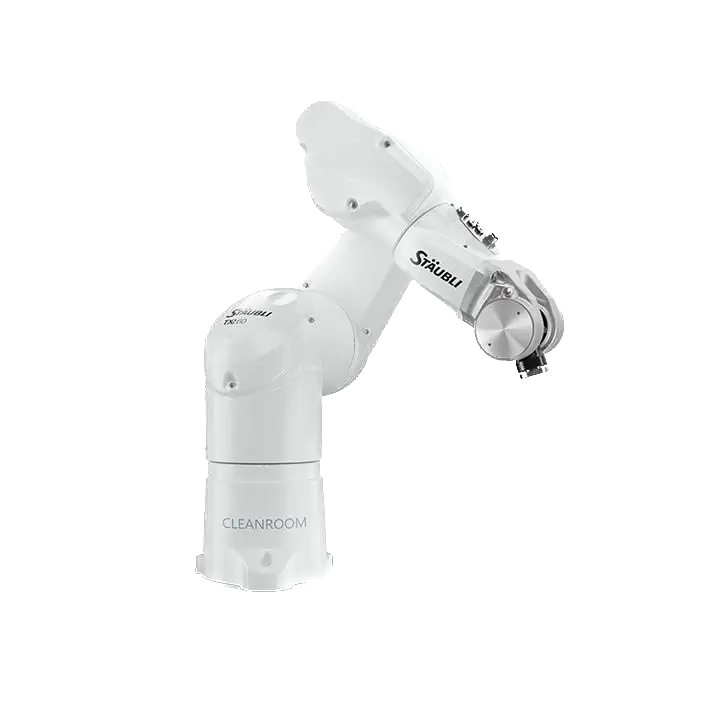

Industrial Robot Staubli TX2-60 CR/SCR
- Reach
- 670 mm
- Payload
- 4.5 kg
- Model
- TX2-60 CR/SCR
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Staubli |
| Model | TX2-60 CR/SCR |
| Country | Switzerland |
| Reach, mm | 670 |
| Axes | 6 |
| Payload, kg | 4.5 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 52.2 |
| Controller | CS9 |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| Axis 1 (A) | ± 180 |
| Axis 2 (B) | ± 127.5 |
| Axis 3 (C) | ± 142.5 |
| Axis 4 (D) | ± 270 |
| Axis 5 (E) | + 132.5/-121 |
| Axis 6 (F) | ± 270 |
| Maximum speed, °/s | |
|---|---|
| Axis 1 (A) | 435 |
| Axis 2 (B) | 410 |
| Axis 3 (C) | 540 |
| Axis 4 (D) | 995 |
| Axis 5 (E) | 1065 |
| Axis 6 (F) | 1445 |
| Protection | |
|---|---|
| Protection class according to EN 60529 | IP65/IP67 |
| Cleanroom standard ISO 14644-1 | 5 |
