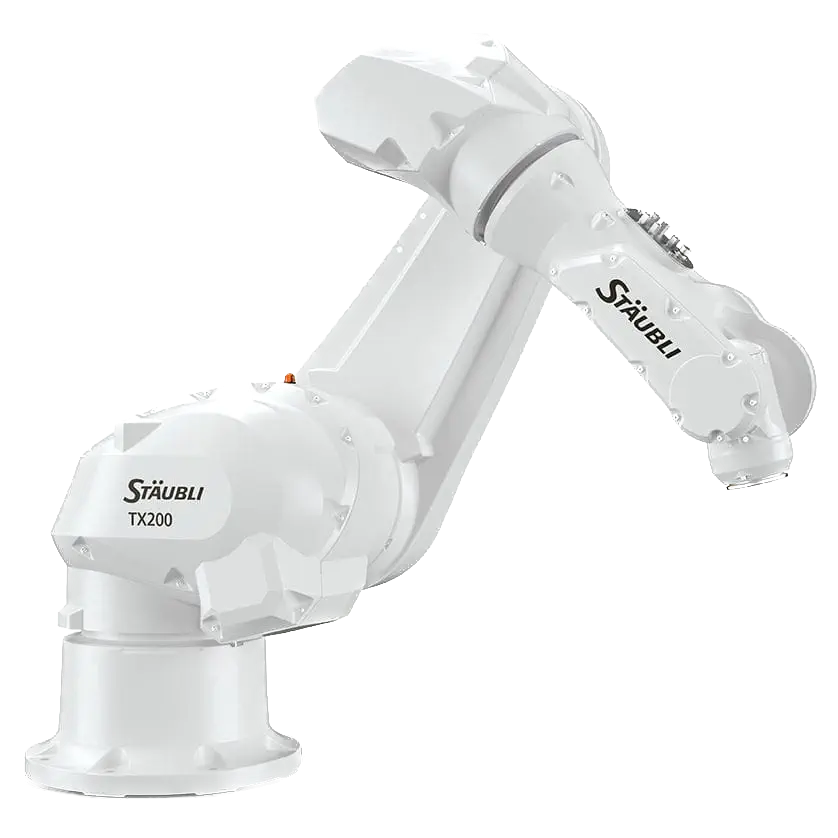

Industrial Robot Staubli TX2-200 CR/SCR

Reach: 2209 mm
Payload: 170 kg

Model: TX2-200 CR/SCR
Axes: 6

Industries

Production of consumer goods

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Staubli
Model	TX2-200 CR/SCR
Country	Switzerland
Reach, mm	2209
Axes	6

Payload, kg	170
Repeatability mm, mm	± 0.045
Weight kg, kg	980
Controller	CS9
Type	Articulated robot

Motion range, °
Axis 1 (A)	± 180
Axis 2 (B)	+ 120/- 115
Axis 3 (C)	+ 145/- 140
Axis 4 (D)	± 270
Axis 5 (E)	± 120
Axis 6 (F)	± 270

Maximum speed, °/s
Axis 1 (A)	160
Axis 2 (B)	160
Axis 3 (C)	165
Axis 4 (D)	260
Axis 5 (E)	360
Axis 6 (F)	450

Protection
Protection class according to EN 60529	IP65/IP67
Cleanroom standard ISO 14644-1	5
