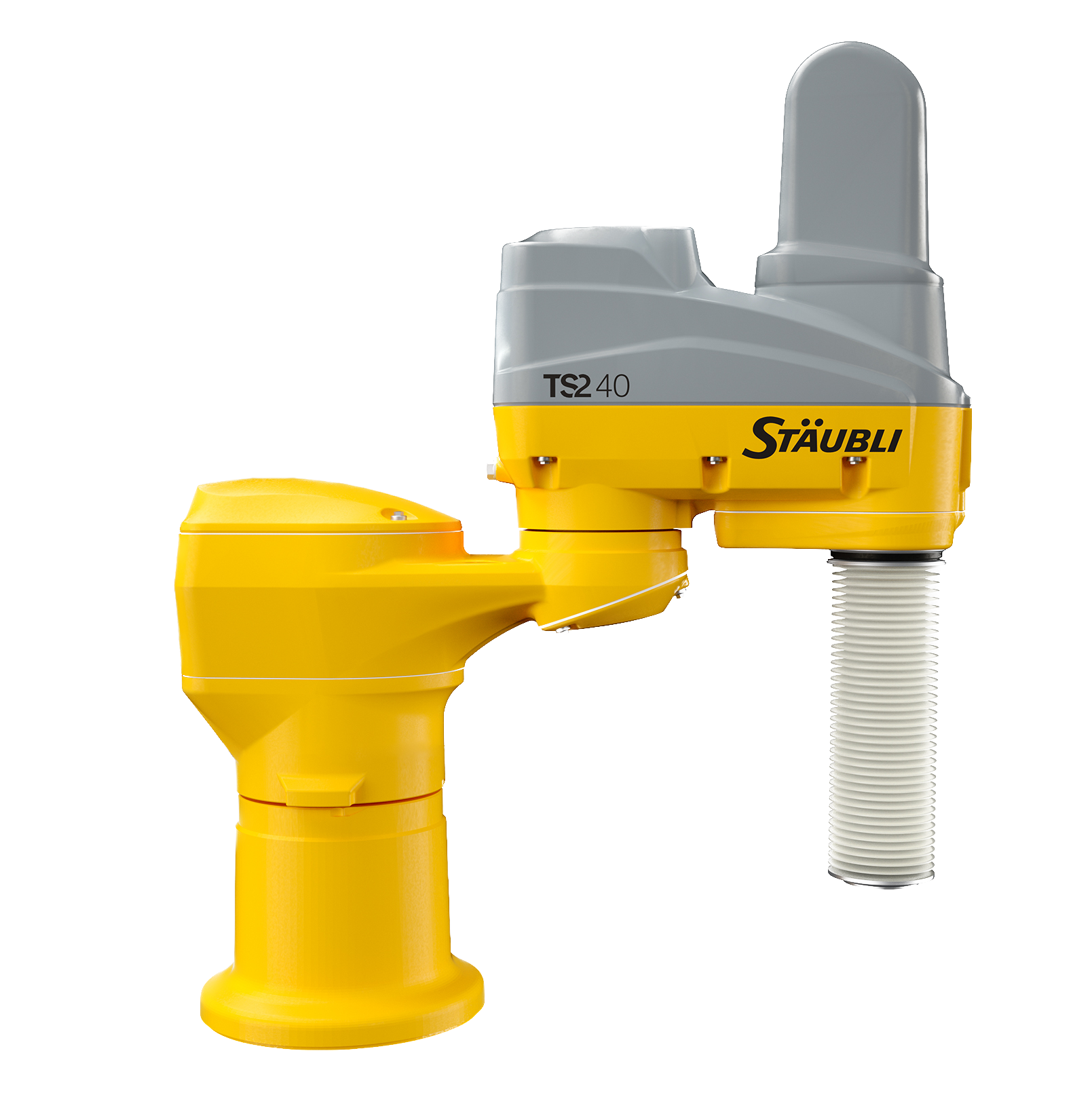

Industrial Robot Staubli TS2-40

Reach: 460 mm
Payload: 8.4 kg

Model: TS2-40
Axes: 4

Industries

Production of consumer goods

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Staubli
Model	TS2-40
Country	Switzerland
Reach, mm	460
Axes	4

Payload, kg	8.4
Repeatability mm, mm	± 0.01
Weight kg, kg	38
Controller	CS9
Type	SCARA

Motion range, °
Axis 1	360
Axis 2	283
Z Stroke	200mm or 400mm
Axis 4	1000

Maximum speed, °/s
Axis 1	550
Axis 2	720
Axis 3	2500mm/s
Axis 4	2500

Protection
Protection class according to EN 60529	IP34 standard / IP54 with ball screw cover / IP65 with ball screw cover and bellows
Cleanroom standard ISO 14644-1	Class ISO 6
