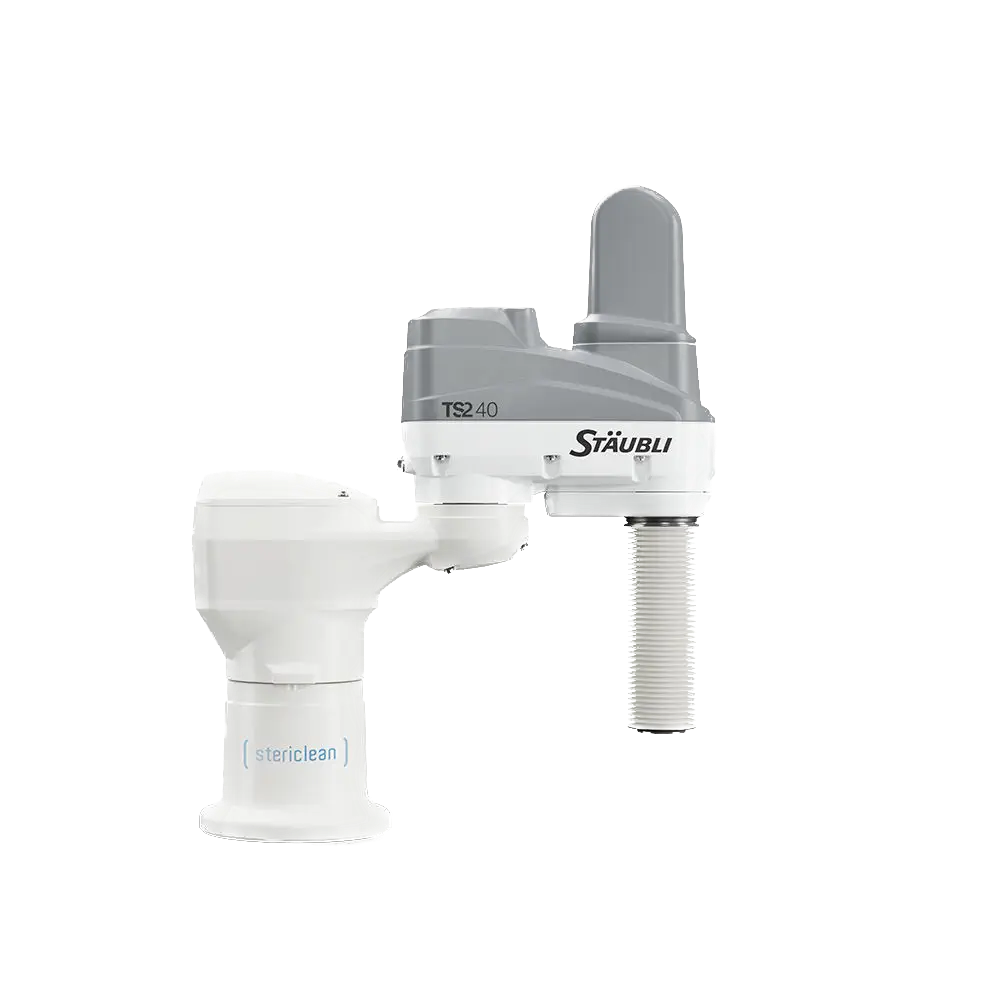

Industrial Robot Staubli TS2-40 Stericlean
- Reach
- 460 mm
- Payload
- 8.4 kg
- Model
- TS2-40 Stericlean
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | Staubli |
| Model | TS2-40 Stericlean |
| Country | Switzerland |
| Reach, mm | 460 |
| Axes | 4 |
| Payload, kg | 8.4 |
| Repeatability mm, mm | ± 0.01 |
| Weight kg, kg | 38 |
| Controller | CS9 |
| Type | SCARA |
| Motion range, ° | |
|---|---|
| Axis 1 | 360 |
| Axis 2 | 283 |
| Z Stroke | 200mm or 400mm |
| Axis 4 | 1000 |
| Maximum speed, °/s | |
|---|---|
| Axis 1 | 550 |
| Axis 2 | 720 |
| Axis 3 | 2500mm/s |
| Axis 4 | 2500 |
| Protection | |
|---|---|
| Protection class according to EN 60529 | IP34 standard / IP54 with ball screw cover / IP65 with ball screw cover and bellows |
| Cleanroom standard ISO 14644-1 | Class ISO 6 |
