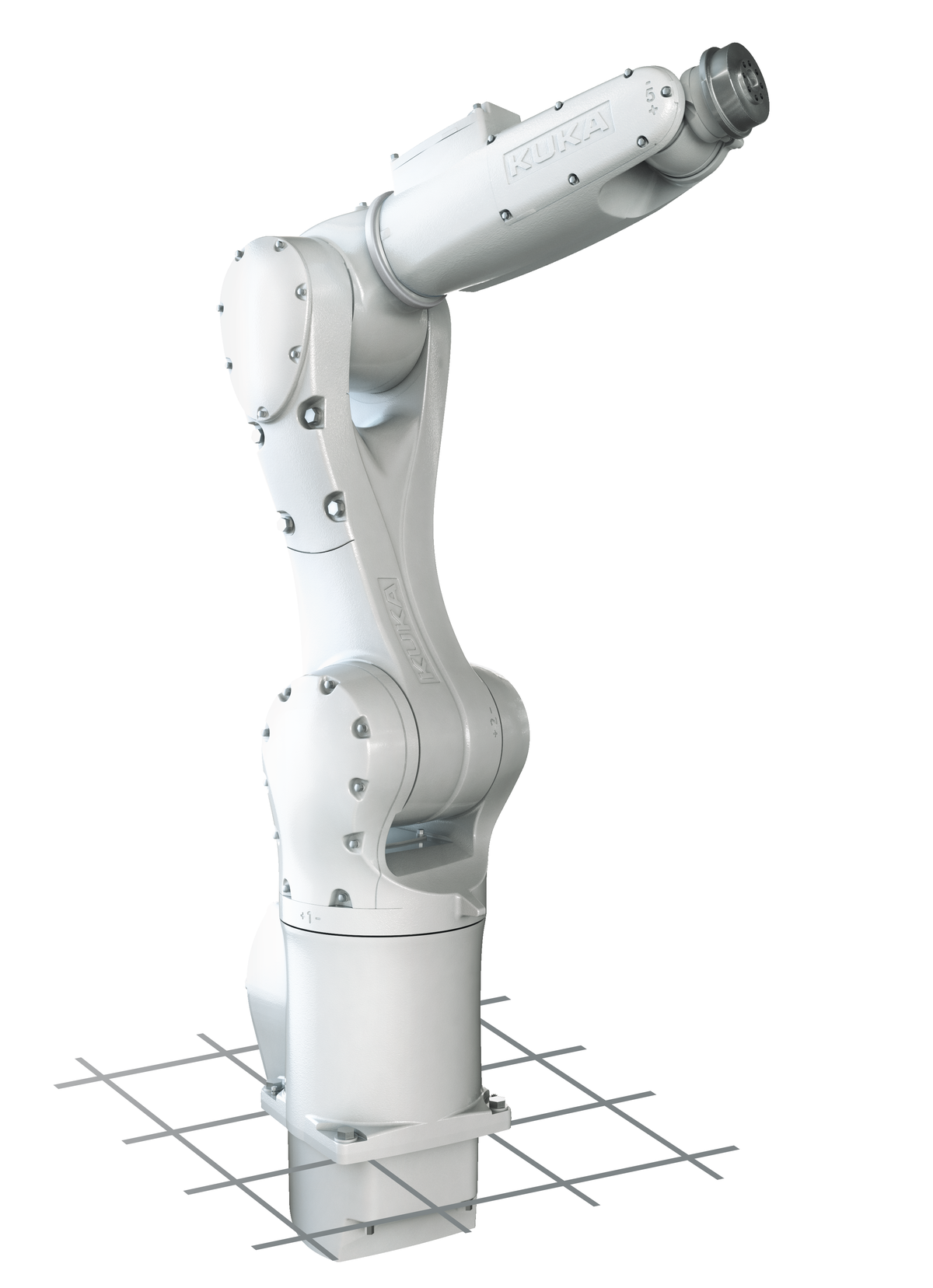

Industrial robot KUKA KR 6 R700 HM-SC

KR 6 R700-2 (AGILUS) is an economical and reliable 6-axis industrial robot from KUKA, and also one of the fastest in its class. The robot is ideal for projects that require minimal operation time with maximum productivity, for the production of small parts, gripping and placement, soldering, gluing, packaging, testing and other operations. The KR 6 AGILUS R700-2 is a reliable automation solution that will ultimately help you save money in many areas, including reduced maintenance costs.

The KR 6 AGILUS R700 is available in various versions:

  • KR 6 R700 CR - for clean rooms
  • KR 6 R700 HM-SC
  • KR 6 R700 WP

Features:

  • Compact design

  • 726 mm radius

  • High repeatability

  • 6 kg load capacity

  • Ability to work in confined spaces

Manufacturer
Reach
706.7 mm
Payload
6 kg
Model
KR 6 R700 HM-SC
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 6 R700 HM-SC
Country Germany
Reach, mm 706.7
Axes 6
Payload, kg 6
Repeatability mm, mm ± 0.03
Weight kg, kg 60
Controller KR C4 compact
Type Articulated

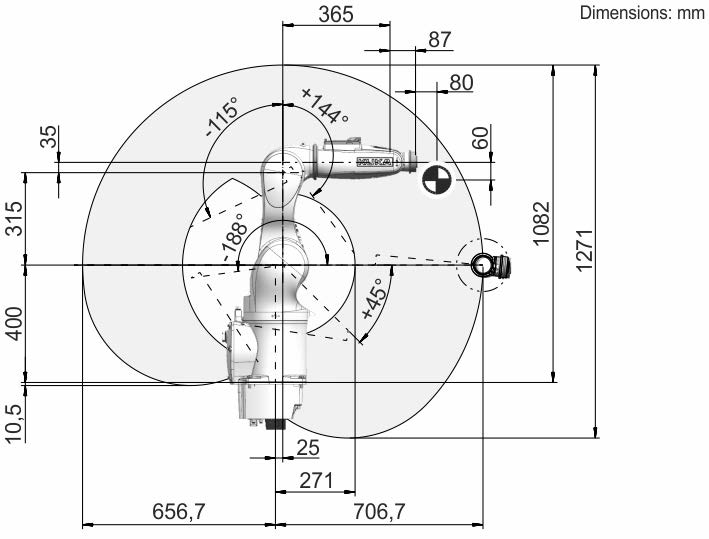

Motion range, °
A1 ± 166
A2 -188/45
A3 -115/144
A4 ± 185
A5 ± 110
A6 ± 350
Protection
Protection rating (IEC 60529) IP65/IP67
Protection rating, robot wrist (IEC 60529) IP65/IP67
