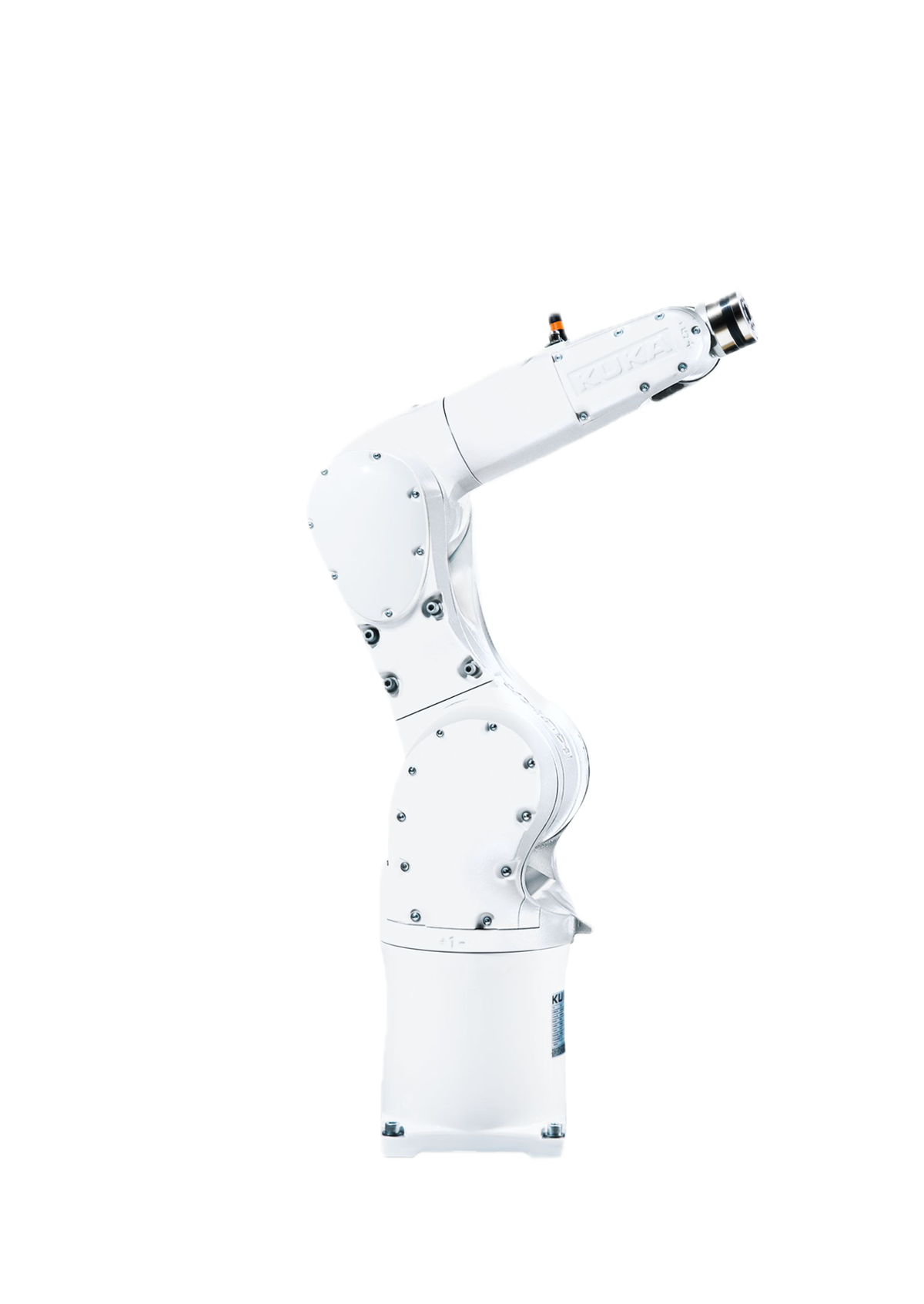

Industrial robot KUKA KR 6 R700 CR

KR 6 R700-2 (AGILUS) is an economical and reliable 6-axis industrial robot from KUKA, and also one of the fastest in its class. The robot is ideal for projects that require minimal operation time with maximum productivity, for the production of small parts, gripping and placement, soldering, gluing, packaging, testing and other operations. The KR 6 AGILUS R700-2 is a reliable automation solution that will ultimately help you save money in many areas, including reduced maintenance costs.

The KR 6 AGILUS R700 is available in various versions:

  • KR 6 R700 CR - for clean rooms
  • KR 6 R700 HM-SC
  • KR 6 R700 WP

Features:

  • Compact design

  • 726 mm radius

  • High repeatability

  • 6 kg load capacity

  • Ability to work in confined spaces

Manufacturer
Reach
706.7 mm
Payload
6 kg
Model
KR 6 R700 CR
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 6 R700 CR
Country Germany
Reach, mm 706.7
Axes 6
Payload, kg 6
Repeatability mm, mm ± 0.03
Weight kg, kg 50
Controller KR C5 micro; KR C4 compact
Type Articulated

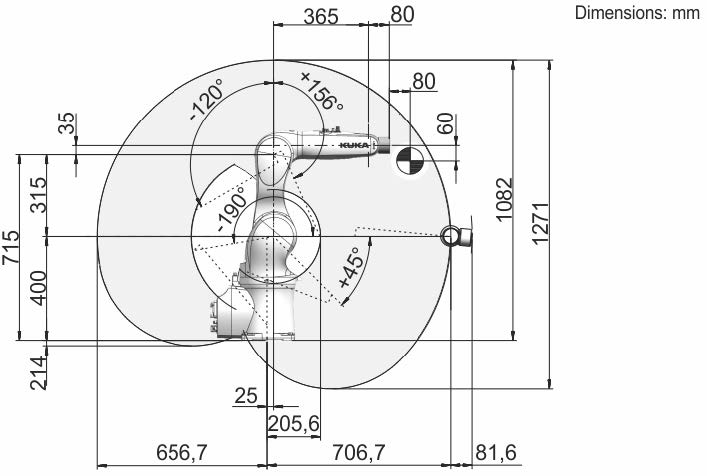

Motion range, °
A1 ± 170
A2 -190/45
A3 -120/156
A4 ± 185
A5 ± 120
A6 ± 350
Protection
Protection rating (IEC 60529) IP54
Protection rating, robot wrist (IEC 60529) IP54
