Industrial robot KUKA KR 6 R700-2

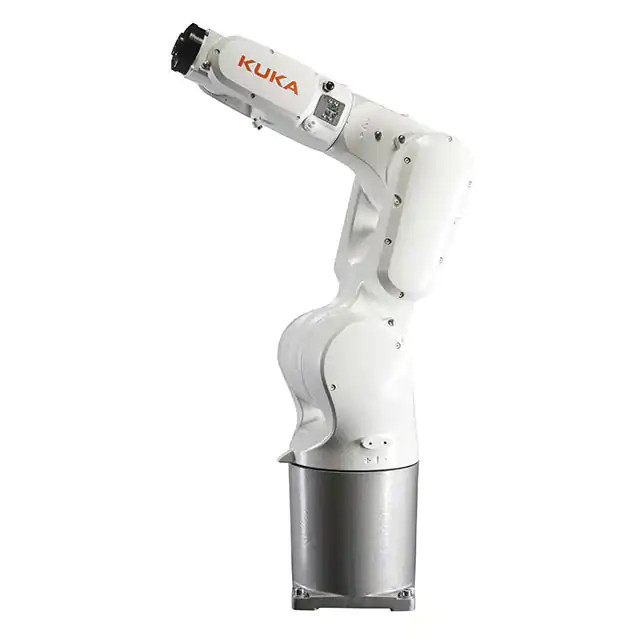

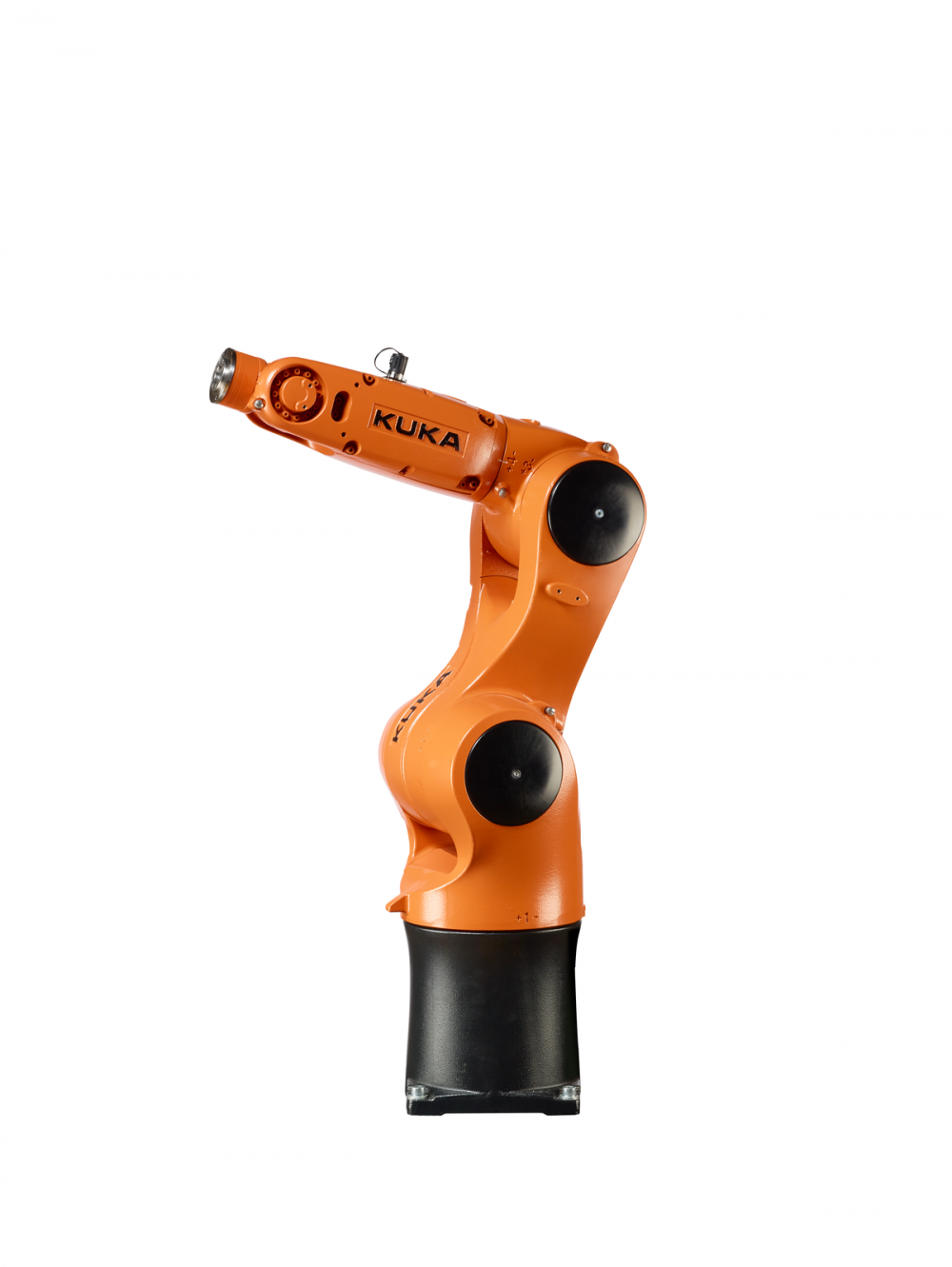

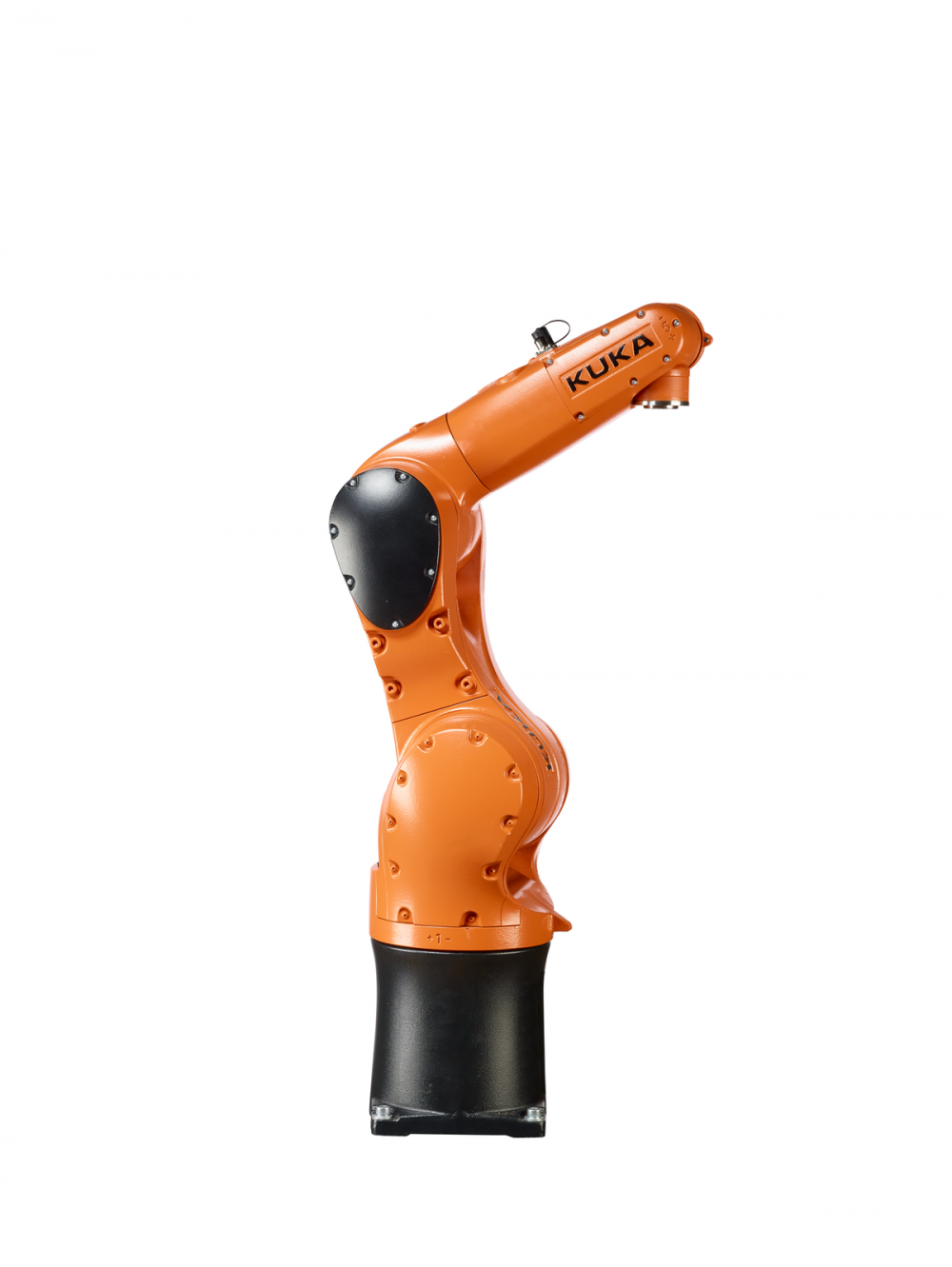

KR 6 R700-2 (AGILUS) is an economical and reliable 6-axis industrial robot from KUKA, and also one of the fastest in its class. The robot is ideal for projects that require minimal operation time with maximum productivity, for the production of small parts, gripping and placement, soldering, gluing, packaging, testing and other operations. The KR 6 AGILUS R700-2 is a reliable automation solution that will ultimately help you save money in many areas, including reduced maintenance costs.
The KR 6 AGILUS R700 is available in various versions:
- KR 6 R700 CR - for clean rooms
- KR 6 R700 HM-SC
- KR 6 R700 WP
Features:
Compact design
726 mm radius
High repeatability
6 kg load capacity
Ability to work in confined spaces
- Manufacturer
- Reach
- 726 mm
- Payload
- 6 kg
- Model
- KR 6 R700-2
- Axes
- 6
- Solutions
Specifications
Manufacturer | KUKA |
Model | KR 6 R700-2 |
Reach, mm | 726 |
Axes | 6 |
Payload, kg | 6 |
Repeatability mm, mm | ± 0.02 |
Weight kg, kg | 53 |
Controller | KUKA KR C4 Controller |
Motion range, ° | |
---|---|
J1 | ± 170 |
J2 | -190/45 |
J3 | -120/156 |
J4 | ± 185 |
J5 | ± 120 |
J6 | ± 350 |
