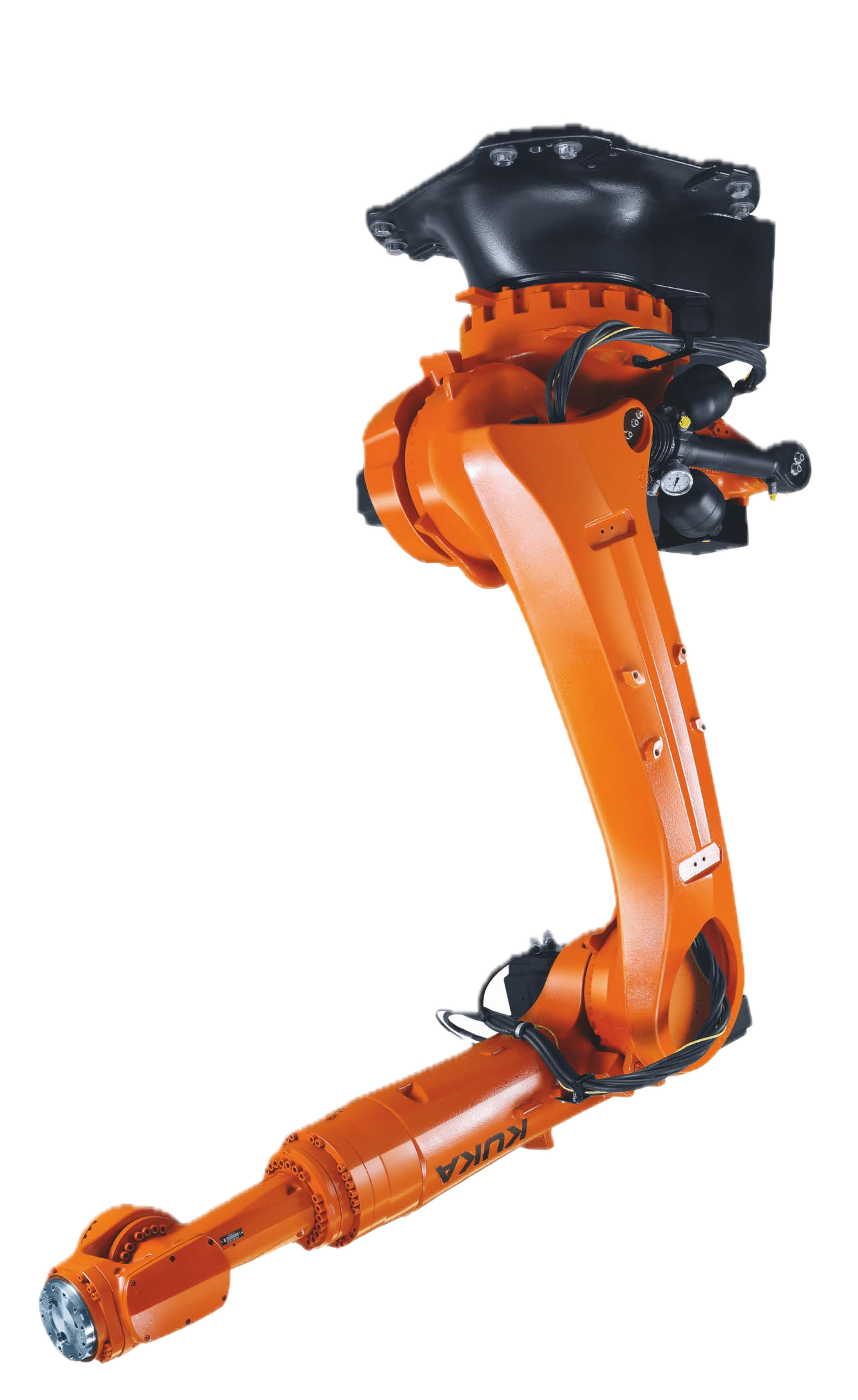

Industrial robot KUKA KR 300 R2700-2 C
KR 300 R2700-2 - 6-axis universal industrial robot with a large work area from KUKA from the KR QUANTEC series, capable of ensuring maximum quality and flexibility in the production process. KR 300 R2700-2 is ideal for handling loads up to 300 kg, assembly, welding and palletizing.
Features:
Hollow design
Large working radius of 2700 mm
High positioning accuracy
Ability to work in limited spaces
- Manufacturer
-
- Reach
- 2671 mm
- Payload
- 300 kg
- Model
- KR 300 R2700-2 C
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 300 R2700-2 C |
| Country | Germany |
| Reach, mm | 2671 |
| Axes | 6 |
| Payload, kg | 300 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 1105 |
| Controller | KR C5; KR C4 |
| Type | Articulated |

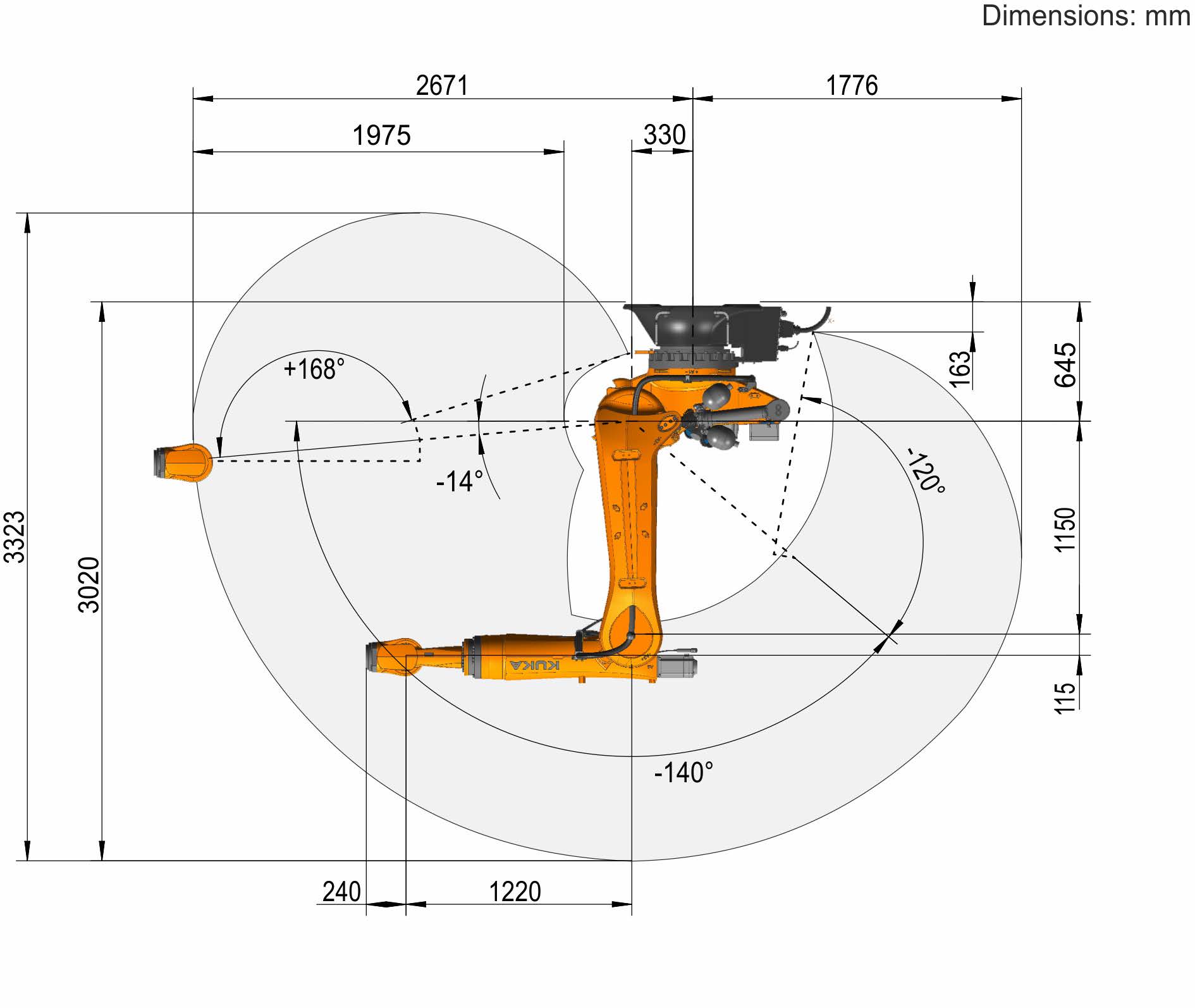

| Motion range, ° | |
|---|---|
| A1 | ±185 |
| A2 | -140/-14 |
| A3 | -120/168 |
| A4 | ±350 |
| A5 | ±122.5 |
| A6 | ±350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 105 |
| A2 | 101 |
| A3 | 107 |
| A4 | 140 |
| A5 | 113 |
| A6 | 180 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP65 |
| Protection rating, robot wrist (IEC 60529) | IP65/IP67 |
