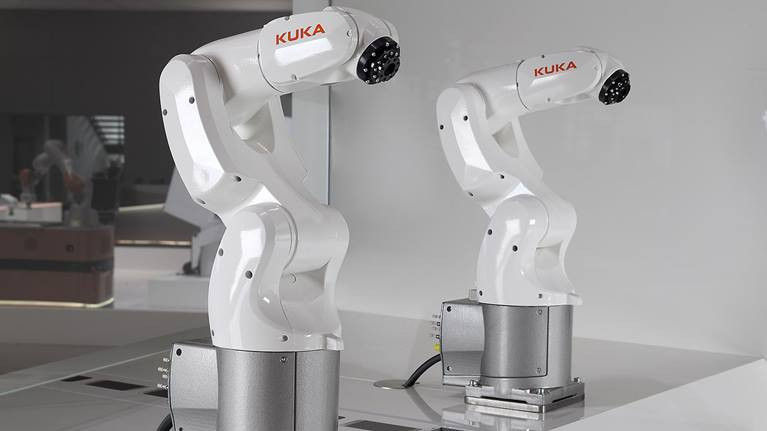

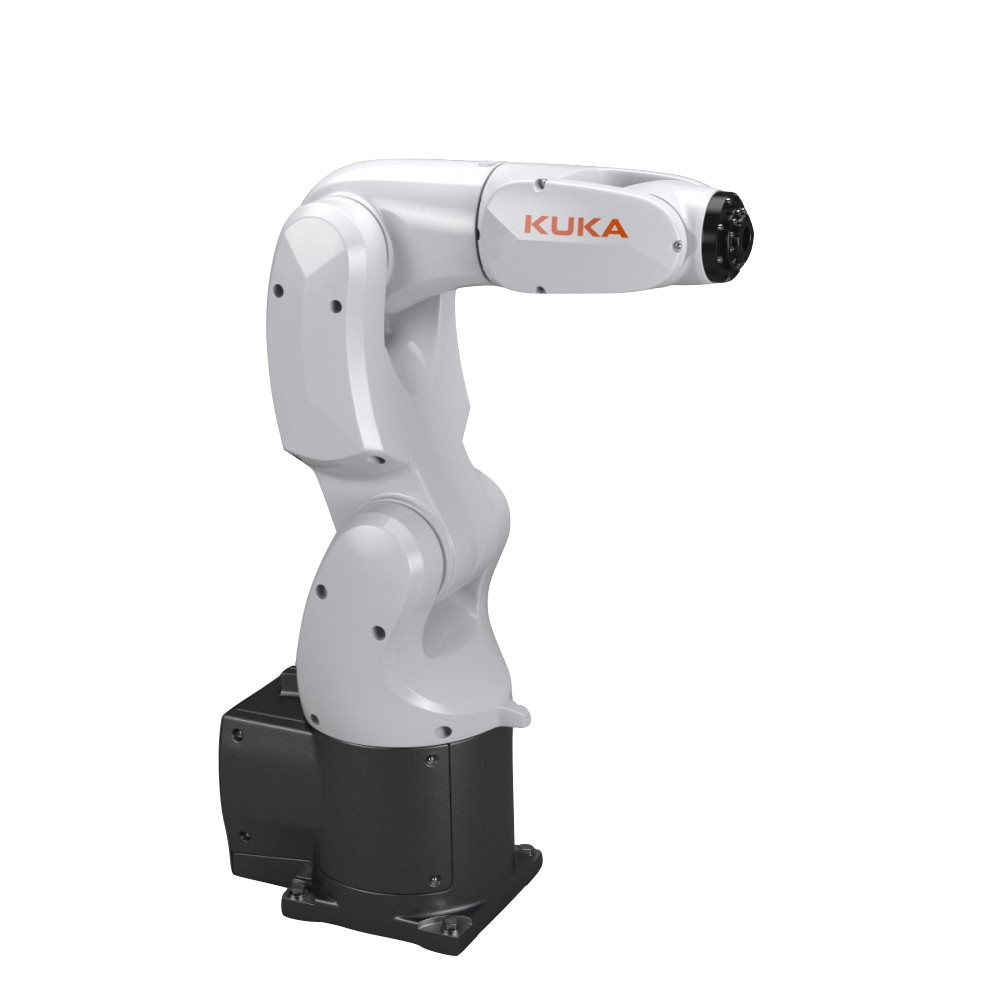

Industrial robot KUKA KR 3 R540

KR 3 R540 (AGILUS) is an economical and reliable robot, as well as one of the fastest in its class. The robot is ideal for projects that require minimal operation time with maximum productivity, for the production of small parts, pick and place, soldering, gluing, packaging, testing and other operations. KR 3 AGILUS is a reliable automation solution that will ultimately help you save money in many areas, including reduced maintenance costs.

Features:

  • Compact design

  • 541 mm radius

  • High repeatability

  • Load capacity 3 kg

  • Ability to work in confined spaces

Manufacturer
Reach
541 mm
Payload
3 kg
Model
KR 3 R540
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 3 R540
Reach, mm 541
Axes 6
Payload, kg 3
Repeatability mm, mm ± 0.02
Weight kg, kg 26,5
Controller KUKA KR C4 Controller
Motion range, °
J1 340 (370)
J2 235
J3 455
J4 380
J5 360
J6 900
Maximum speed, °/s
J1 260
J2 240
J3 260
J4 430
J5 450
J6 720
