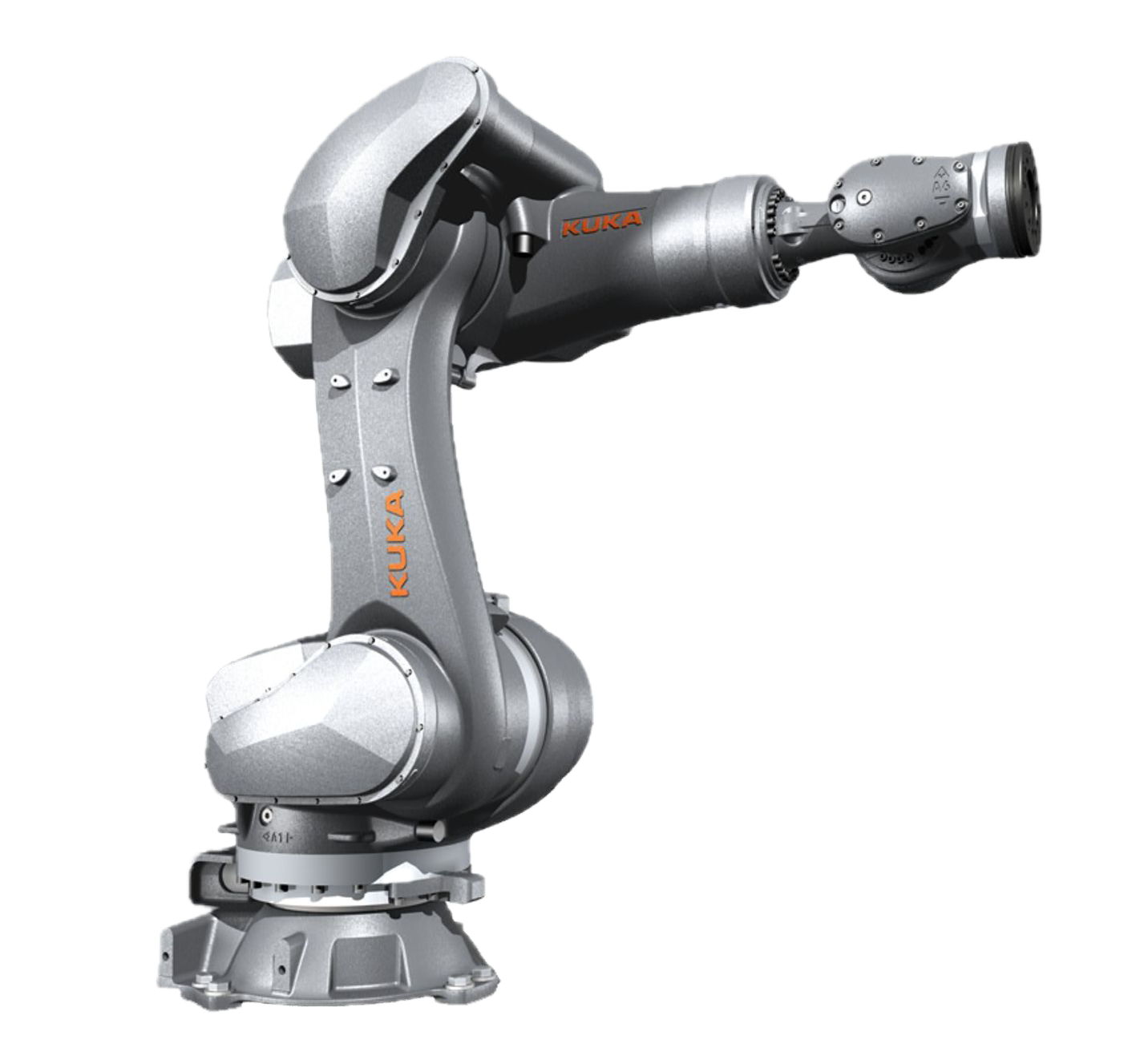

Industrial robot KUKA KR 180 R2100 nano F exclusive
KR 160 R1570 nano is a reliable and fast 6-axis industrial robot from KUKA of the KR QUANTEC nano series, which will increase your productivity due to its speed, precision, high payload of 160 kg and large working range of 1573 mm.
Features:
Compact design
Reach 1573 mm
High load capacity 160 kg
- Manufacturer
-
- Reach
- 2100 mm
- Payload
- 180 kg
- Model
- KR 180 R2100 nano F exclusive
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 180 R2100 nano F exclusive |
| Country | Germany |
| Reach, mm | 2100 |
| Axes | 6 |
| Payload, kg | 180 |
| Repeatability mm, mm | ± 0.06 |
| Weight kg, kg | 998 |
| Controller | KR C5; KR C4 |
| Type | Articulated |

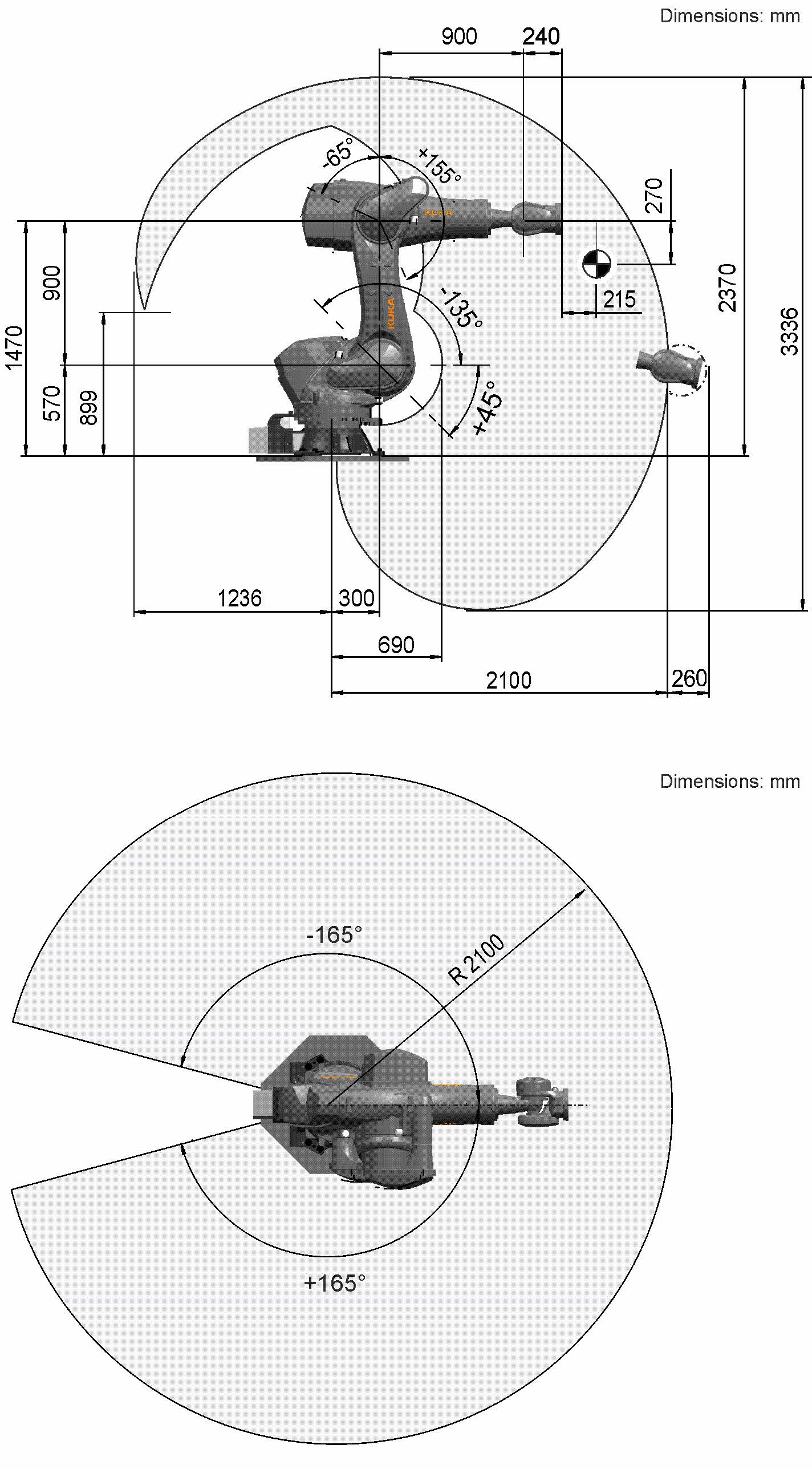

| Motion range, ° | |
|---|---|
| A1 | ± 165 |
| A2 | - 135/45 |
| A3 | - 65/155 |
| A4 | ± 350 |
| A5 | ± 120 |
| A6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 136 |
| A2 | 95 |
| A3 | 120 |
| A4 | 179 |
| A5 | 172 |
| A6 | 219 |
| Protection | |
|---|---|
| Protection rating (IEC 60529)Protection rating (IEC 60529) | IP65/IP67/IP69 |
| Protection rating, robot wrist (IEC 60529) | IP65/IP67/IP69 |
