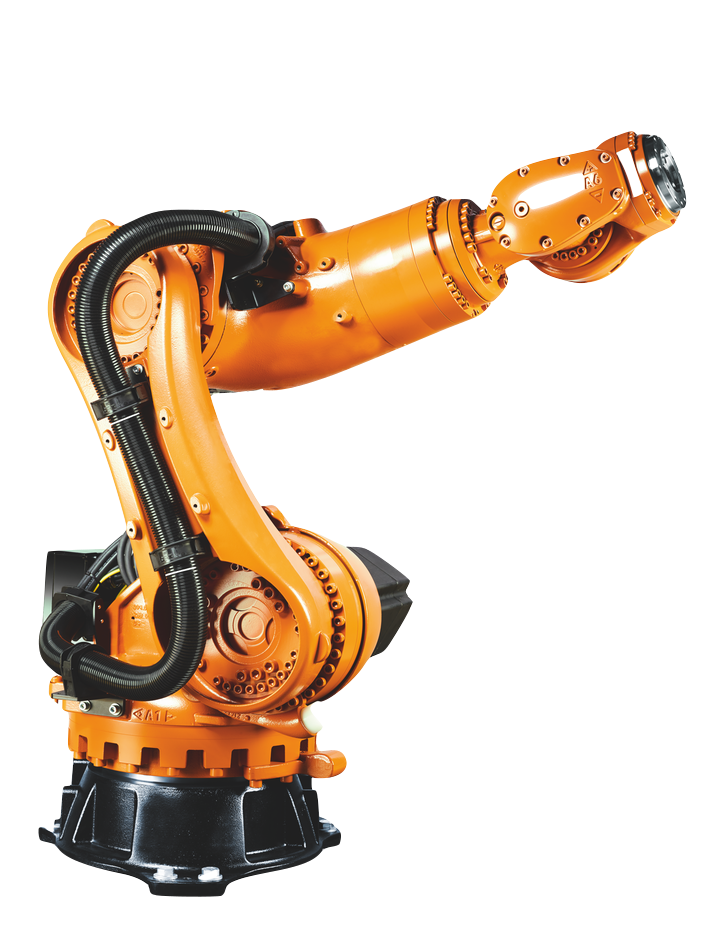

Industrial robot KUKA KR 160 R1570 nano
- Manufacturer
-
- Reach
- 1573 mm
- Payload
- 160 kg
- Model
- KR 160 R1570 nano
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 160 R1570 nano |
| Reach, mm | 1573 |
| Axes | 6 |
| Payload, kg | 160 |
| Repeatability mm, mm | ± 0.06 |
| Weight kg, kg | 677 |
| Controller | KUKA KR C4 Controller |
| Motion range, ° | |
|---|---|
| J1 | ±180 |
| J2 | -145/45 |
| J3 | -130/145 |
| J4 | ±350 |
| J5 | ±120 |
| J6 | ±350 |
| Maximum speed, °/s | |
|---|---|
| J1 | 123 |
| J2 | 114 |
| J3 | 86 |
| J4 | 179 |
| J5 | 172 |
| J6 | 220 |
