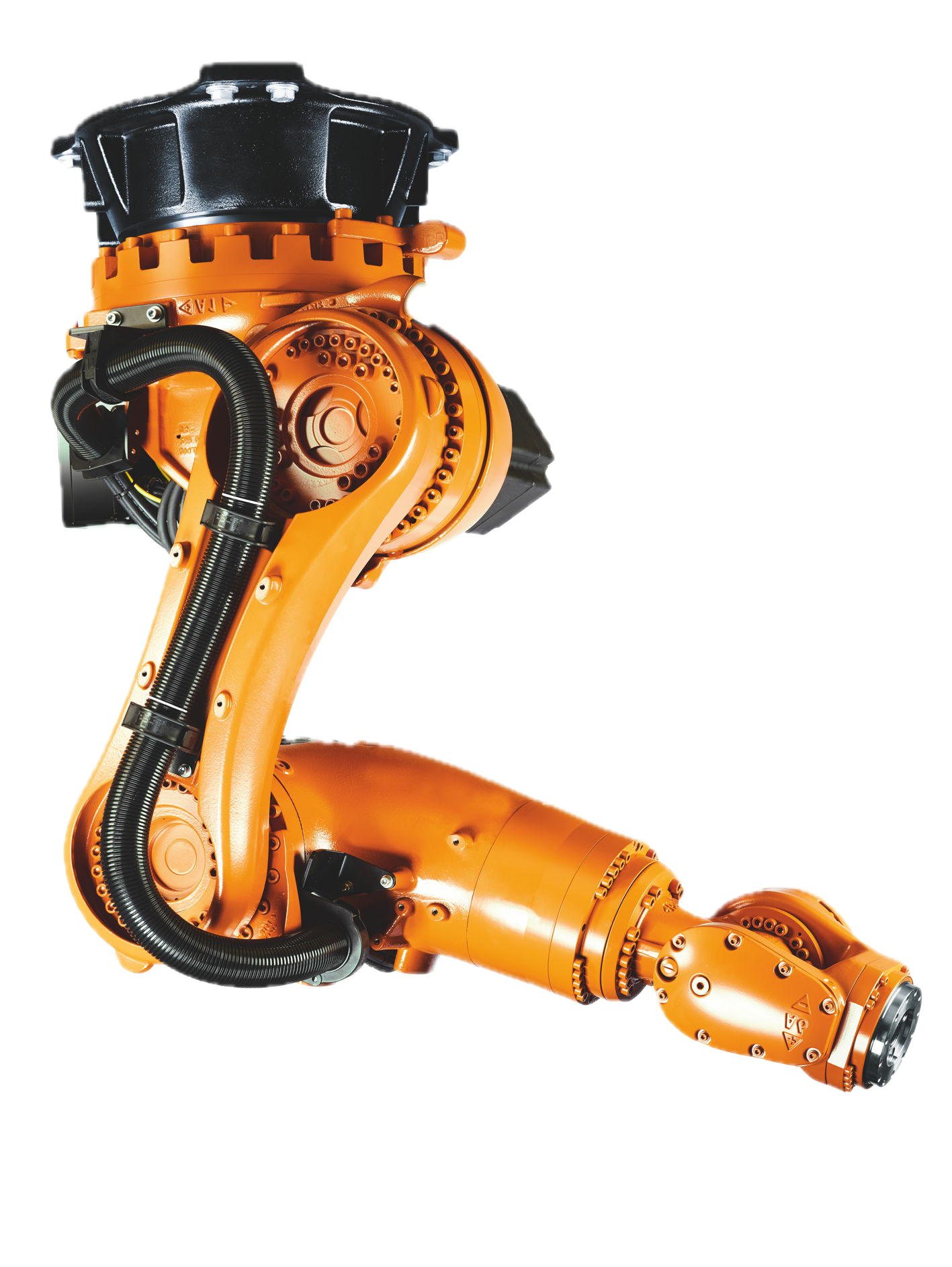

Industrial robot KUKA KR 160 R1570 nano C

KR 160 R1570 nano is a reliable and fast 6-axis industrial robot from KUKA of the KR QUANTEC nano series, which will increase your productivity due to its speed, precision, high payload of 160 kg and large working range of 1573 mm.

Features:

Compact design
Reach 1573 mm
High load capacity 160 kg

Manufacturer

Reach: 1573 mm
Payload: 160 kg

Model: KR 160 R1570 nano C
Axes: 6

Solutions

Palletizing
Assembly
Welding
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	KUKA
Model	KR 160 R1570 nano C
Country	Germany
Reach, mm	1573
Axes	6

Payload, kg	160
Repeatability mm, mm	± 0.06
Weight kg, kg	677
Controller	KR C4
Type	Articulated

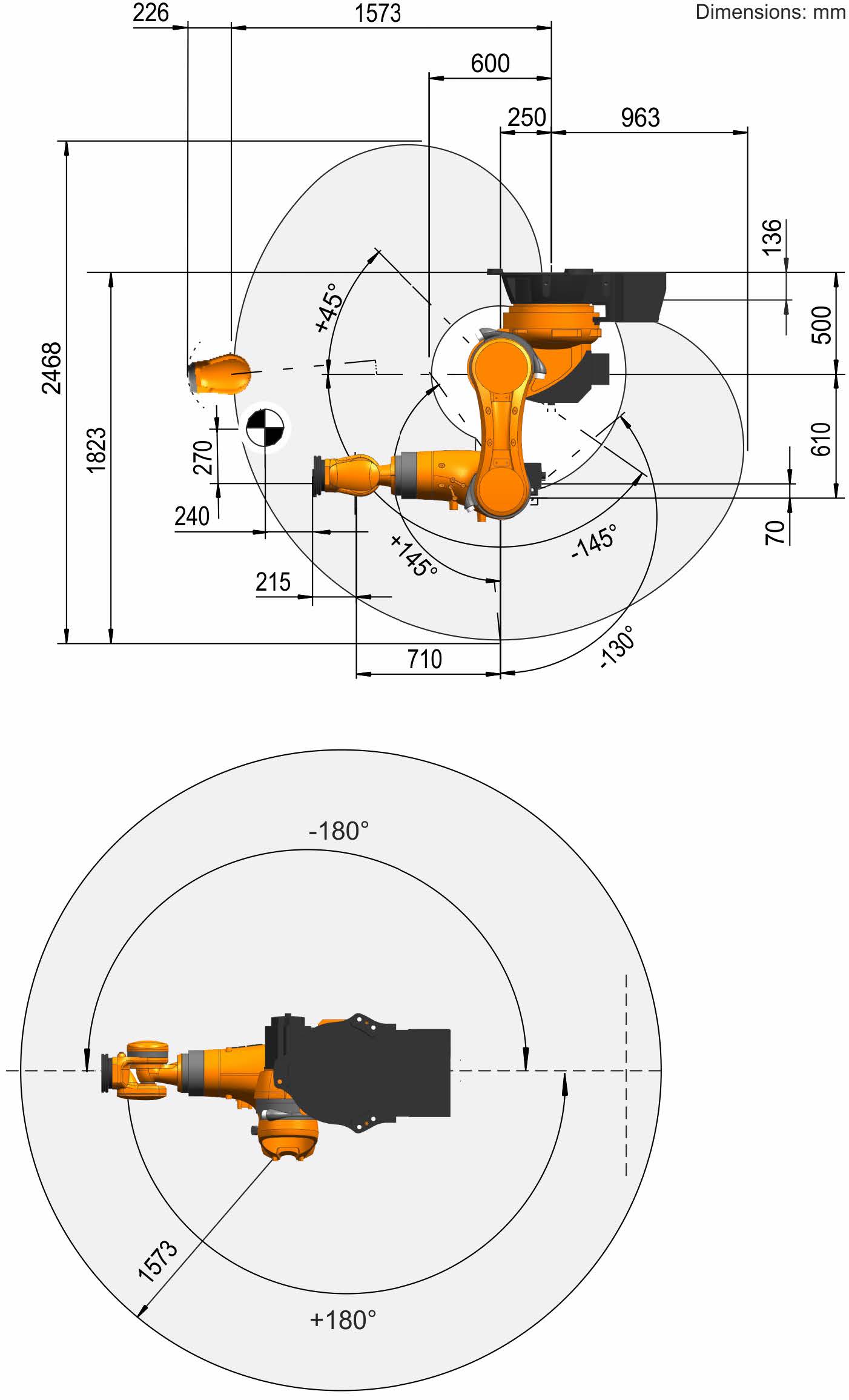

Motion range, °
A1	± 180
A2	- 145/45
A3	- 130/145
A4	± 350
A5	± 120
A6	± 350

Maximum speed, °/s
A1	123
A2	114
A3	86
A4	179
A5	172
A6	220

Protection
Protection rating (IEC 60529)Protection rating (IEC 60529)	IP65
Protection rating, robot wrist (IEC 60529)	IP65
