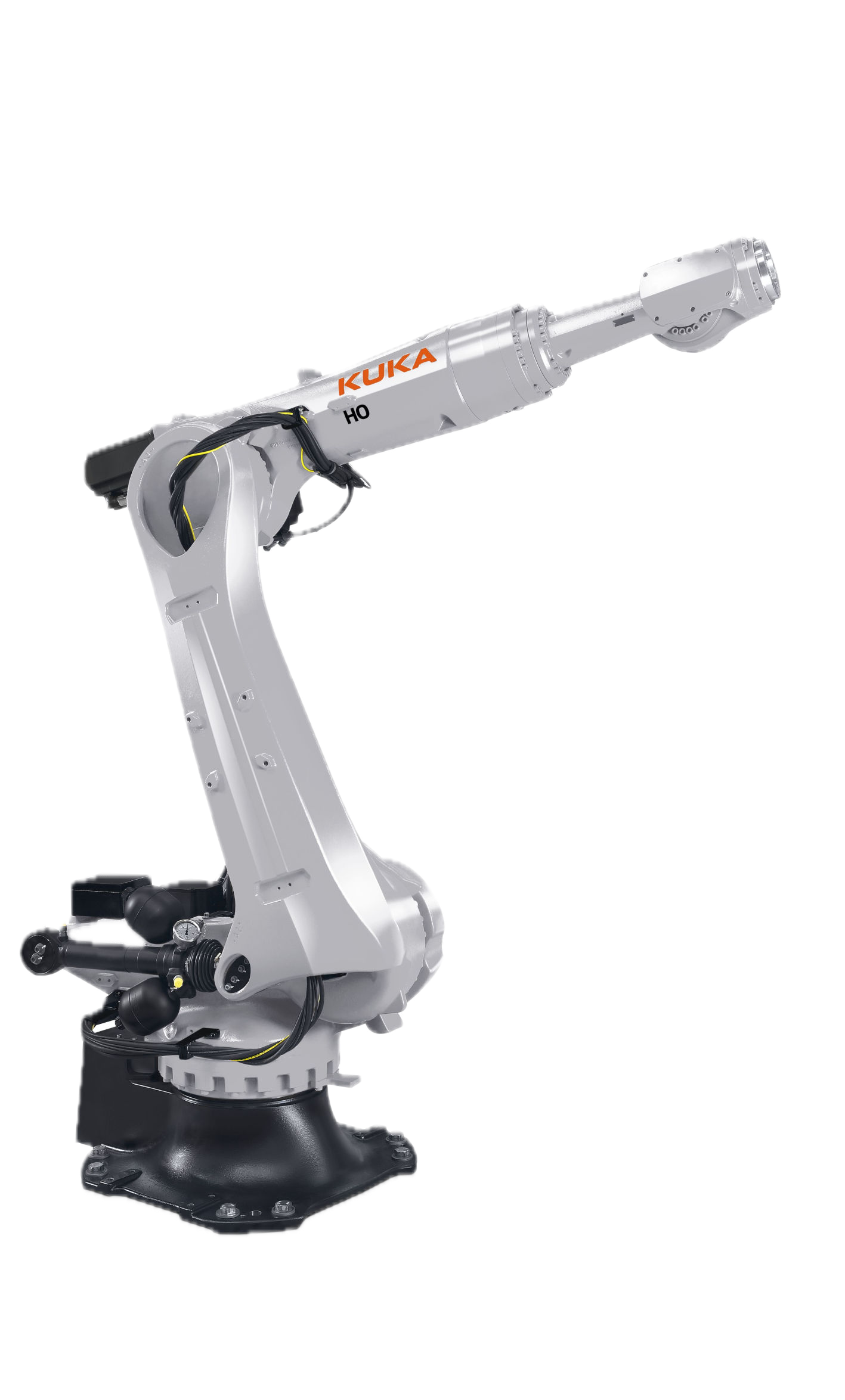

Industrial robot KUKA KR 120 R2700-2 HO
KR 120 R2700-2 - 6-axis universal industrial robot from KUKA from the KR QUANTEC series, capable of ensuring maximum quality and flexibility of the production process. KR 120 R2700-2 is ideal for handling loads up to 120 kg, assembly, welding and palletizing.
Features:
Hollow design
Large working radius of 2701 mm
High positioning accuracy
Ability to work in limited spaces
- Manufacturer
-
- Reach
- 2701 mm
- Payload
- 120 kg
- Model
- KR 120 R2700-2 HO
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 120 R2700-2 HO |
| Country | Germany |
| Reach, mm | 2701 |
| Axes | 6 |
| Payload, kg | 120 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 1069 |
| Controller | KR C5; KR C4 |
| Type | Articulated |
| Motion range, ° | |
|---|---|
| A1 | ±185 |
| A2 | -140/-5 |
| A3 | -120/168 |
| A4 | ±350 |
| A5 | ±125 |
| A6 | ±350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 120 |
| A2 | 115 |
| A3 | 120 |
| A4 | 190 |
| A5 | 180 |
| A6 | 260 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP65 |
| Protection rating, robot wrist (IEC 60529) | IP65/IP67 |
