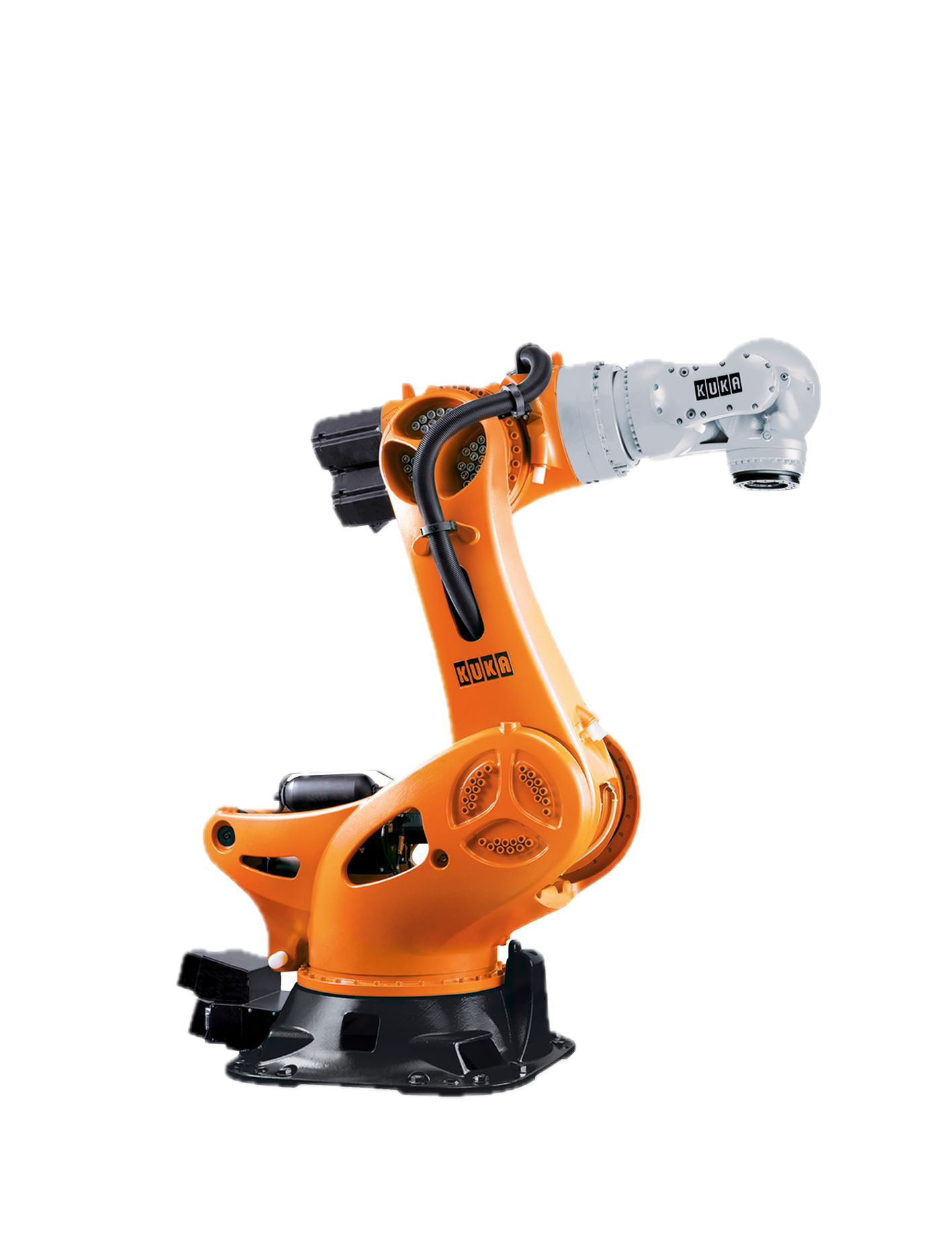

Industrial robot KUKA KR 1000 1300 titan PA-F
KR 1000 L750 titan is a versatile and heavy-duty 6-axis industrial robot from KUKA of the KR 1000 titan series. KUKA KR 1000 L750 titan is capable of handling loads up to 750 kg in a working range of 3601 mm. The robot is suitable for a wide range of tasks from welding to palletizing and assembly.
Features:
Hollow design
3601 mm radius
High repeatability
Load capacity 750 kg
- Manufacturer
-
- Reach
- 3202 mm
- Payload
- 1300 kg
- Model
- KR 1000 1300 titan PA-F
- Axes
- 4
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 1000 1300 titan PA-F |
| Country | Germany |
| Reach, mm | 3202 |
| Axes | 4 |
| Payload, kg | 1300 |
| Repeatability mm, mm | ± 0.1 |
| Weight kg, kg | 4690 |
| Controller | KR C5; KR C4 |
| Type | Palletizing |

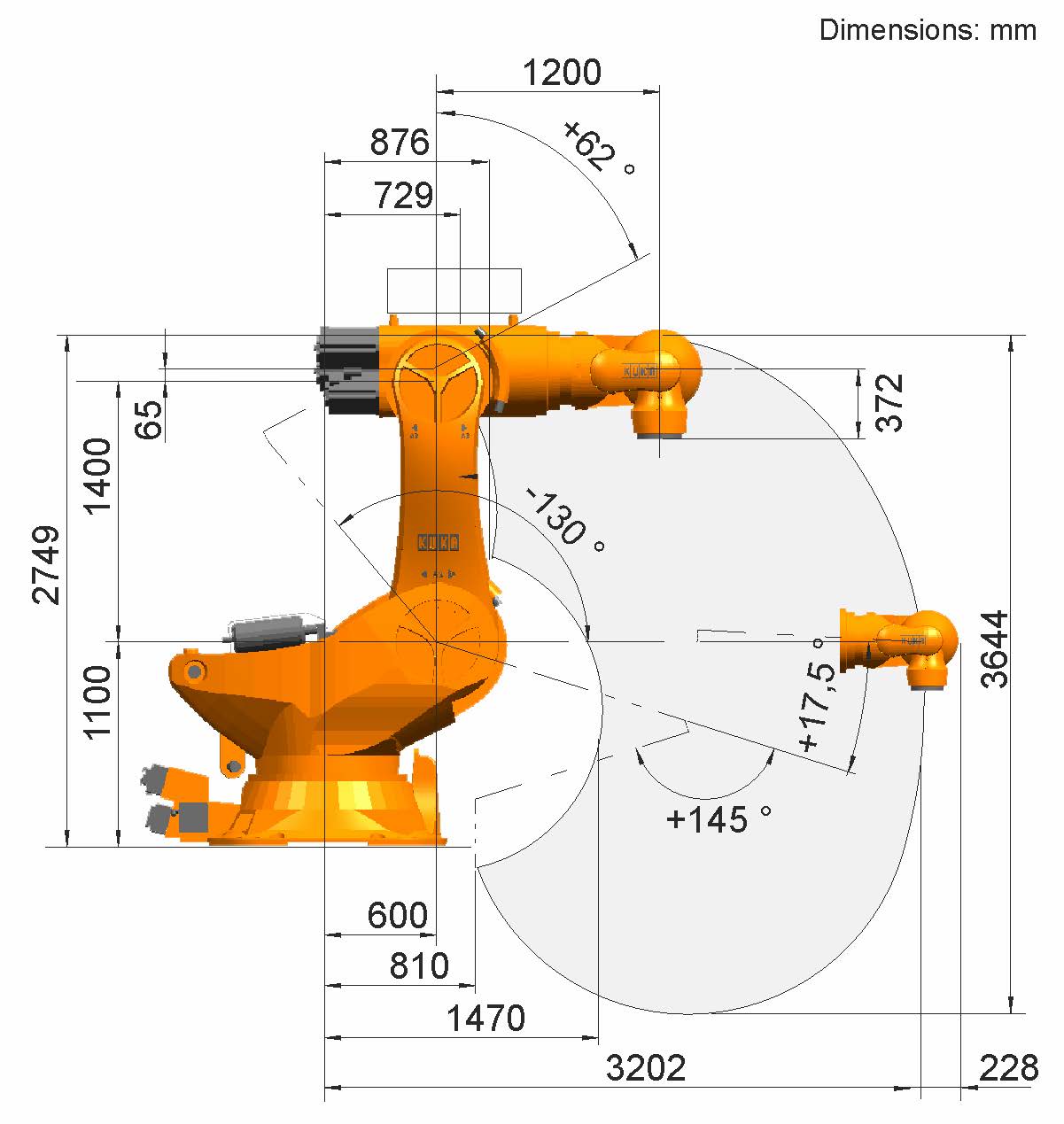

| Motion range, ° | |
|---|---|
| A1 | ± 150 |
| A2 | - 130/17,5 |
| A3 | 62/145 |
| A4 | - |
| A5 | ± 118 |
| A6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 58 |
| A2 | 50 |
| A3 | 50 |
| A4 | - |
| A5 | 60 |
| A6 | 72 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP65 |
| Protection rating, robot wrist (IEC 60529) | IP67 |
