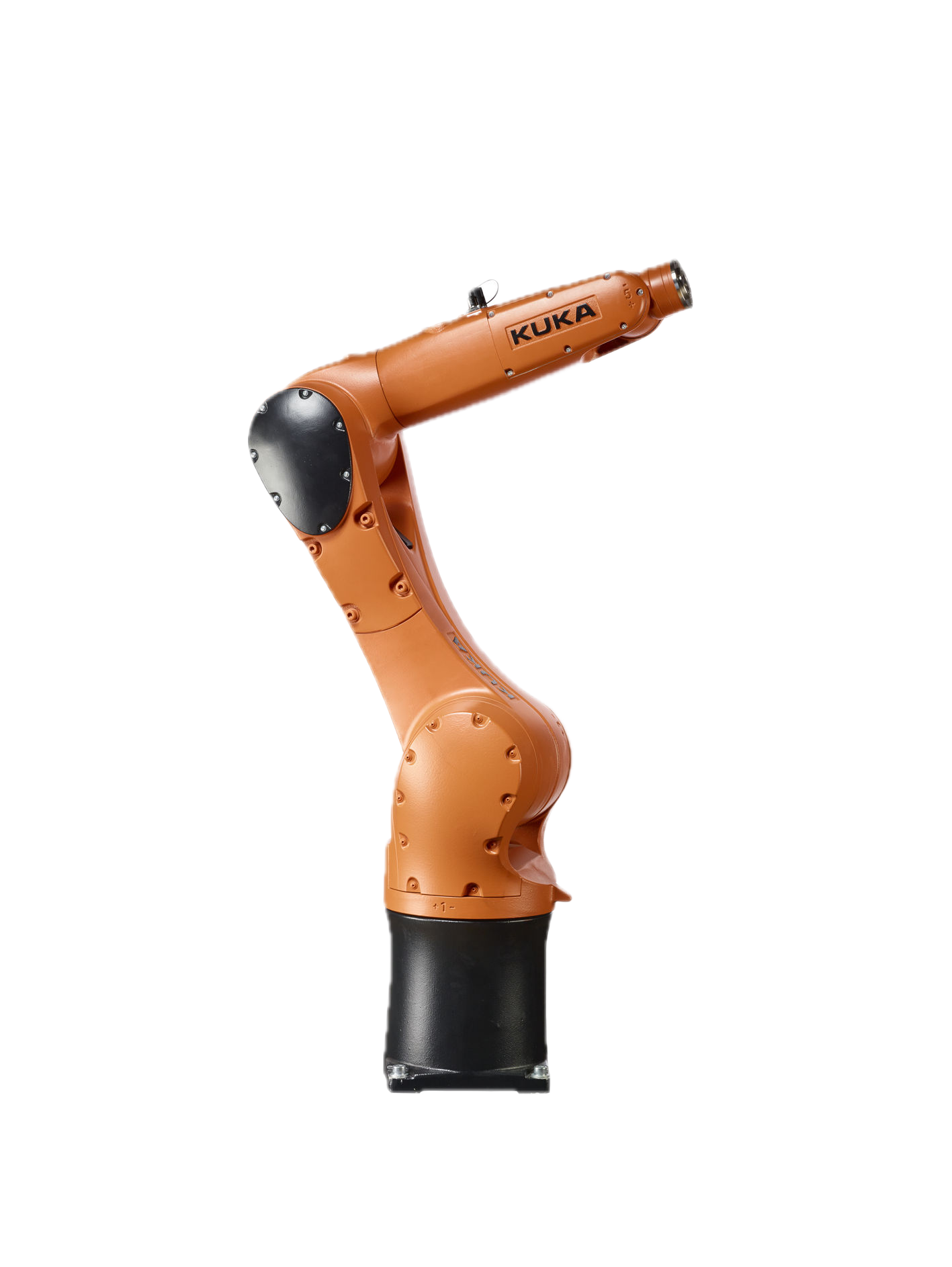

Industrial robot KUKA KR 10 R900 WP

KR 6 R900-2 (AGILUS) is an economical and reliable 6-axis industrial robot from KUKA, and also one of the fastest in its class. The robot is ideal for projects that require minimal operation time with maximum productivity, for the production of small parts, gripping and placement, soldering, gluing, packaging, testing and other operations. The KR 6 R900-2 is a reliable automation solution that will ultimately help you save money in many areas, including reduced maintenance costs.

The KR 6 R900 is available in various versions:

  • KR 6 R900 CR - for clean rooms
  • KR 6 R900 EX
  • KR 6 R900 HM-SC
  • KR 6 R900 WP

Features:

  • Compact design

  • 901 mm radius

  • High repeatability

  • 6 kg load capacity

  • Ability to work in confined spaces

Manufacturer
Reach
901.5 mm
Payload
10 kg
Model
KR 10 R900 WP
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 10 R900 WP
Country Germany
Reach, mm 901.5
Axes 6
Payload, kg 10
Repeatability mm, mm ± 0.03
Weight kg, kg 53
Controller KR C5 micro; KR C4 compact
Type Articulated
Motion range, °
A1 ± 170
A2 - 190/45
A3 - 120/156
A4 ± 185
A5 ± 120
A6 ± 350
Protection
Protection rating (IEC 60529) IP67
Protection rating, robot wrist (IEC 60529) IP67
