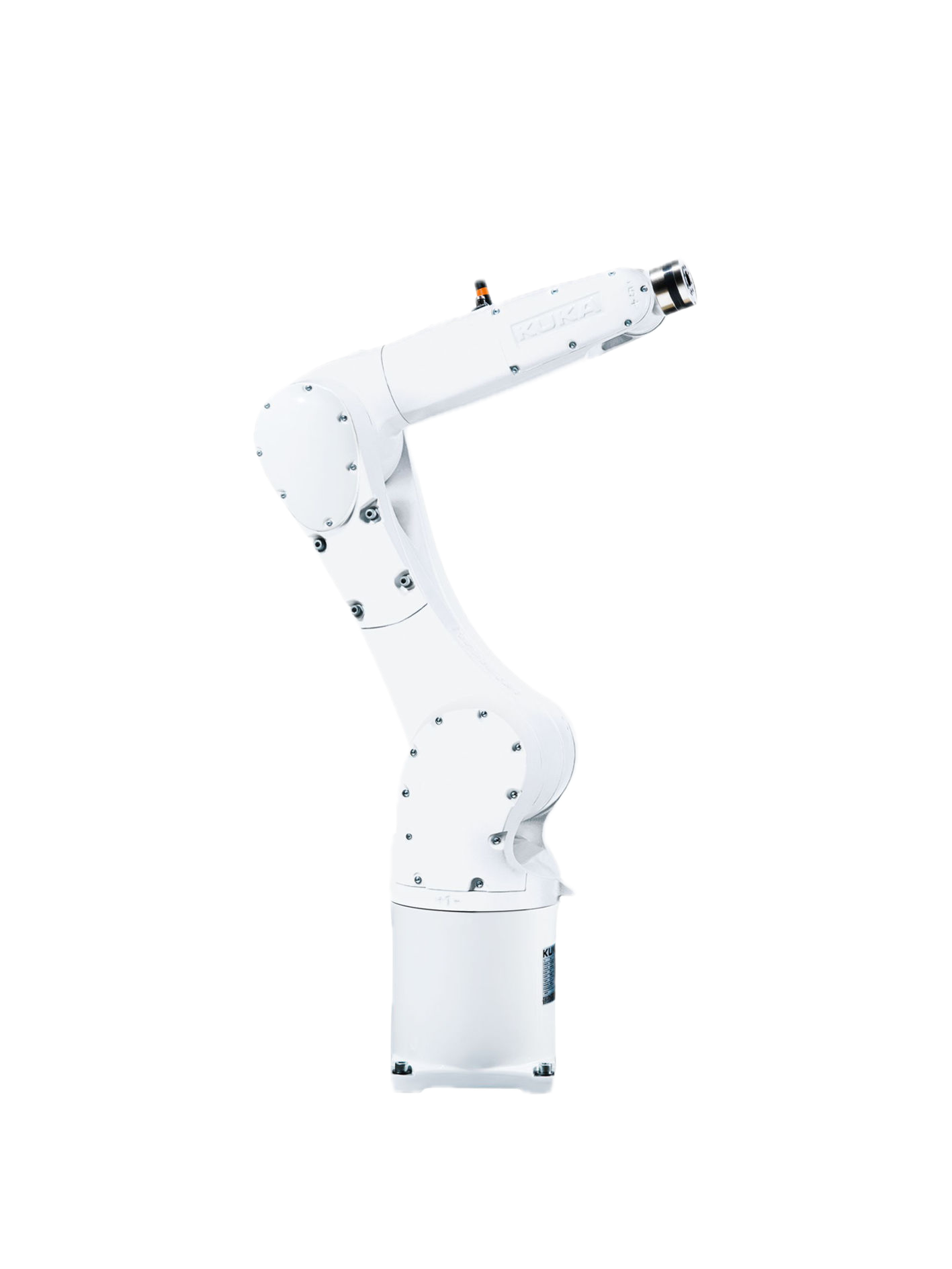

Industrial robot KUKA KR 10 R900 CR
KR 6 R900-2 (AGILUS) is an economical and reliable 6-axis industrial robot from KUKA, and also one of the fastest in its class. The robot is ideal for projects that require minimal operation time with maximum productivity, for the production of small parts, gripping and placement, soldering, gluing, packaging, testing and other operations. The KR 6 R900-2 is a reliable automation solution that will ultimately help you save money in many areas, including reduced maintenance costs.
The KR 6 R900 is available in various versions:
- KR 6 R900 CR - for clean rooms
- KR 6 R900 EX
- KR 6 R900 HM-SC
- KR 6 R900 WP
Features:
Compact design
901 mm radius
High repeatability
6 kg load capacity
Ability to work in confined spaces
- Manufacturer
-
- Reach
- 901.5 mm
- Payload
- 10 kg
- Model
- KR 10 R900 CR
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 10 R900 CR |
| Country | Germany |
| Reach, mm | 901.5 |
| Axes | 6 |
| Payload, kg | 10 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 52 |
| Controller | KR C5 micro; KR C4 smallsize-2; KR C4 compact |
| Type | Articulated |

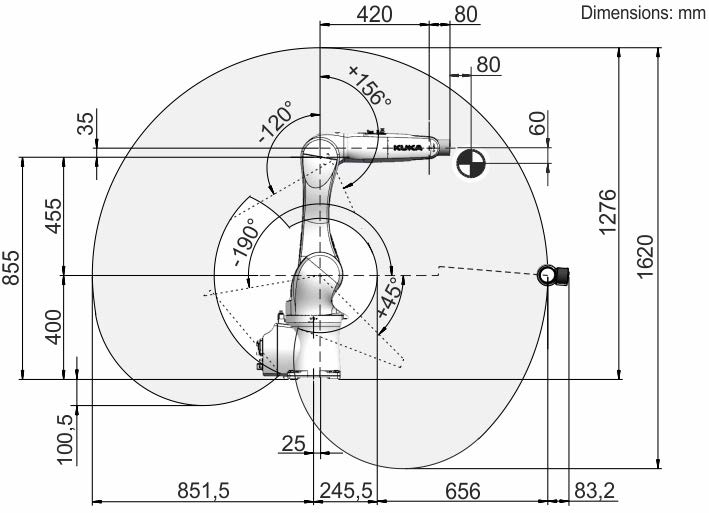

| Motion range, ° | |
|---|---|
| A1 | ± 170 |
| A2 | - 190/45 |
| A3 | - 120/156 |
| A4 | ± 185 |
| A5 | ± 120 |
| A6 | ± 350 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP54 |
| Protection rating, robot wrist (IEC 60529) | IP54 |
