Industrial robot KUKA KR 10 R1100 HM-SC
KR 10 R1100-2 is a cost-effective and reliable 6-axis industrial robot from KUKA, and one of the fastest in its class. The robot is ideal for projects that require minimal operation time with maximum productivity, for the production of small parts, pick and place, soldering, gluing, packaging, testing and other operations. KR 10 R1100-2 is a reliable automation solution that will ultimately help you save money in many areas, including reduced maintenance costs.
Features:
Compact design
1101 mm radius
High repeatability
10 kg load capacity
Ability to work in confined spaces
- Manufacturer
-
- Reach
- 1101 mm
- Payload
- 10 kg
- Model
- KR 10 R1100 HM-SC
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 10 R1100 HM-SC |
| Country | Germany |
| Reach, mm | 1101 |
| Axes | 6 |
| Payload, kg | 10 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 64 |
| Controller | KR C5 micro; KR C4 compact |
| Type | Articulated |

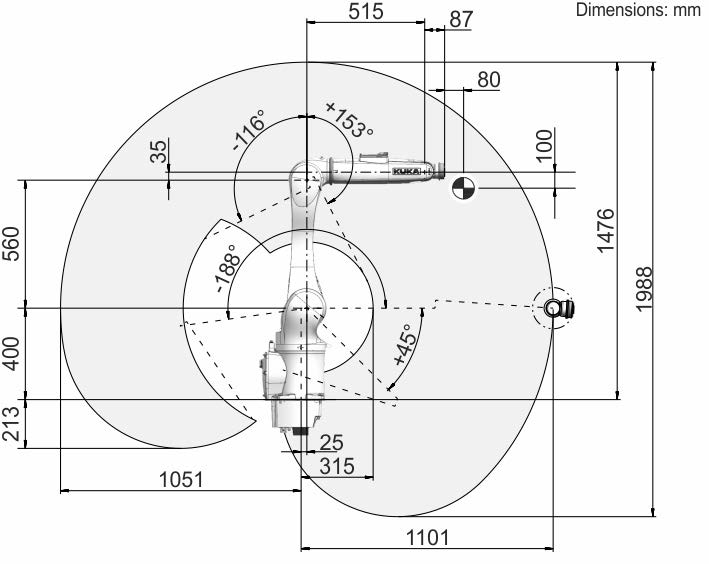

| Motion range, ° | |
|---|---|
| A1 | ± 166 |
| A2 | - 188/45 |
| A3 | - 116/153 |
| A4 | ± 185 |
| A5 | ± 110 |
| A6 | ± 350 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP65/IP67 |
| Protection rating, robot wrist (IEC 60529) | IP65/IP67 |
