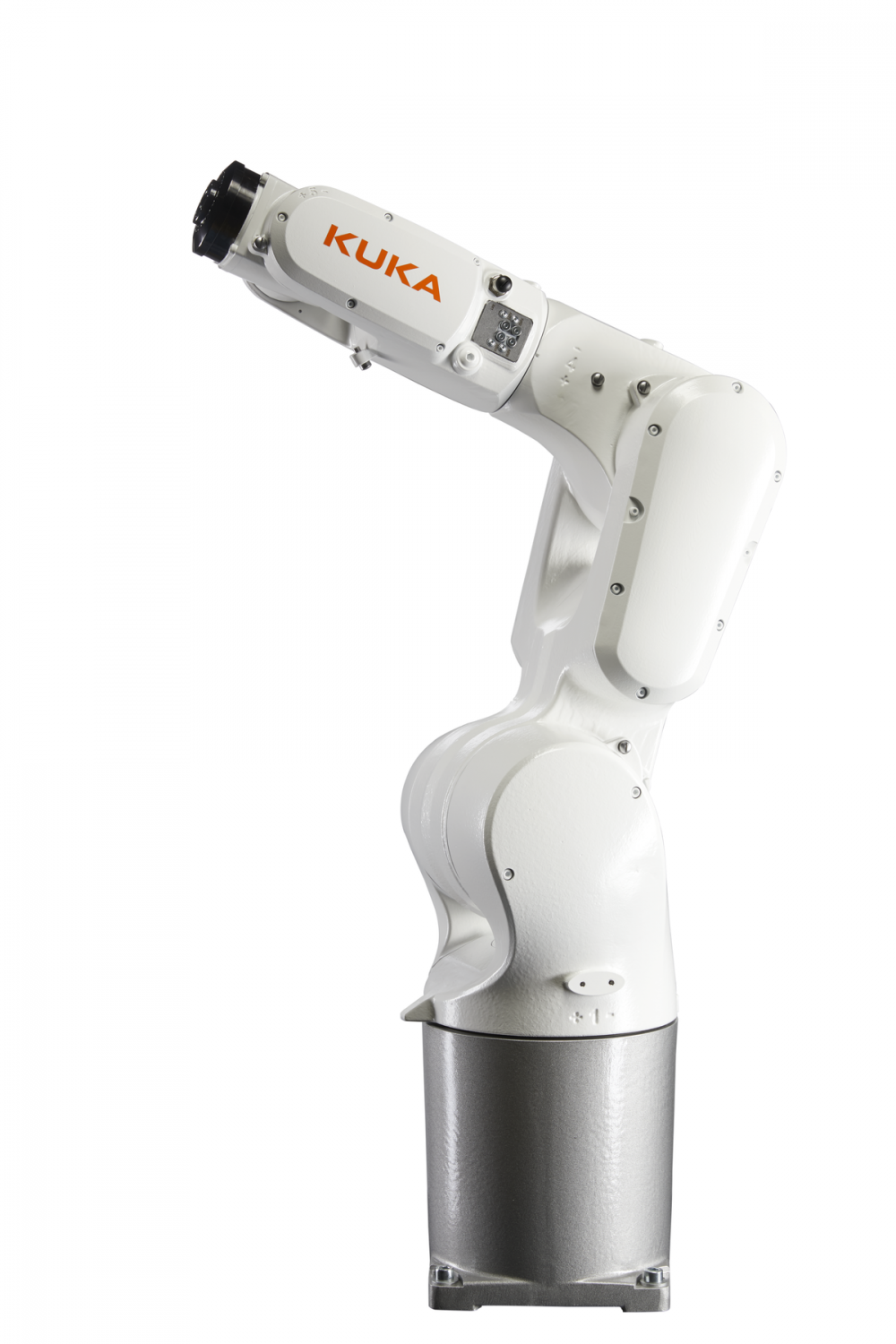

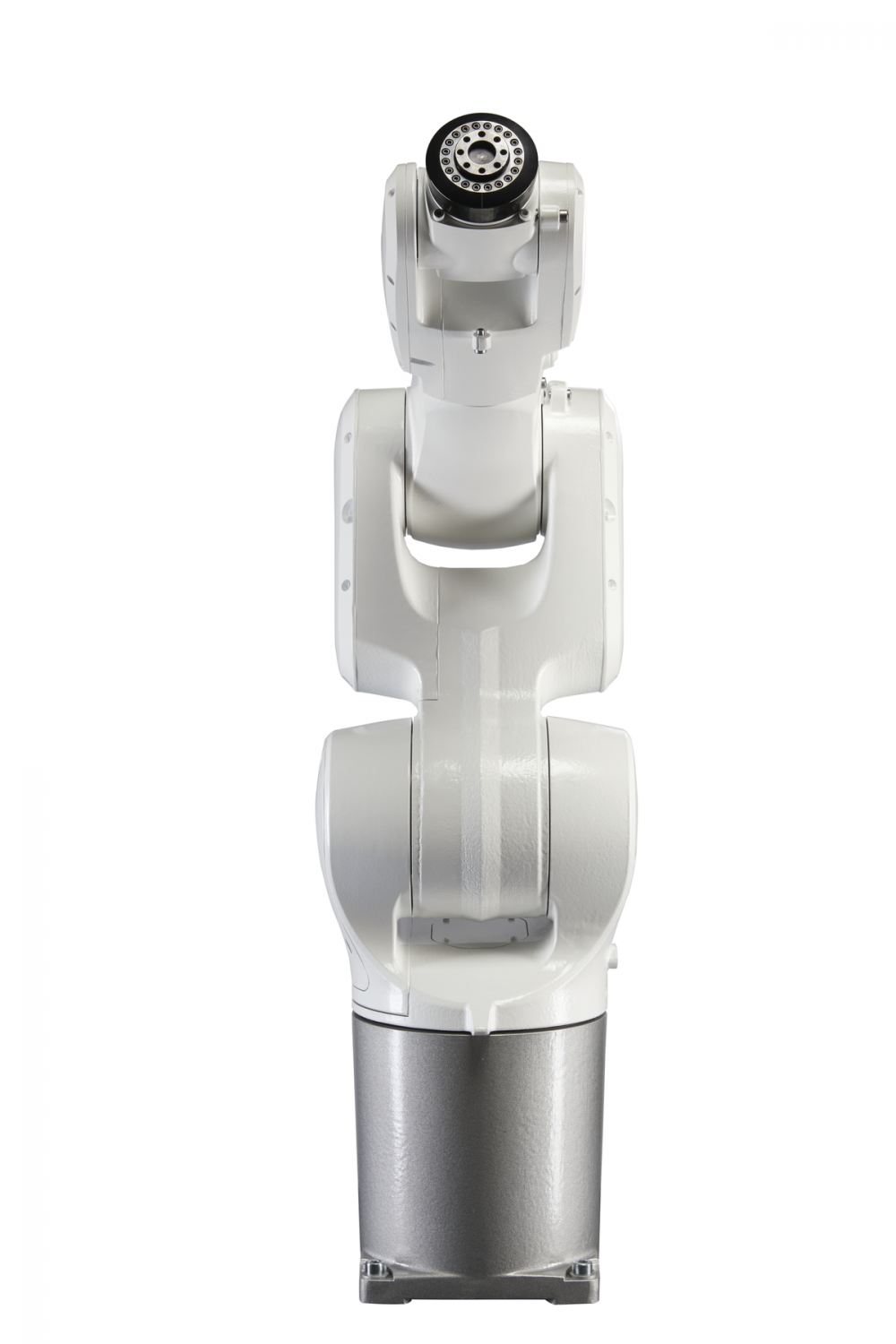

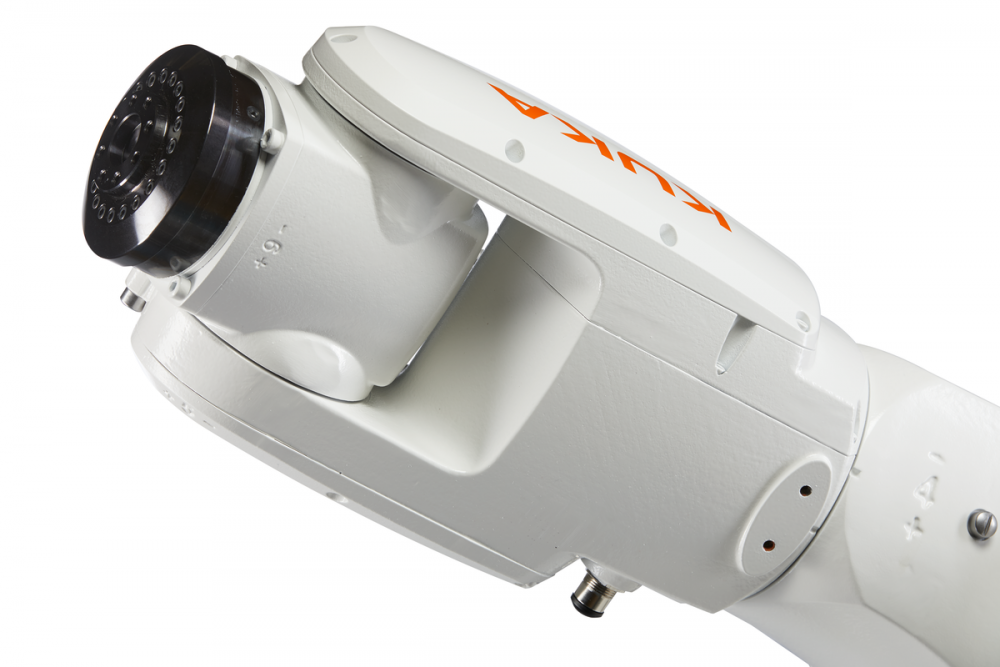

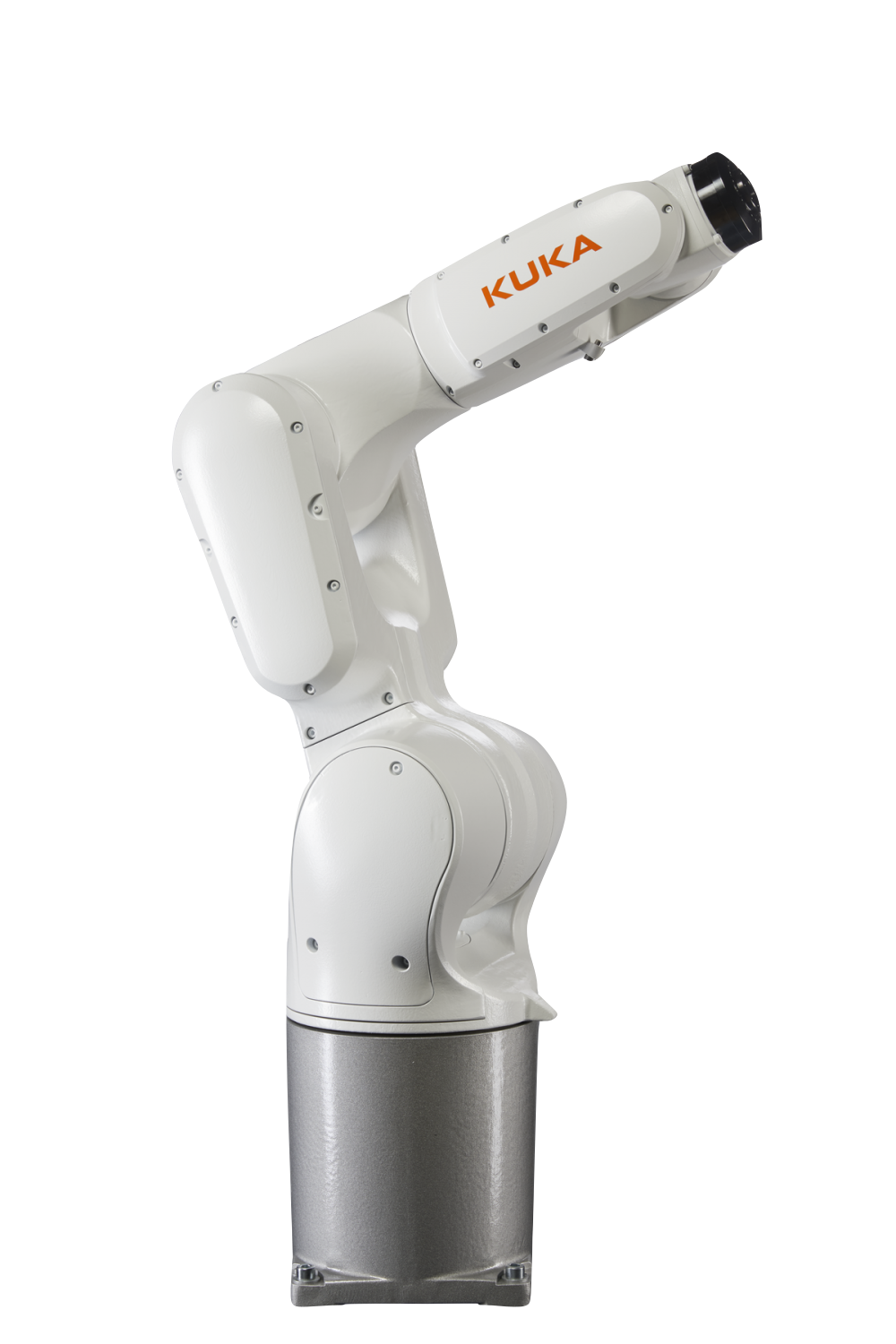

Industrial robot KUKA KR 10 R1100-2

KR 10 R1100-2 is a cost-effective and reliable 6-axis industrial robot from KUKA, and one of the fastest in its class. The robot is ideal for projects that require minimal operation time with maximum productivity, for the production of small parts, pick and place, soldering, gluing, packaging, testing and other operations. KR 10 R1100-2 is a reliable automation solution that will ultimately help you save money in many areas, including reduced maintenance costs.

Features:

  • Compact design

  • 1101 mm radius

  • High repeatability

  • 10 kg load capacity

  • Ability to work in confined spaces

Manufacturer
Reach
1101 mm
Payload
10 kg
Model
KR 10 R1100-2
Axes
6
Industries
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 10 R1100-2
Country Germany
Reach, mm 1101
Axes 6
Payload, kg 10
Repeatability mm, mm ± 0.02
Weight kg, kg 55
Controller KUKA KR C4 compact
Type Articulated robot
Motion range, °
J1 ± 170
J2 - 195/40
J3 - 120/156
J4 ± 185
J5 ± 120
J6 ± 350
