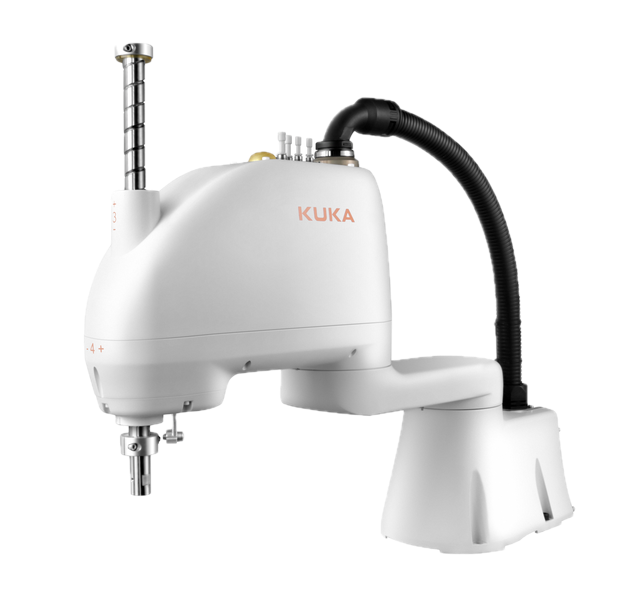

Industrial Robot KUKA KR 6 R500 Z200-2

KUKA KR 6 R500 Z200-2 - 4-axis SCARA robot - ideal for assembly, handling of small parts and packaging. KR 6 R500 Z200-2 has a radius of 500 mm, compact design, as well as high speed and accuracy, which will increase productivity.

Features:

Fast and accurate
Working range 500 mm
Compact robot
Ability to work in limited spaces

Manufacturer

Reach: 500 mm
Payload: 6 kg

Model: KR 6 R500 Z200-2
Axes: 4

Industries

Production of consumer goods

Solutions

Assembly
Packaging
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	KUKA
Model	KR 6 R500 Z200-2
Country	Germany
Reach, mm	500
Axes	4

Payload, kg	6
Repeatability mm, mm	± 0.02
Weight kg, kg	20
Mounting position	Floor
Controller	KR C5 micro
Type	SCARA

Motion range, °
J1	± 132
J2	± 145
J3	- 200/0
J4	± 355

Maximum speed, °/s
J1	420
J2	720
J3	1100
J4	2000

Protection
Protection rating (IEC 60529)	IP20
