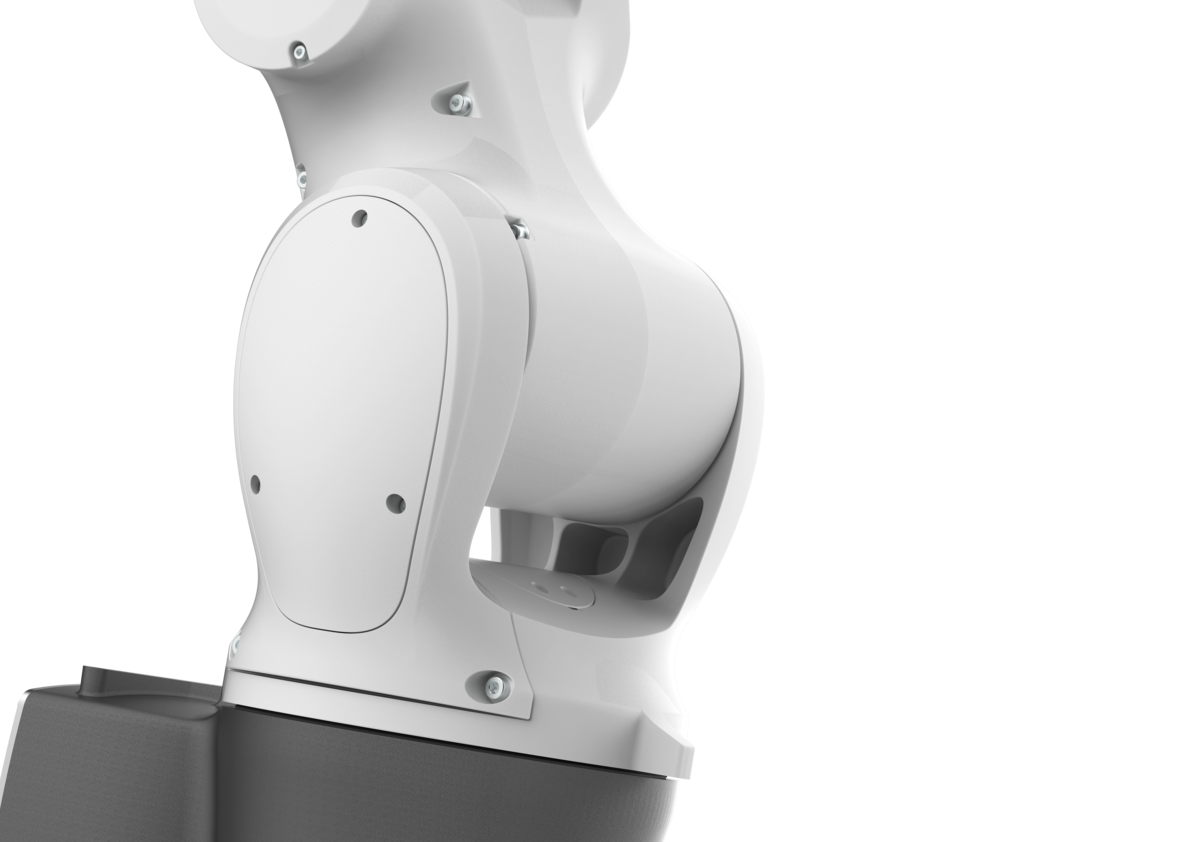

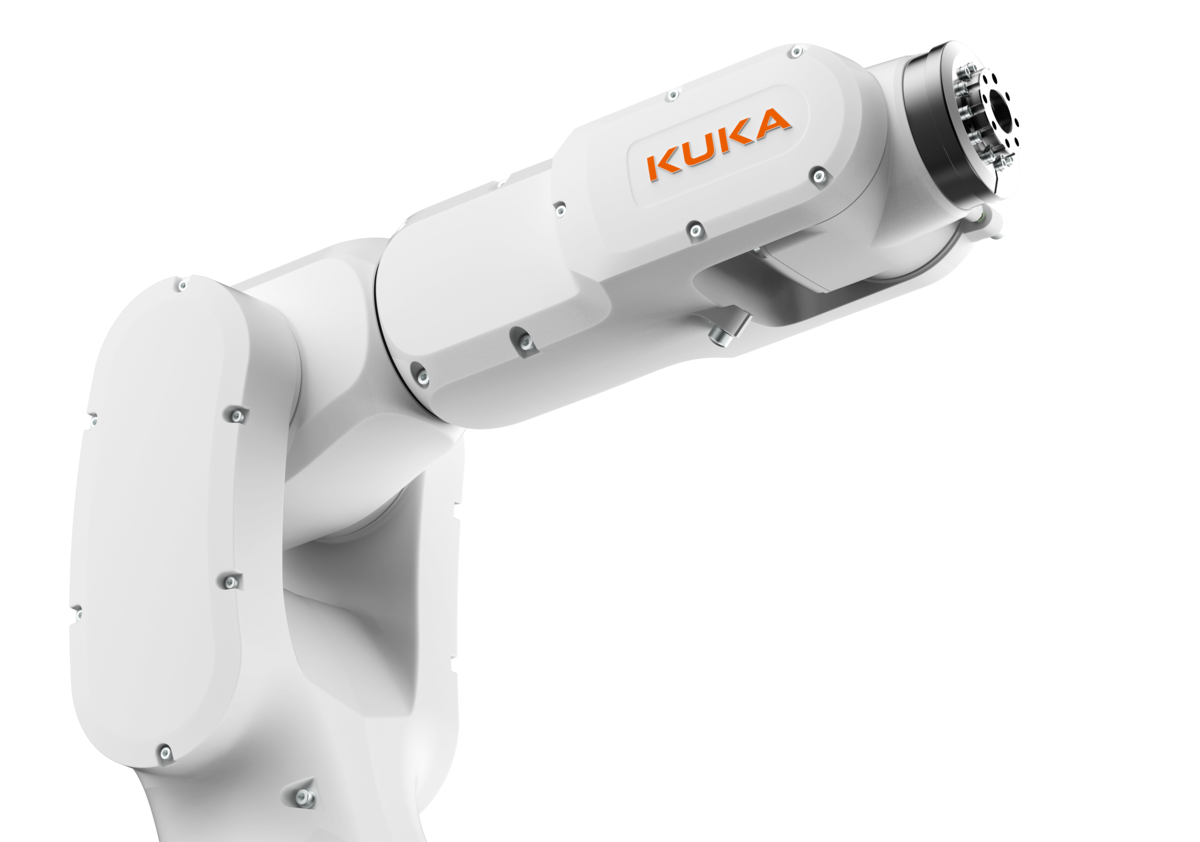

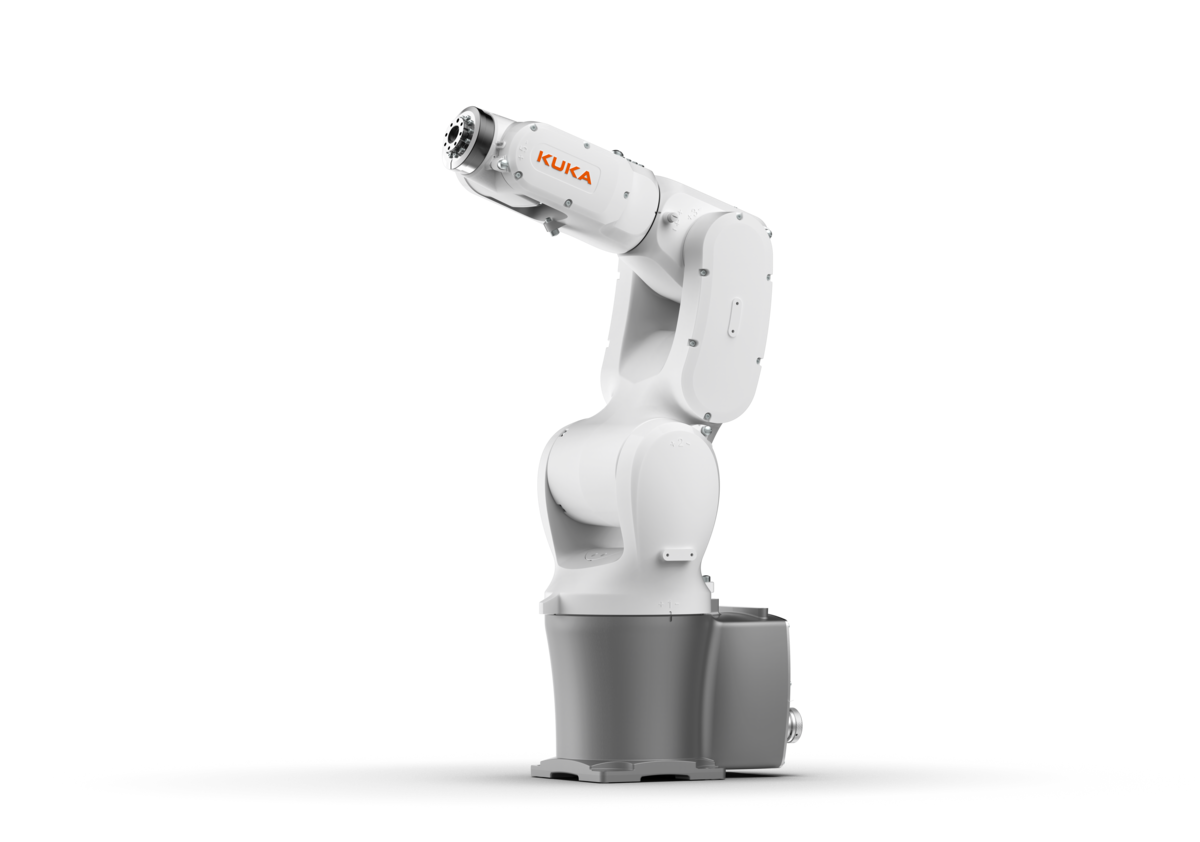

Industrial Robot KUKA KR 4 R500-3
The KR 4 R500-3 is a compact 6-axis industrial robot from KUKA equipped with the next-generation KR C5 micro controller. The KUKA KR 4 R500-3 is suitable for automating tasks involving the manipulation of small objects weighing up to 4 kilograms in confined spaces — from machine loading and unloading to assembly and dispensing.
Key Features of the KUKA KR 4 R500-3:
Compact design
Next-generation KR C5 micro controller
Various installation options
High repeatability
- Manufacturer
-
- Reach
- 500 mm
- Payload
- 4 kg
- Model
- KR 4 R500-3
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 4 R500-3 |
| Country | Germany |
| Reach, mm | 500 |
| Axes | 6 |
| Payload, kg | 4 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 25 |
| Controller | KR C5 micro |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| A1 | ± 170 |
| A2 | - 195 / 40 |
| A3 | - 115 / 150 |
| A4 | ± 185 |
| A5 | ± 120 |
| A6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 487 |
| A2 | 360 |
| A3 | 488 |
| A4 | 552 |
| A5 | 529 |
| A6 | 800 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP54 |
| Protection rating, robot wrist (IEC 60529) | IP54 |
