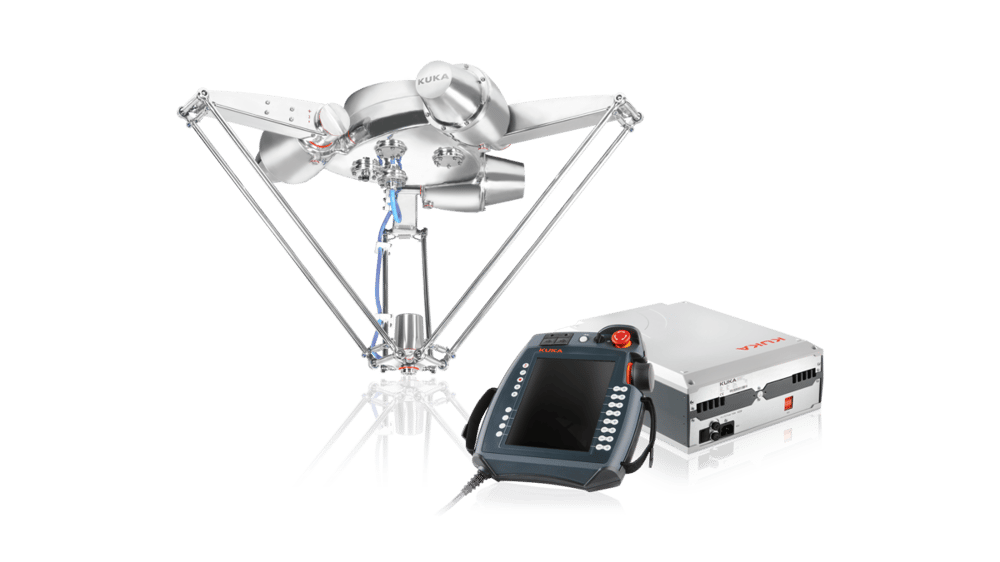

Industrial Robot KUKA KR 3 D1200 HM
- Manufacturer
-
- Reach
- 1200 mm
- Payload
- 3 kg
- Model
- KR 3 D1200 HM
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 3 D1200 HM |
| Country | Germany |
| Reach, mm | 1200 |
| Axes | 4 |
| Payload, kg | 3 |
| Repeatability mm, mm | 0.05 |
| Weight kg, kg | 95 |
| Mounting position | Ceiling |
| Controller | KR C5 micro |
| Type | Delta |
| Motion range, ° | |
|---|---|
| A1 | -109/ 42 |
| A2 | -109/ 42 |
| A3 | -109/ 42 |
| A4 | ± 355 |
| Maximum speed, °/s | |
|---|---|
| A1 | 600 |
| A2 | 600 |
| A3 | 600 |
| A4 | 840 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP67 |
