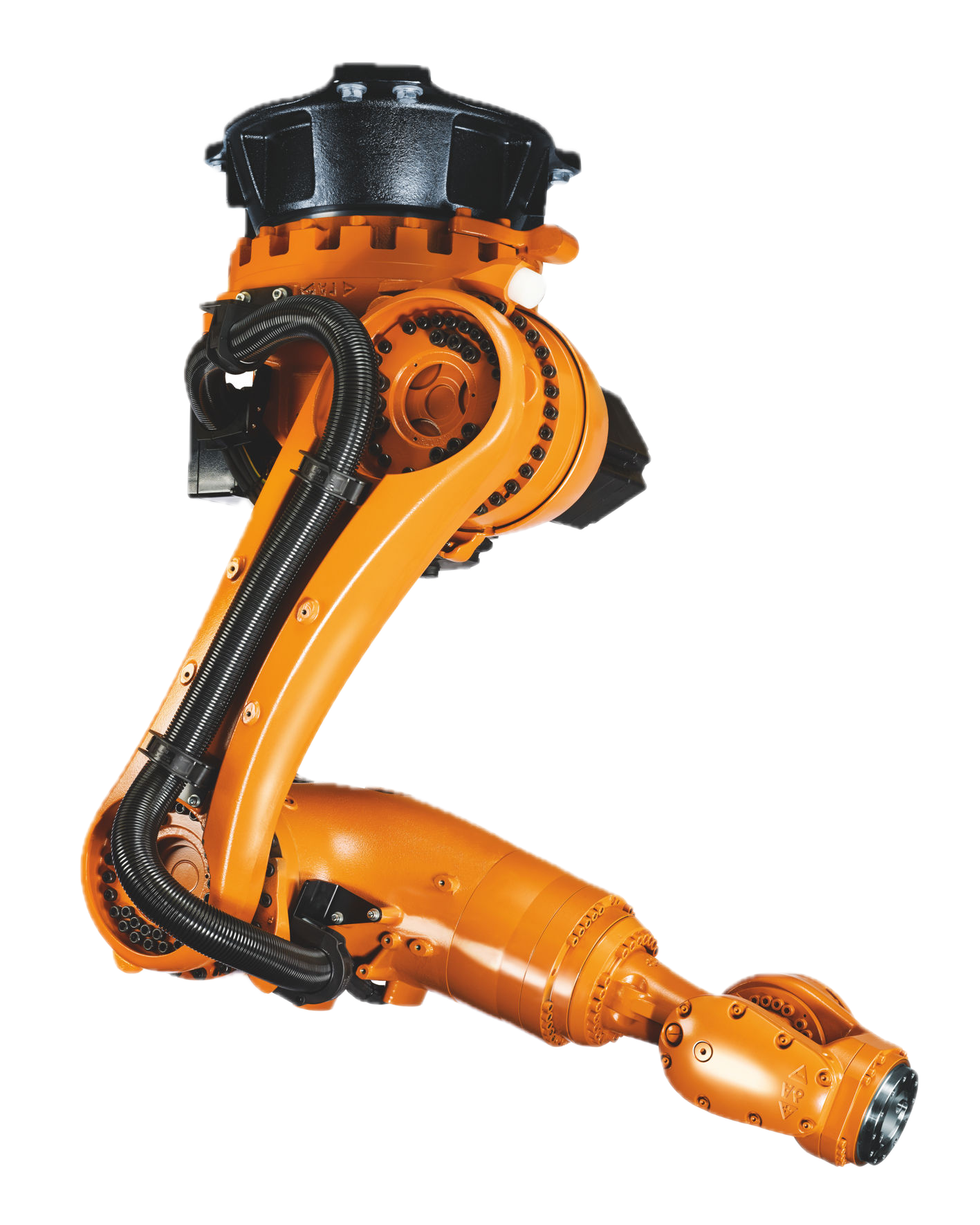

Industrial Robot KUKA KR 120 R1800 nano C
KUKA KR 120 R1800 nano C is a reliable and fast 6-axis industrial robot that will increase your productivity due to its speed, precision, high payload of 120 kg and a large working range of 1803 mm. The main difference from the standard model is the ceiling mount (C - ceiling).
Features:
Compact design
Reach 1803 mm
High load capacity 120 kg
- Manufacturer
-
- Reach
- 1803 mm
- Payload
- 120 kg
- Model
- KR 120 R1800 nano C
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 120 R1800 nano C |
| Country | Germany |

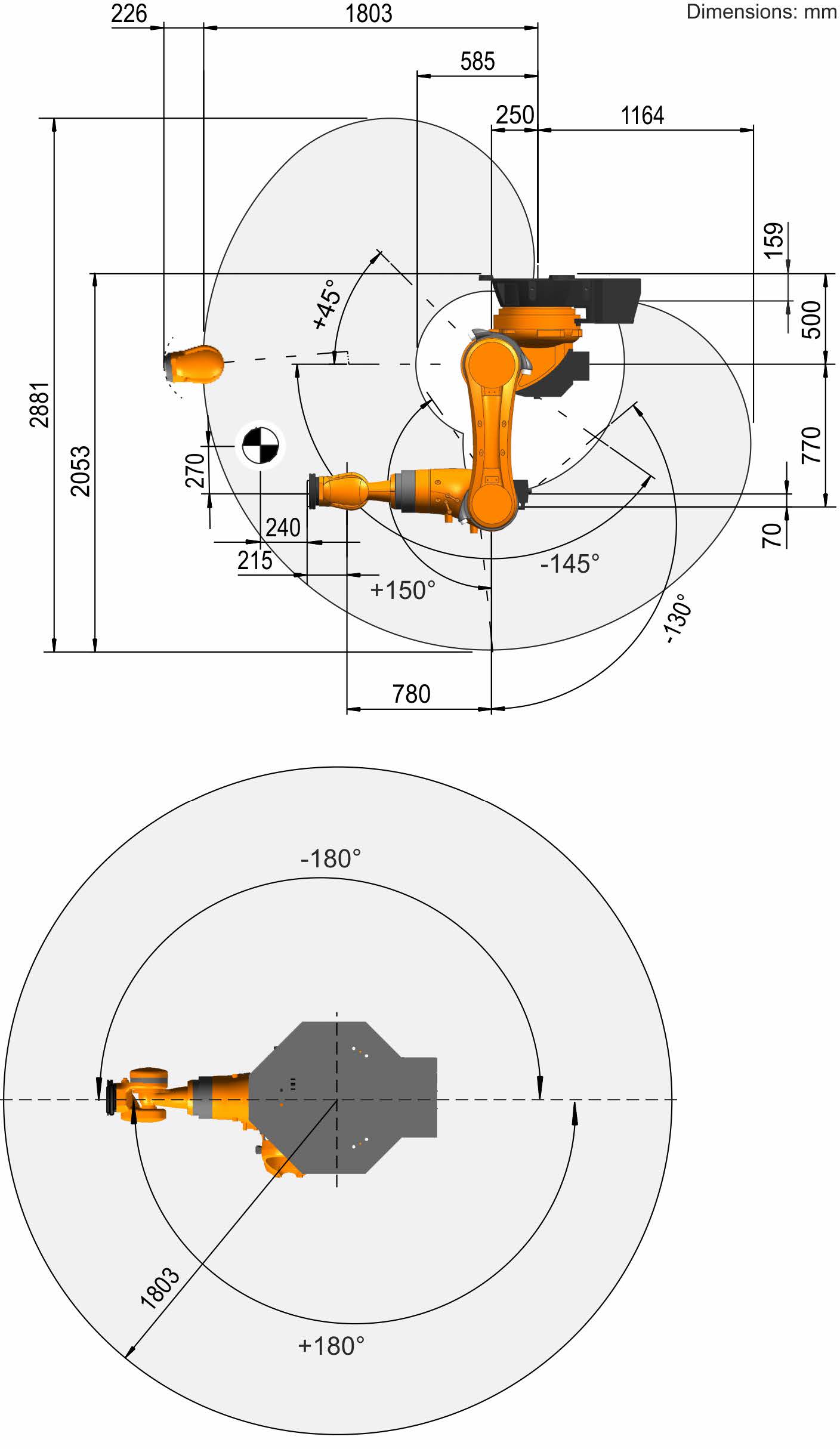

| Reach, mm | 1803 |
| Axes | 6 |
| Payload, kg | 120 |
| Repeatability mm, mm | ± 0.06 |
| Weight kg, kg | 684 |
| Mounting position | Ceiling |
| Controller | KR C4 |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| A1 | ± 180 |
| A2 | - 145/45 |
| A3 | - 130/150 |
| A4 | ± 350 |
| A5 | ± 125 |
| A6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 123 |
| A2 | 114 |
| A3 | 86 |
| A4 | 292 |
| A5 | 258 |
| A6 | 284 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP65 |
| Protection rating, robot wrist (IEC 60529) | IP65 |
