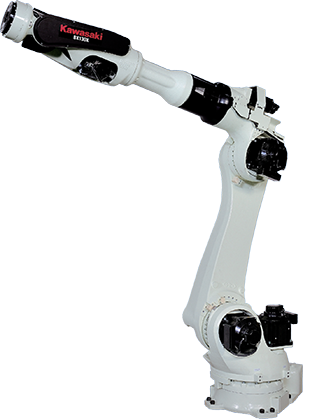

Industrial Robot Kawasaki BX130X

BX130X - 6-axis hollow wrist industrial robot from Kawasaki, capable of handling objects weighing up to 130 kg. BX130X features high speed and positioning accuracy, has a large working range of 2991 mm and is suitable for automation of spot welding, machine maintenance, assembly and material handling.

BX130X Features:

  • Hollow and compact design

  • High speed and positioning accuracy

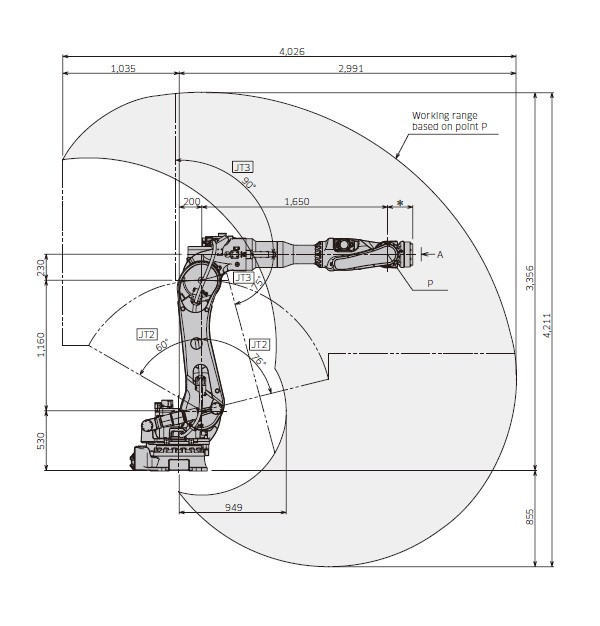

  • Working range 2991 mm

  • Load capacity 130 kg

Manufacturer
Reach
2991 mm
Payload
130 kg
Model
BX130X
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model BX130X
Country Japan
Reach, mm 2991
Axes 6
Payload, kg 130
Repeatability mm, mm ± 0.06
Weight kg, kg 920
Mounting position Floor
Controller E02
Motion range, °
J1 ± 160
J2 + 76/-60
J3 +90/-75
J4 ± 210
J5 ± 125
J6 ± 210
Maximum speed, °/s
J1 105
J2 90
J3 130
J4 200
J5 160
J6 300
