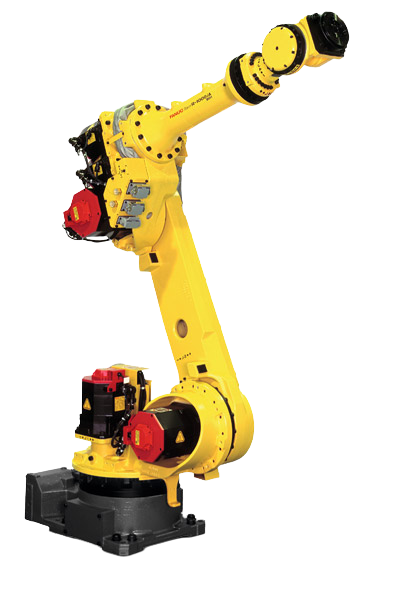

Industrial Robot FANUC R-1000iA/80H
The R-1000iA/80H industrial robot from Fanuc's R-1000 series is specially designed for compact palletizing. With a load capacity of 80 kilograms, a large operating radius, and high performance, the R-1000iA/80H robot is an excellent solution for small-scale productions that require precise and reliable palletizing.
Features:
High precision
Able to operate in confined spaces
Load capacity 80 kg
Working range 2230 mm
- Manufacturer
-
- Reach
- 2230 mm
- Payload
- 80 kg
- Model
- R-1000iA/80H
- Axes
- 5
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | R-1000iA/80H |
| Country | Japan |
| Reach, mm | 2230 |
| Axes | 5 |
| Payload, kg | 80 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 610 |
| Controller | R-30iB Plus |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 245 |
| J3 | 215 |
| J4 | 20 |
| J5 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 185 |
| J2 | 180 |
| J3 | 180 |
| J4 | 180 |
| J5 | 500 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
