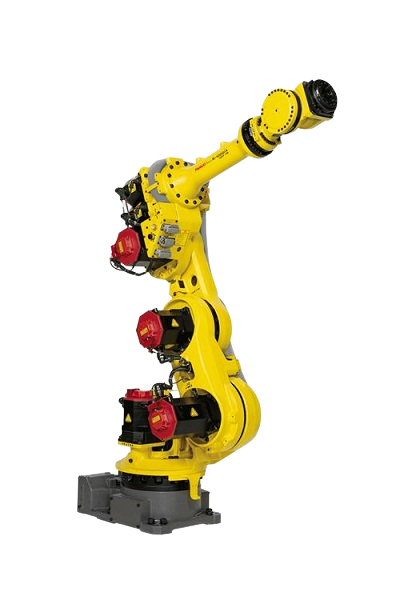

Industrial Robot FANUC R-1000iA/120F-7B

Based on the seventh axis added in the second arm, the R-1000iA/120F-7B enjoys greater flexibility, making it ideal for material handling and spot welding. However, its compact design allows it to operate fully in small work cells, achieving the same cycle time as the sixth axis.

Features:

High precision
Load capacity 120 kg
Working range 2230 mm

Manufacturer

Reach: 2230 mm
Payload: 120 kg

Model: R-1000iA/120F-7B
Axes: 7

Solutions

Machine Tending
Packaging
Palletizing
Welding

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	R-1000iA/120F-7B
Country	Japan
Reach, mm	2230
Axes	7

Payload, kg	120
Repeatability mm, mm	± 0.03
Weight kg, kg	790
Controller	R-30iB Plus

Motion range, °
J1	360
J2	200
J3	385
J4	720
J5	250
J6	720
E1	225

Maximum speed, °/s
J1	130
J2	110
J3	120
J4	170
J5	170
J6	250
E1	130

Protection
body	IP54
wrist & J3 arm	IP67
