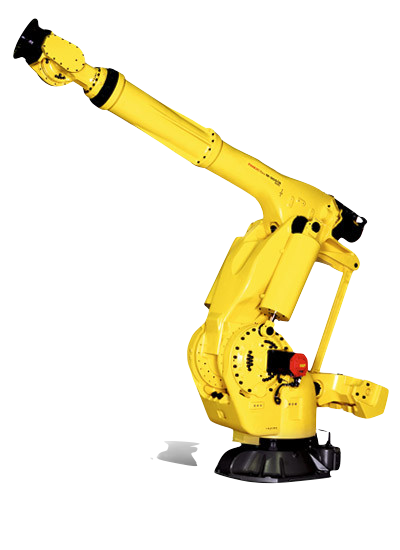

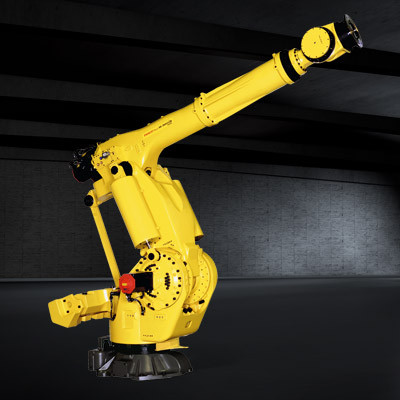

Industrial Robot FANUC M-900iB/400L
Fanuc M-900iB/400L 6-axis universal industrial robot with a long arm, capable of handling loads up to 400 kg and a working area of 3704 mm. M-900iB/400L is ideal for a variety of tasks that require manipulation of heavy loads and a large working range. The M-900iB/400L robot will reduce the time of technical operations and increase productivity.
Features:
Large lifting capacity of 400 kg
Large working range of 3704 mm
- Manufacturer
-
- Reach
- 3704 mm
- Payload
- 400 kg
- Model
- M-900iB/400L
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-900iB/400L |
| Country | Japan |
| Reach, mm | 3704 |
| Axes | 6 |
| Payload, kg | 400 |
| Repeatability mm, mm | ± 0.1 |
| Weight kg, kg | 3150 |
| Controller | R-30iB |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 154 |
| J3 | 160 |
| J4 | 750 |
| J5 | 244 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 80 |
| J2 | 80 |
| J3 | 80 |
| J4 | 100 |
| J5 | 100 |
| J6 | 160 |
