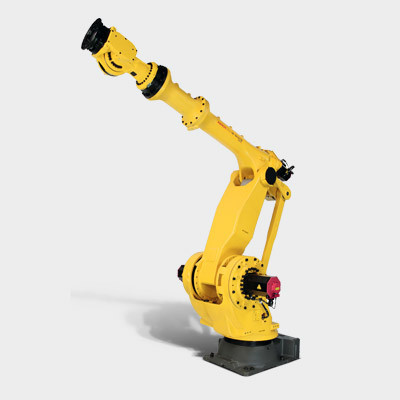

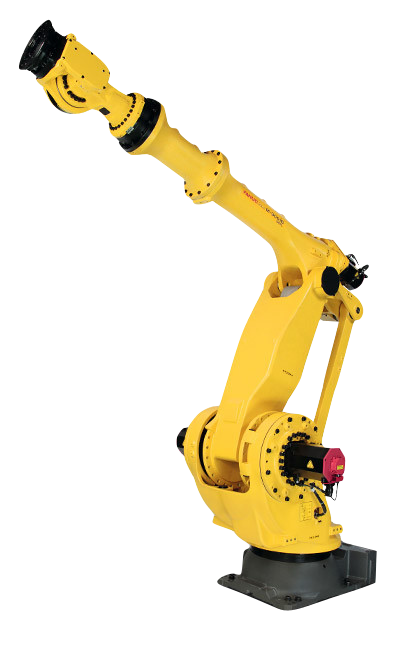

Industrial Robot FANUC M-900iB/280L

Fanuc M-900iB/280L 6-axis long-arm general-purpose industrial robot with a payload of up to 280 kg and a working envelope of 3101 mm. Ideal for a wide range of applications - from assembly and packaging to spot welding, the M-900iB/280L's long reach and high repeatability help reduce processing times and increase productivity.

Features:

Large lifting capacity of 280 kg
Large working range of 3101 mm
Various mounting options
Rigid construction

Manufacturer

Reach: 3101 mm
Payload: 280 kg

Model: M-900iB/280L
Axes: 6

Industries

Heavy engineering

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-900iB/280L
Country	Japan
Reach, mm	3101
Axes	6

Payload, kg	280
Repeatability mm, mm	± 0.1
Weight kg, kg	1600
Controller	R-30iB
Type	Articulated robot

Motion range, °
J1	370
J2	151
J3	224
J4	720
J5	250
J6	720

Maximum speed, °/s
J1	110
J2	105
J3	100
J4	125
J5	125
J6	205
