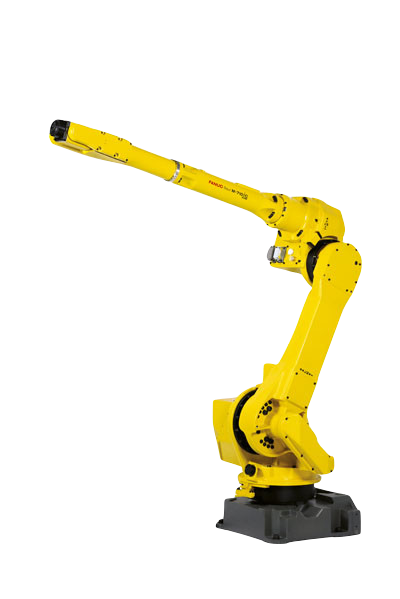

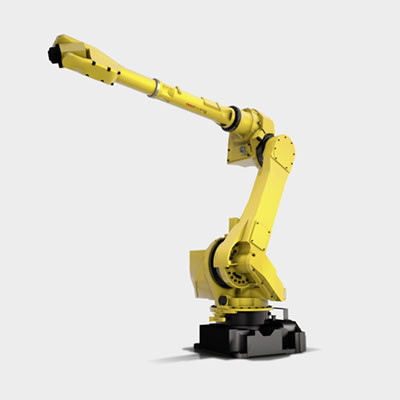

Industrial Robot FANUC M-710iC/20M

FANUC M-710iC/45M is a 6-axis industrial robot with a compact wrist, rigid structure and medium payload, capable of handling up to 20 kg. The advanced M710iC/45M industrial robot is specially designed for applications in limited space, has high travel speeds on the J4 and J6 axes and can perform a variety of tasks - from assembly and packaging to arc welding.

Features:

Load capacity 20 kg
High working range 2582 mm

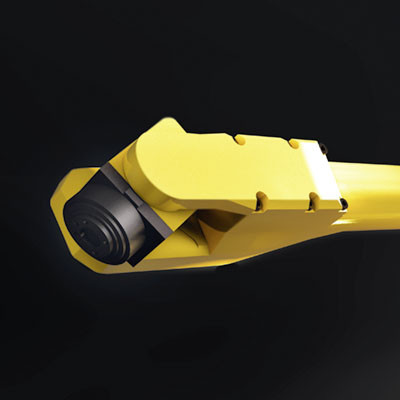

Compact wrist
Various mounting options

Manufacturer

Reach: 2582 mm
Payload: 20 kg

Model: M-710iC/20M
Axes: 6

Solutions

Assembly
Welding
Packaging
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-710iC/20M
Reach, mm	2582
Axes	6

Payload, kg	20
Repeatability mm, mm	± 0.06
Weight kg, kg	530
Controller	R-30iB

Motion range, °
J1	350
J2	225
J3	435
J4	400
J5	280
J6	900

Maximum speed, °/s
J1	175
J2	175
J3	180
J4	350
J5	360
J6	600
