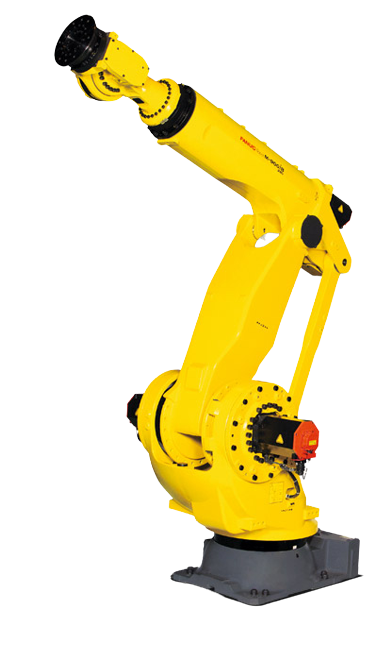

Industrial Robot FANUC M-900iB/280
Based on the extremely robust M-900iB/360, the M-900iB/280 features a completely redesigned J3 arm for maximum rigidity. The M-900iB/280 has been tested to the ISO 9283 rigidity standard and exhibits a very high level of static compliance. This makes it ideally suited to operations where pressure is applied to the tool and precision is required.
Features:
High precision
Load capacity 2655 kg
Working range 280 mm
- Manufacturer
-
- Reach
- 2655 mm
- Payload
- 280 kg
- Model
- M-900iB/280
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-900iB/280 |
| Country | Japan |
| Reach, mm | 2655 |
| Axes | 6 |
| Payload, kg | 280 |
| Repeatability mm, mm | ± 0.1 |
| Weight kg, kg | 1700 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 151 |
| J3 | 224 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 110 |
| J2 | 105 |
| J3 | 100 |
| J4 | 110 |
| J5 | 110 |
| J6 | 180 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
