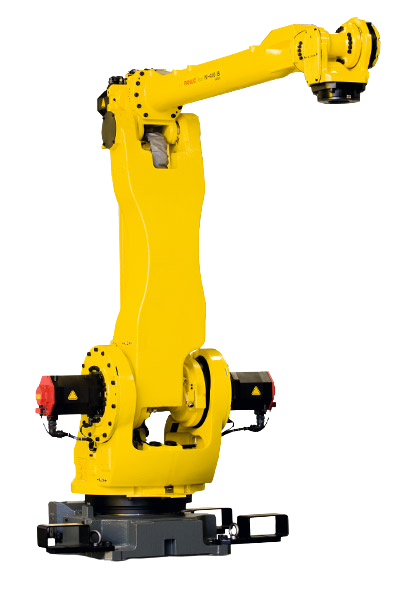

Industrial Robot FANUC M-410iB/140H

Designed specifically for the job by the world's first dedicated palletizing robot manufacturer, the M-410 Series increases productivity across palletizing and material handling applications. Extremely fast, versatile, and offering best-in-class repeatability, this 5-axis robot will handle a wide variety of palletizing applications.

Features:

High precision
Load capacity 140 kg
Working range 2850 mm

Manufacturer

Reach: 2850 mm
Payload: 140 kg

Model: M-410iB/140H
Axes: 5

Solutions

Machine Tending
Packaging
Palletizing

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-410iB/140H
Country	Japan
Reach, mm	2850
Axes	5

Payload, kg	140
Repeatability mm, mm	± 0.2
Weight kg, kg	1200
Controller	R-30iB Plus

Motion range, °
J1	360
J2	155
J3	112
J4	20
J5	720

Maximum speed, °/s
J1	140
J2	115
J3	135
J4	135
J5	420

Protection
body	IP54
wrist & J3 arm	IP54
