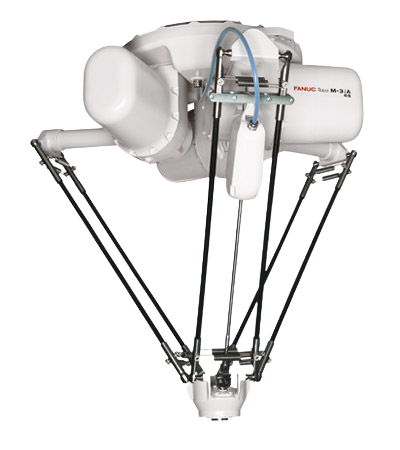

Industrial Robot FANUC M-3iA/6S

Equipped with a powerful servo motor for high acceleration and short cycle times, this model is ideal for high-speed picking operations. Its four axes and high-speed single-axis wrist provide greater dexterity, while its long reach makes it ideal for picking applications across multiple conveyors

Features:

High speed
Load capacity of 6 kg
Working range of 1350 mm

Manufacturer

Reach: 1350 mm
Payload: 6 kg

Model: M-3iA/6S
Axes: 4

Industries

Production of consumer goods

Solutions

Packaging
Assembly
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-3iA/6S
Country	Japan
Reach, mm	1350
Axes	4

Payload, kg	6
Repeatability mm, mm	± 0.1
Weight kg, kg	160
Controller	R-30iB Plus
Type	Delta

Motion range, °
J1	Ø 1350 x 500*3
J2	Ø 1350 x 500*3
J3	Ø 1350 x 500*3
J4	720

Maximum speed, °/s
J4	4000

Protection
body	IP67
wrist & J3 arm	IP67
