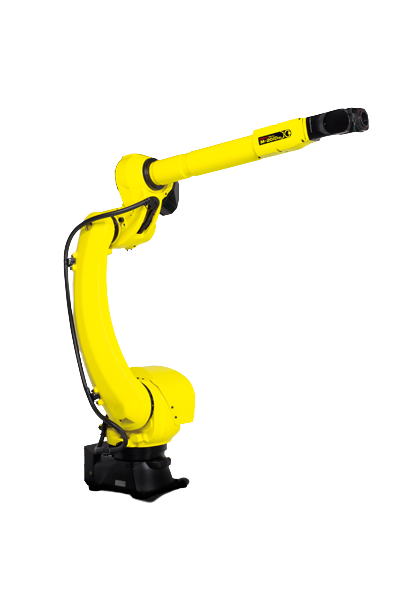

Industrial Robot FANUC M-20iD/12L
Specially designed for handling applications, this model offers outstanding axis speeds and the highest precision in its class. The highly flexible robot can handle large parts thanks to its very long traverse travel. To further maximize flexibility and open up new application possibilities, it can also carry additional tools weighing up to 12 kg.
Features:
High precision
Load capacity 12 kg
Working range 2272 mm
- Manufacturer
-
- Reach
- 2272 mm
- Payload
- 12 kg
- Model
- M-20iD/12L
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-20iD/12L |
| Country | Japan |
| Reach, mm | 2272 |
| Axes | 6 |
| Payload, kg | 12 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 250 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 260 |
| J3 | 475 |
| J4 | 400 |
| J5 | 360 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 210 |
| J2 | 210 |
| J3 | 265 |
| J4 | 420 |
| J5 | 450 |
| J6 | 720 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
