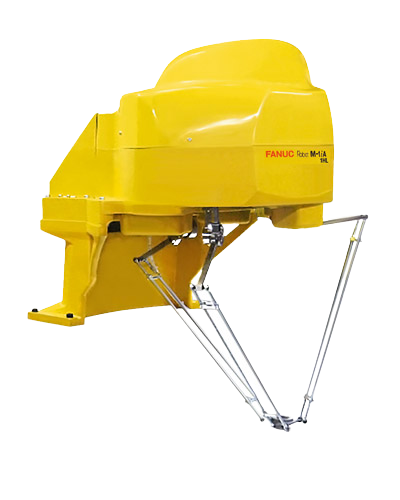

Industrial Robot FANUC M-1iA/1HL

This lightweight model features a parallel link configuration making it ideal for processes that require greater dexterity. Combined with its increased accessibility and repeatability, it makes an excellent choice for a wide range of difficult yet fast assembly applications.

Features:

High precision
Load capacity 1 kg
Working range 420 mm

Manufacturer

Reach: 420 mm
Payload: 1 kg

Model: M-1iA/1HL
Axes: 3

Industries

Production of consumer goods

Solutions

Packaging
Assembly
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-1iA/1HL
Country	Japan
Reach, mm	420
Axes	3

Payload, kg	1
Repeatability mm, mm	± 0.03
Weight kg, kg	21*2
Controller	R-30iB Plus
Type	Delta

Motion range, °
J1	Ø 420 x 150*3
J2	Ø 420 x 150*3
J3	Ø 420 x 150*3

Protection
body	IP20
wrist & J3 arm	IP20
