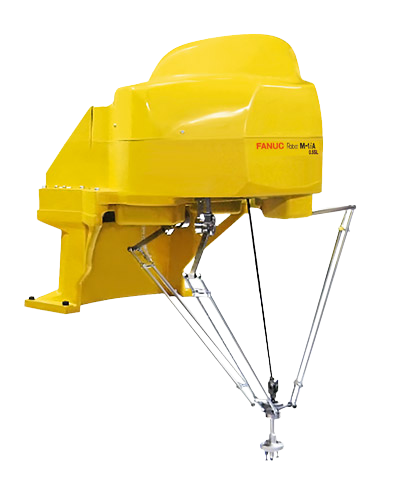

Industrial Robot FANUC M-1iA/0.5SL

Weighing in at just 17 kg, this is the lightest model in the M-1 series. With a range of mounting options, this robot has the reach and repeatability to perform any task requiring 4-axis motion. Its parallel linkage configuration makes it ideally suited to operations requiring greater dexterity and speed.

Features

High speed
Payload 0,5 kg
Working range 420 mm

Manufacturer

Reach: 420 mm
Payload: 0.5 kg

Model: M-1iA/0.5SL
Axes: 4

Industries

Production of consumer goods

Solutions

Packaging
Assembly
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-1iA/0.5SL
Country	Japan
Reach, mm	420
Axes	4

Payload, kg	0.5
Repeatability mm, mm	± 0.03
Weight kg, kg	23*2
Controller	R-30iB Plus
Type	Delta

Motion range, °
J1	Ø 420 x 150*3
J2	Ø 420 x 150*3
J3	Ø 420 x 150*3
J4	720

Maximum speed, °/s
J4	3000

Protection
body	IP20
wrist & J3 arm	IP20
