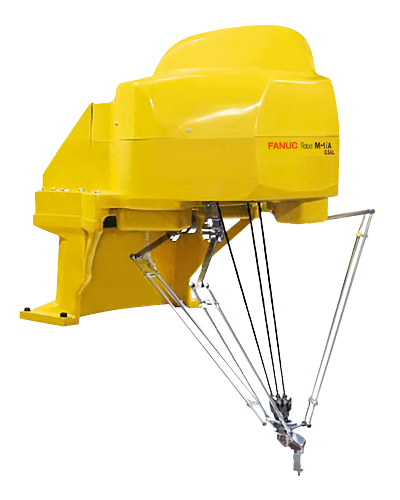

Industrial Robot FANUC M-1iA/0.5AL

Combined with 6 axes, the excellent repeatability offered by this model offers great flexibility across a wide range of complex applications. The extremely variable mounting positions inherent to this product range make this a very versatile choice indeed.

Features:

High precision
Load capacity 0.5 kg
Working range 420 mm

Manufacturer

Reach: 420 mm
Payload: 0.5 kg

Model: M-1iA/0.5AL
Axes: 6

Industries

Production of consumer goods

Solutions

Pick & Place
Assembly
Packaging

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	M-1iA/0.5AL
Country	Japan
Reach, mm	420
Axes	6

Payload, kg	0.5
Repeatability mm, mm	± 0.03
Weight kg, kg	26*2
Controller	R-30iB Plus
Type	Delta

Motion range, °
J1	Ø 420 x 150*3
J2	Ø 420 x 150*3
J3	Ø 420 x 150*3
J4	720
J5	300
J6	720

Maximum speed, °/s
J4	1440
J5	1440
J6	1440

Protection
body	IP20
wrist & J3 arm	IP20
