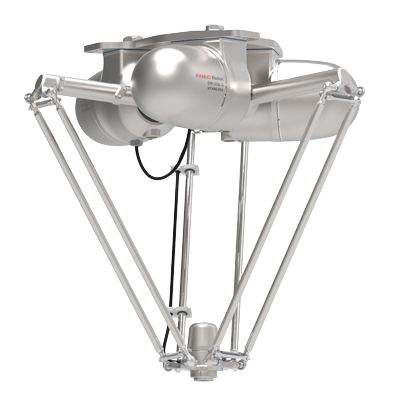

Industrial Robot FANUC DR-3iB/6 STAINLESS

The new DR-3iB/6 STAINLESS is FANUC's first stainless steel delta robot designed to help customers maximize efficiency in pick and pack applications, especially for food, pharmaceutical and cosmetic products. The IP69K-rated robot features a fully enclosed stainless steel body that is resistant to the chemicals and high pressures/temperatures required in the harsh washdown environments typical of the food, cosmetic and pharmaceutical industries.

Features:

High precision
Load capacity 6 kg
Working range 1200 mm

Manufacturer

Reach: 1200 mm
Payload: 6 kg

Model: DR-3iB/6 STAINLESS
Axes: 4

Industries

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	DR-3iB/6 STAINLESS
Country	Japan
Reach, mm	1200
Axes	4

Payload, kg	6
Repeatability mm, mm	± 0.03
Weight kg, kg	250
Controller	R-30iB Plus
Type	Delta

Motion range, °
J1	Ø 1200 x 450*3
J2	Ø 1200 x 450*3
J3	Ø 1200 x 450*3
J4	720

Maximum speed, °/s
J4	1714

Protection
body	IP69K
wrist & J3 arm	IP69K
