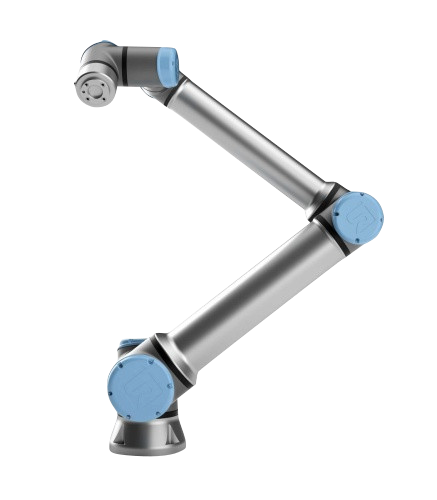

Cobot Universal Robots UR10e
- Manufacturer
-
- Reach
- 1300 mm
- Payload
- 10 kg
- Model
- UR10e
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Universal Robots |
| Model | UR10e |
| Reach, mm | 1300 |
| Axes | 6 |
| Payload, kg | 10 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 28,9 |
| Controller | UR Controller |
| Motion range, ° | |
|---|---|
| J1 | ±360 |
| J2 | ±360 |
| J3 | ±360 |
| J4 | ±360 |
| J5 | ±360 |
| J6 | ±360 |
| Maximum speed, °/s | |
|---|---|
| J1 | ±120 |
| J2 | ±120 |
| J3 | ±180 |
| J4 | ±180 |
| J5 | ±180 |
| J6 | ±180 |
