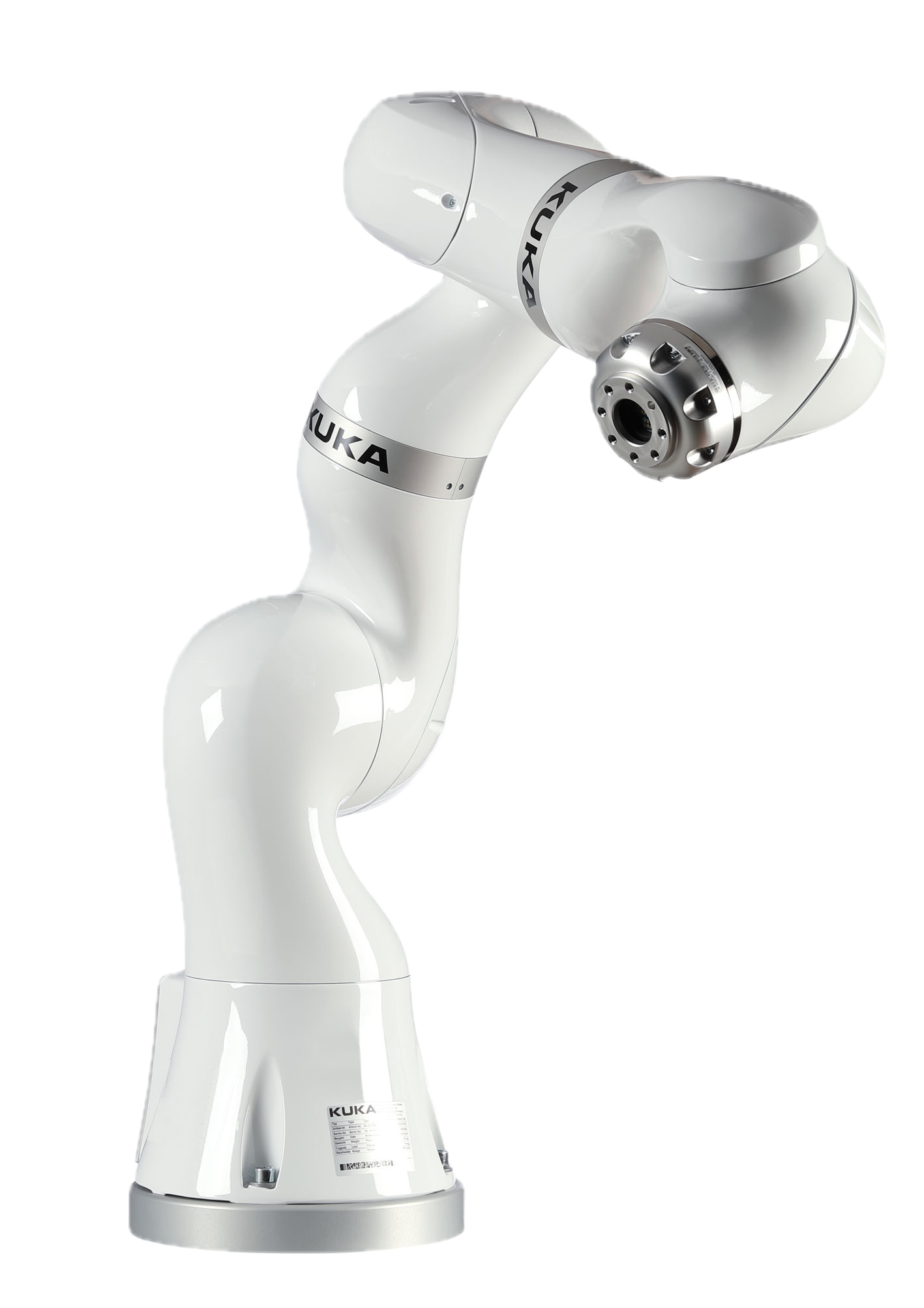

Kuka Cobot KUKA LBR iiwa 7 R800 CR

The KUKA LBR iiwa 7 R800 collaborative robot is compact and lightweight, made of aluminum. 7 degrees of freedom allow it to be flexible and precise, and sensors facilitate safe work with people. The LBR iiwa R800 can be programmed simply by moving it with your hand.

Features:

  • Working range 800 mm

  • Safe interaction with humans

  • Does not require protective fences

  • Easy to program and operate

  • Ability to work in limited spaces

Manufacturer
Reach
800 mm
Payload
7 kg
Model
LBR iiwa 7 R800 CR
Axes
7
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model LBR iiwa 7 R800 CR
Country Germany
Reach, mm 800
Axes 7
Payload, kg 7
Repeatability mm, mm ± 0.1
Weight kg, kg 26.1
Controller Sunrise Cabinet
Type Cobot

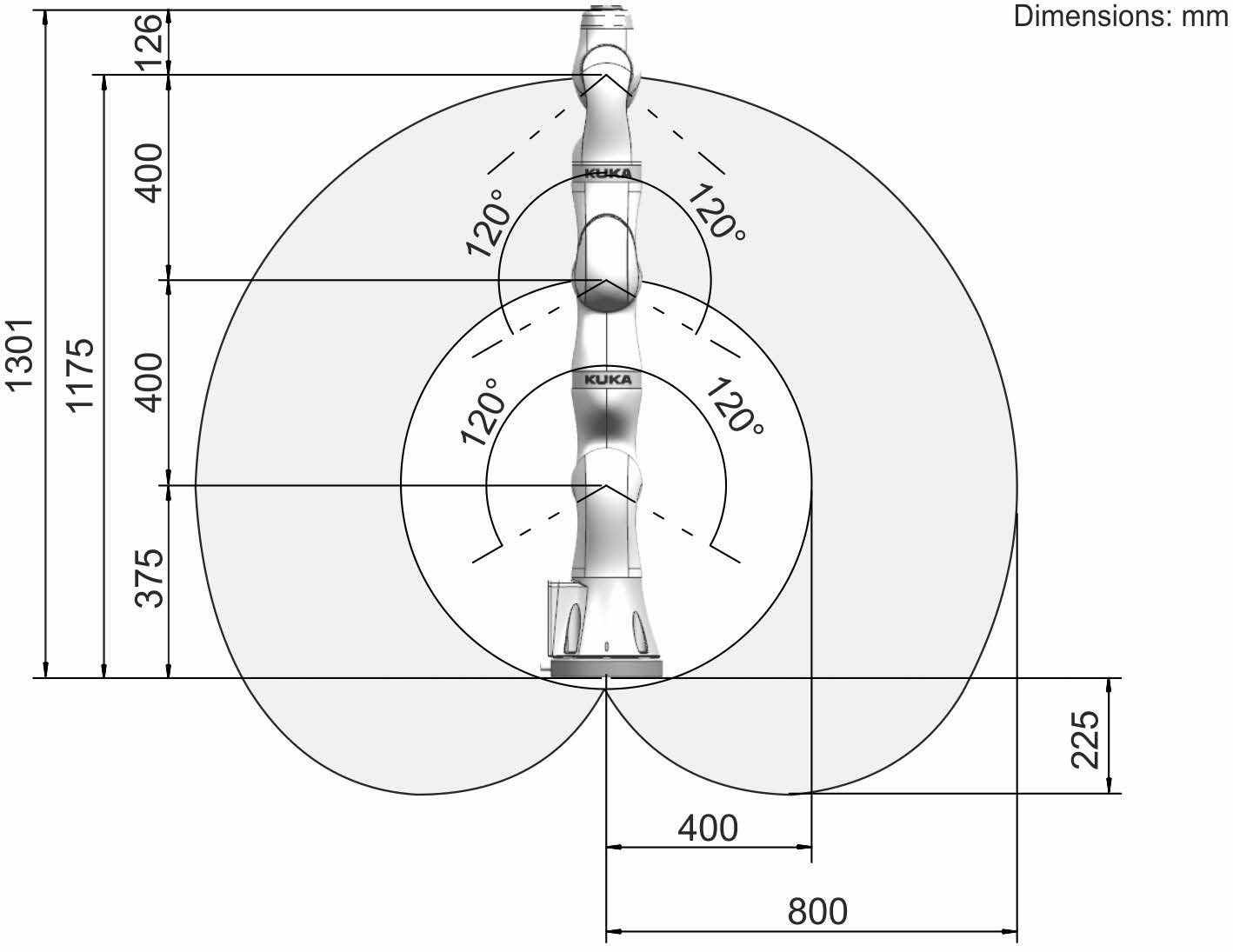

Motion range, °
A1 ± 170
A2 ± 120
A3 ± 170
A4 ± 120
A5 ± 170
A6 ± 120
Motion range, axis 7 ± 175
Maximum speed, °/s
A1 98
A2 98
A3 100
A4 130
A5 140
A6 180
Axis velocity, axis 7 180
Protection
Protection rating (IEC 60529) IP54
