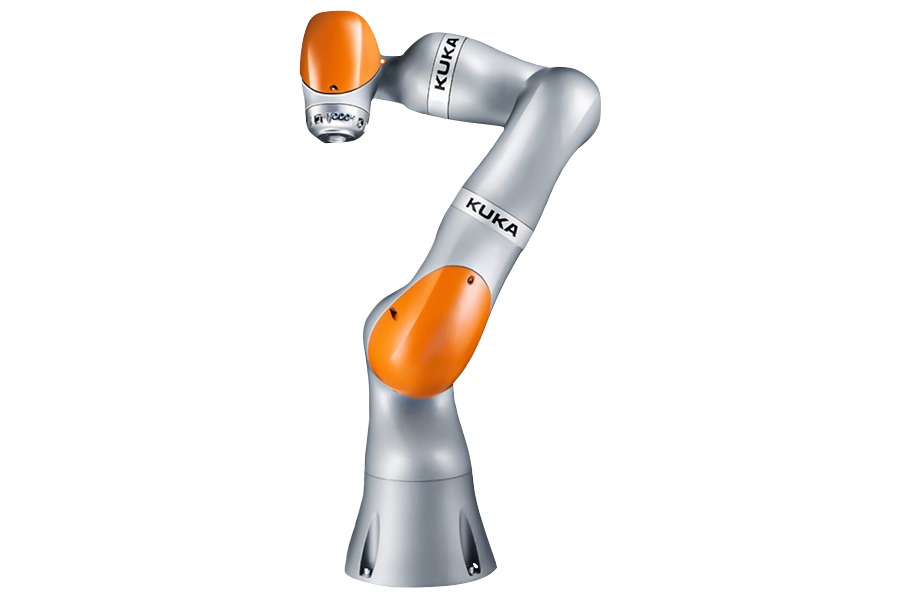

Kuka Cobot Kuka LBR iiwa 14 R820
- Manufacturer
-
- Reach
- 820 mm
- Payload
- 14 kg
- Model
- LBR iiwa 14 R820
- Axes
- 7
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | LBR iiwa 14 R820 |
| Reach, mm | 820 |
| Axes | 7 |
| Payload, kg | 14 |
| Repeatability mm, mm | ± 0.15 |
| Weight kg, kg | 22.3 |
| Controller | KUKA Sunrise Cabinet |
| Motion range, ° | |
|---|---|
| J1 | 340 |
| J2 | 240 |
| J3 | 240 |
| J4 | 340 |
| J5 | 340 |
| J6 | 240 |
| 350 | |
| Maximum speed, °/s | |
|---|---|
| J1 | 85 |
| J2 | 85 |
| J3 | 100 |
| J4 | 75 |
| J5 | 130 |
| J6 | 135 |
| J7 | 135 |
