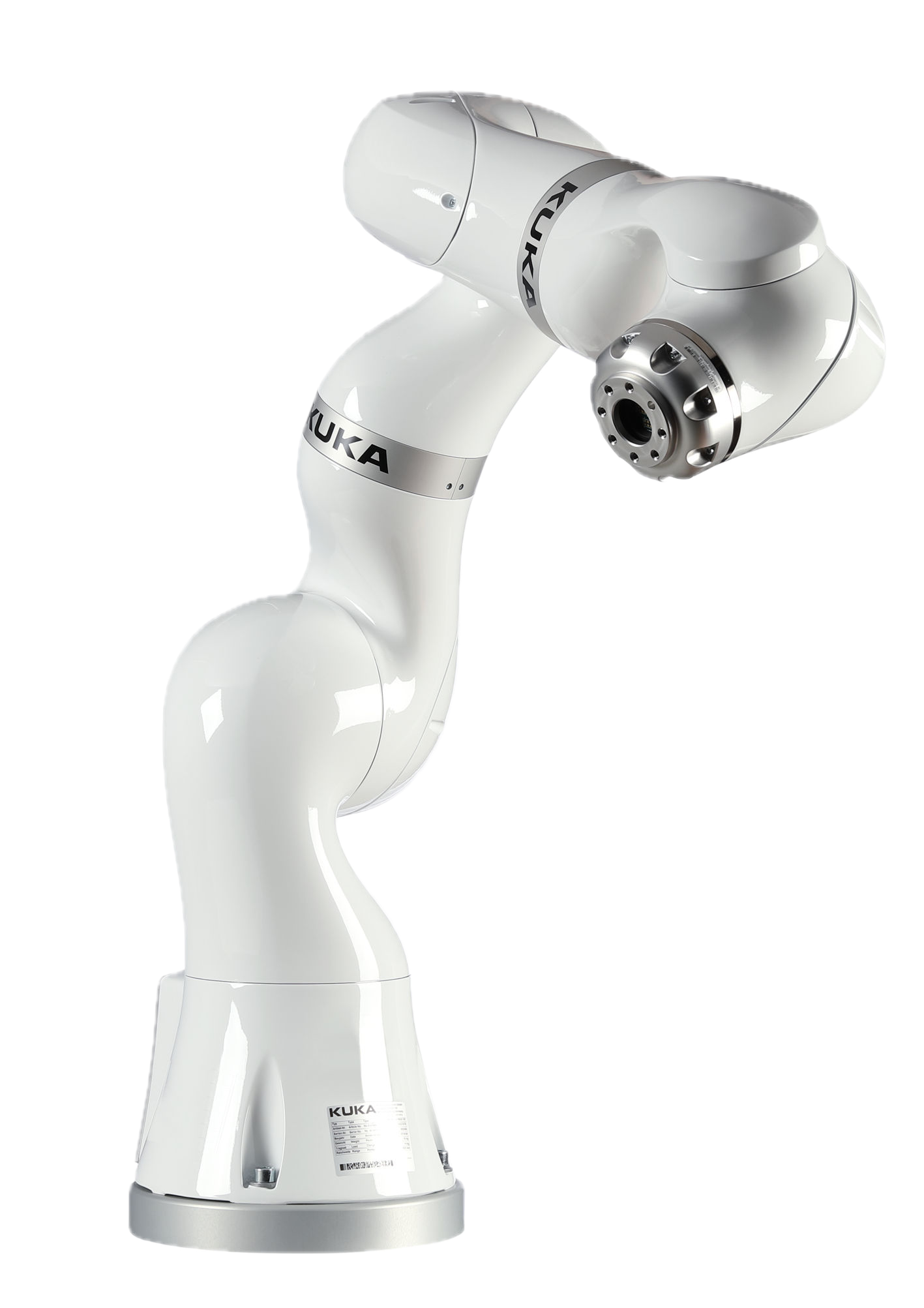

Kuka Cobot KUKA LBR iiwa 14 R820 CR

The advanced KUKA LBR iiwa 14 R820 collaborative robot has a payload of 14 kg, a reach of 820 mm and an IP54 protection rating. The LBR iiwa 14 R820 has built-in sensors and smooth, soft edges that make it safe for human collaboration. The KUKA LBR iiwa 14 is ideal for coating, handling, palletizing, assembly, handling and other material handling applications.

Features:

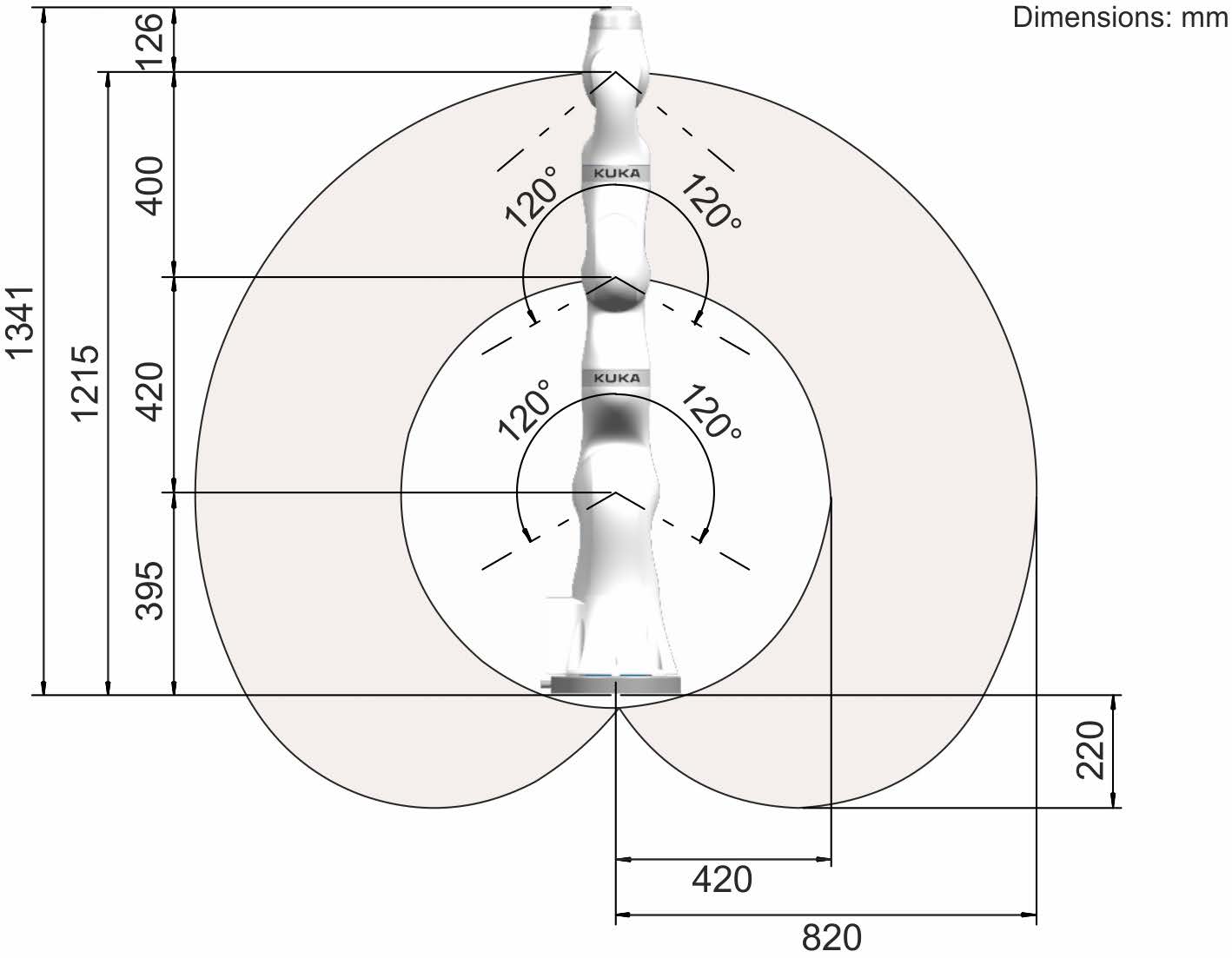

  • Working range 820 mm

  • Safe interaction with humans

  • Does not require protective fences

  • Ability to work in confined spaces

Manufacturer
Reach
820 mm
Payload
14 kg
Model
LBR iiwa 14 R820 CR
Axes
7
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model LBR iiwa 14 R820 CR
Country Germany
Reach, mm 820
Axes 7
Payload, kg 14
Repeatability mm, mm ± 0.15
Weight kg, kg 32.7
Controller Sunrise Cabinet
Type Cobot
Motion range, °
A1 ± 170
A2 ± 120
A3 ± 170
A4 ± 120
A5 ± 170
A6 ± 120
Motion range, axis 7 ± 175
Maximum speed, °/s
A1 85
A2 85
A3 100
A4 75
A5 130
A6 135
Axis velocity, axis 7 135
Protection
Protection rating (IEC 60529) IP54
