Cobot Kawasaki duAro2

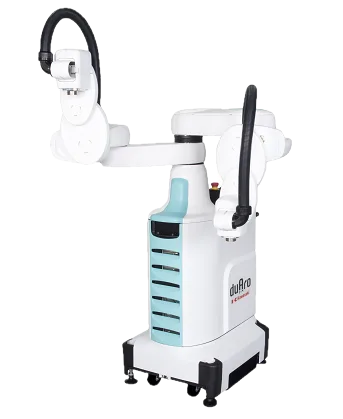

The Kawasaki duAro2 is a collaborative SCARA robot with two 4-axis independent manipulators that can perform multiple tasks simultaneously, thereby increasing overall productivity. The manipulators are mounted on a movable platform, so installing the duAro2 does not require reconfiguring the production line.
Features of the duAro2:
Two independent manipulators
High precision and speed
Suitable for various applications
Synchronization of manipulator movements
- Manufacturer
-
- Reach
- 785 mm
- Payload
- 3 kg
- Model
- duAro2
- Axes
- 4
- Industries
- Solutions
Specifications
| Manufacturer | Kawasaki |
| Model | duAro2 |
| Country | Japan |
| Reach, mm | 785 |
| Axes | 4 |
| Payload, kg | 3 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 220 |
| Mounting position | Floor mounting |
| Controller | F61 |
| Type | SCARA |
| Motion range, ° | |
|---|---|
| Lower arm JT1 | ± 170° |
| Lower arm JT2 | -130°/ +140° |
| Lower arm JT3 | 0 mm / +550 mm |
| Lower arm JT4 | ± 360° |
| Upper arm JT1 | -140°/ +500° |
| Upper arm JT2 | -140°/ +130° |
| Upper arm JT3 | 0 mm / +550 mm |
| Upper arm JT4 | ± 360° |
