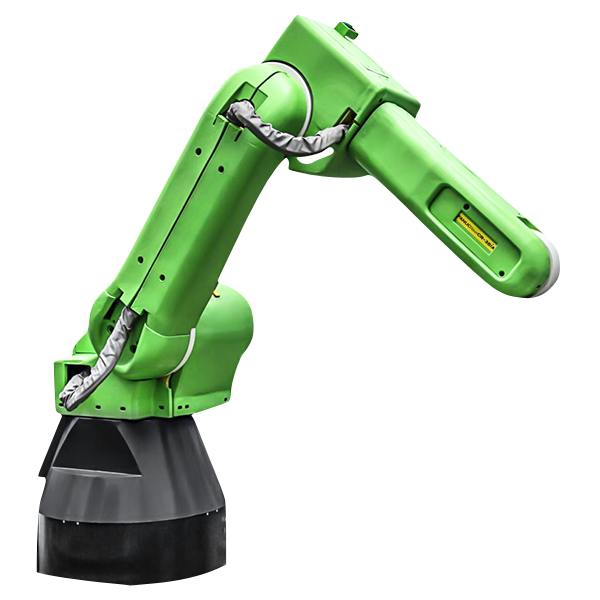

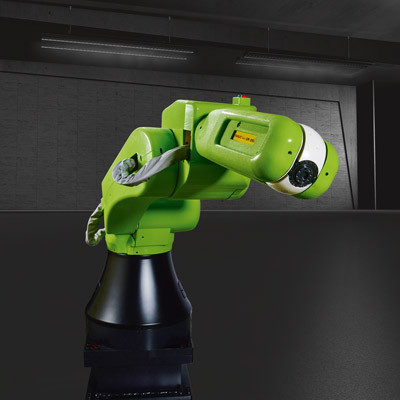

Cobot FANUC CR-35iA

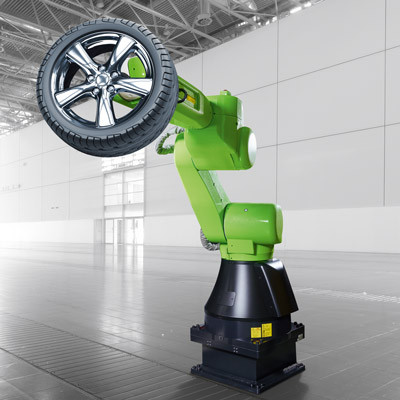

FANUC CR-35iA is a high-tech robot for safe, collaborative work with humans. This collaborative robot has the highest payload among competitors - 35 kg, as well as a working range of 1813 mm, which makes it an ideal solution for automating a huge variety of processes. CR-35iA does not require a protective fence, as its built-in safety sensor instantly stops the robot's movement when even the smallest collision/touch is detected.
Features:
Working range 1813 mm

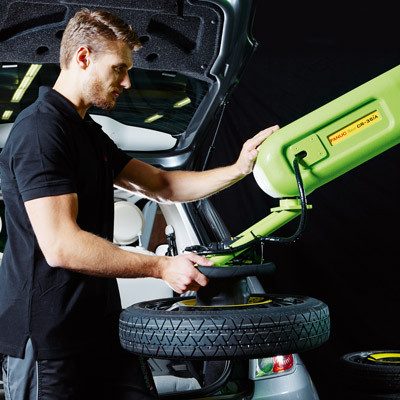

Safe interaction with people
Does not require protective fences
Highest load capacity 35 kg
- Manufacturer
-
- Reach
- 1813 mm
- Payload
- 35 kg
- Model
- CR-35iA
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | CR-35iA |
| Reach, mm | 1813 |
| Axes | 6 |
| Payload, kg | 35 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 990 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 165 |
| J3 | 258 |
| J4 | 400 |
| J5 | 220 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 750 |
| J2 | 750 |
| J3 | 750 |
| J4 | 750 |
| J5 | 750 |
| J6 | 750 |
