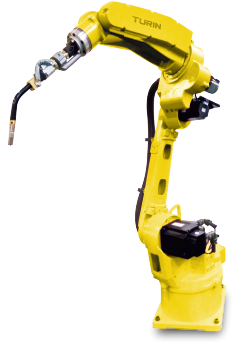

Welding Robot TURIN TKB1520

The TKB1520 industrial welding robot is ideally suited for working in confined spaces due to its compact size and hollow body, through which the built-in cable passes. The robot also has a built-in welding torch. The robot's radius of action is 1507 mm. It uses highly flexible, waterproof, fire-resistant cables, dust-proof protective sleeves for cables, and American GATES drive belts.

Features:

Speed and precision;
Large radius of action 1507 mm;
Various mounting options floor/ceiling;
Ability to work in confined spaces.

Manufacturer

Reach: 1507 mm
Payload: 6 kg

Model: TKB1520
Axes: 6

Industries

Construction

Solutions

Welding

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	TURIN
Model	TKB1520
Country	China
Reach, mm	1507
Axes	6

Payload, kg	6
Repeatability mm, mm	± 0.08
Weight kg, kg	165
Mounting position	Floor, Ceiling
Controller	± 0.08
Type	Articulated robot

Motion range, °
J1	±170
J2	±170
J3	-80/100
J4	±140
J5	-105/85
J6	±360

Maximum speed, °/s
J1	149
J2	149
J3	149
J4	218
J5	257
J6	675
