Welding Robot Kawasaki BX200X

BX200X - 6-axis hollow wrist industrial robot from Kawasaki, capable of handling objects weighing up to 200 kg. BX200X features high speed and positioning accuracy, has a large working range of 3412 mm and is suitable for automation of spot welding, machine maintenance, assembly and material handling.

Features:

  • High speed and positioning accuracy

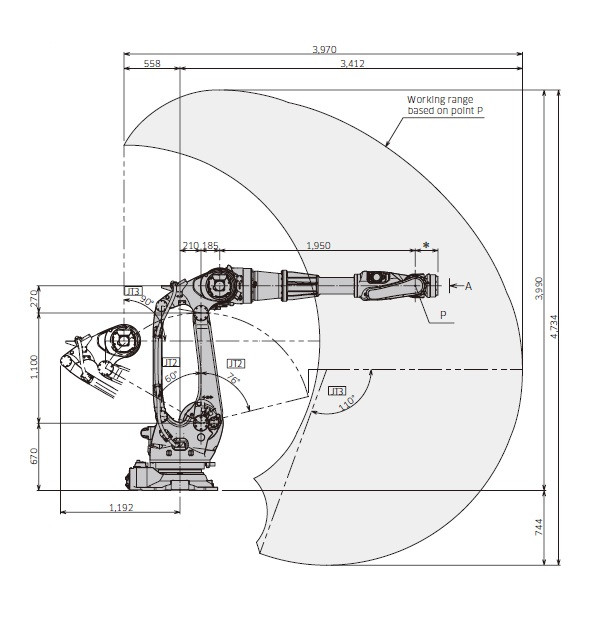

  • Working range 3412 mm

  • Load capacity 200 kg

Manufacturer
Reach
3412 mm
Payload
200 kg
Model
BX200X
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model BX200X
Reach, mm 3412
Axes 6
Payload, kg 200
Repeatability mm, mm ± 0.07
Weight kg, kg 1450
Controller E02
Motion range, °
J1 ± 180
J2 + 76/-60
J3 +90/-110
J4 ± 210
J5 ± 125
J6 ± 210
Maximum speed, °/s
J1 125
J2 102
J3 85
J4 105
J5 120
J6 200
