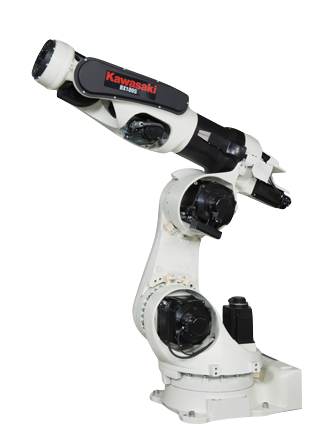

Welding Robot Kawasaki BX100S

BX100S - 6-axis hollow wrist industrial robot from Kawasaki, capable of manipulating objects weighing up to 100 kg. BX100S features high speed and positioning accuracy, has a small working range of 1634 mm and is suitable for automation of spot welding, machine maintenance, assembly and material handling.

Features:

  • Hollow and compact design

  • High speed and positioning accuracy

  • Working range 1634 mm

  • Load capacity 100 kg

Manufacturer
Reach
1634 mm
Payload
100 kg
Model
BX100S
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model BX100S
Reach, mm 1634
Axes 6
Payload, kg 100
Repeatability mm, mm ± 0.06
Weight kg, kg 720
Controller E02
Motion range, °
J1 ± 160
J2 + 120/-65
J3 +90/-81
J4 ± 210
J5 ± 125
J6 ± 210
Maximum speed, °/s
J1 135
J2 125
J3 155
J4 200
J5 160
J6 300
