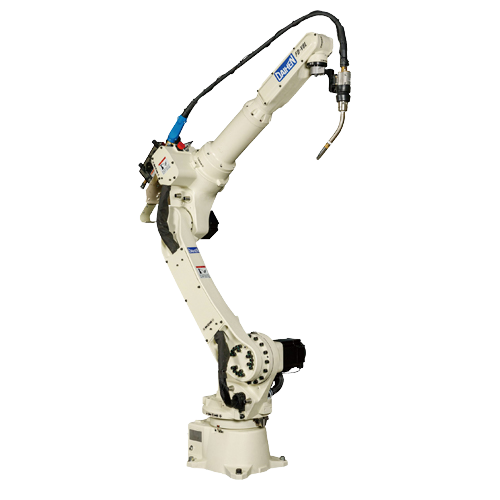

Industrial Robot OTC Daihen FD-V8L Serie II

Reach: 1437 mm
Payload: 8 kg

Model: FD-V8L Serie II
Axes: 6

Industries

Solutions

Welding

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	OTC Daihen
Model	FD-V8L Serie II
Country	Japan
Reach, mm	1437
Axes	6

Payload, kg	8
Repeatability mm, mm	± 0.05
Weight kg, kg	237

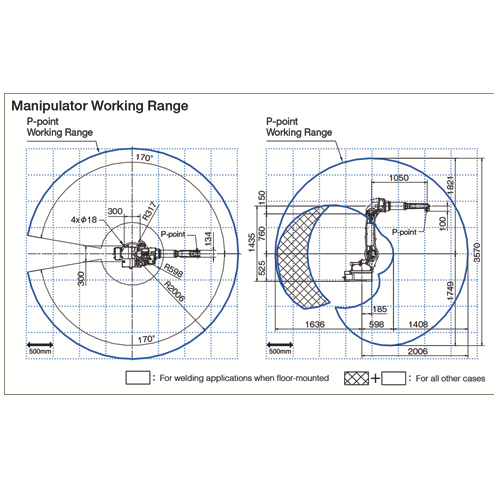

Motion range, °
J1 (Rotation)	± 170
J2 (Lower Arm)	- 155/+ 100
J3 (Upper Arm)	- 170/+ 260
J4 (Swing)	± 180
J5 (Bending)	- 50/+ 230
J6 (Twist)	± 360

Maximum speed, °/s
J1 (Rotation)	225
J2 (Lower Arm)	205
J3 (Upper Arm)	255
J4 (Swing)	450
J5 (Bending)	430
J6 (Twist)	630
