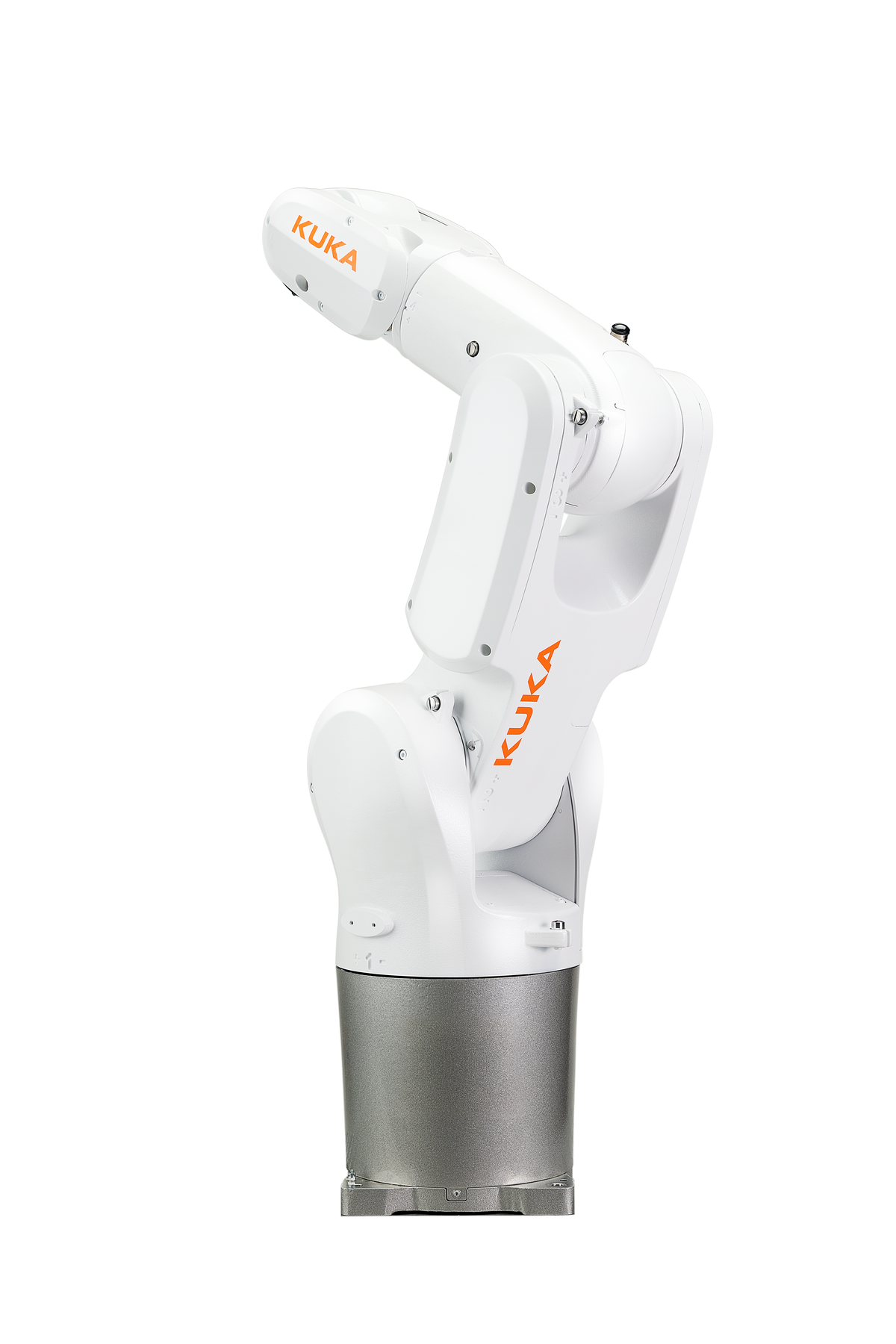

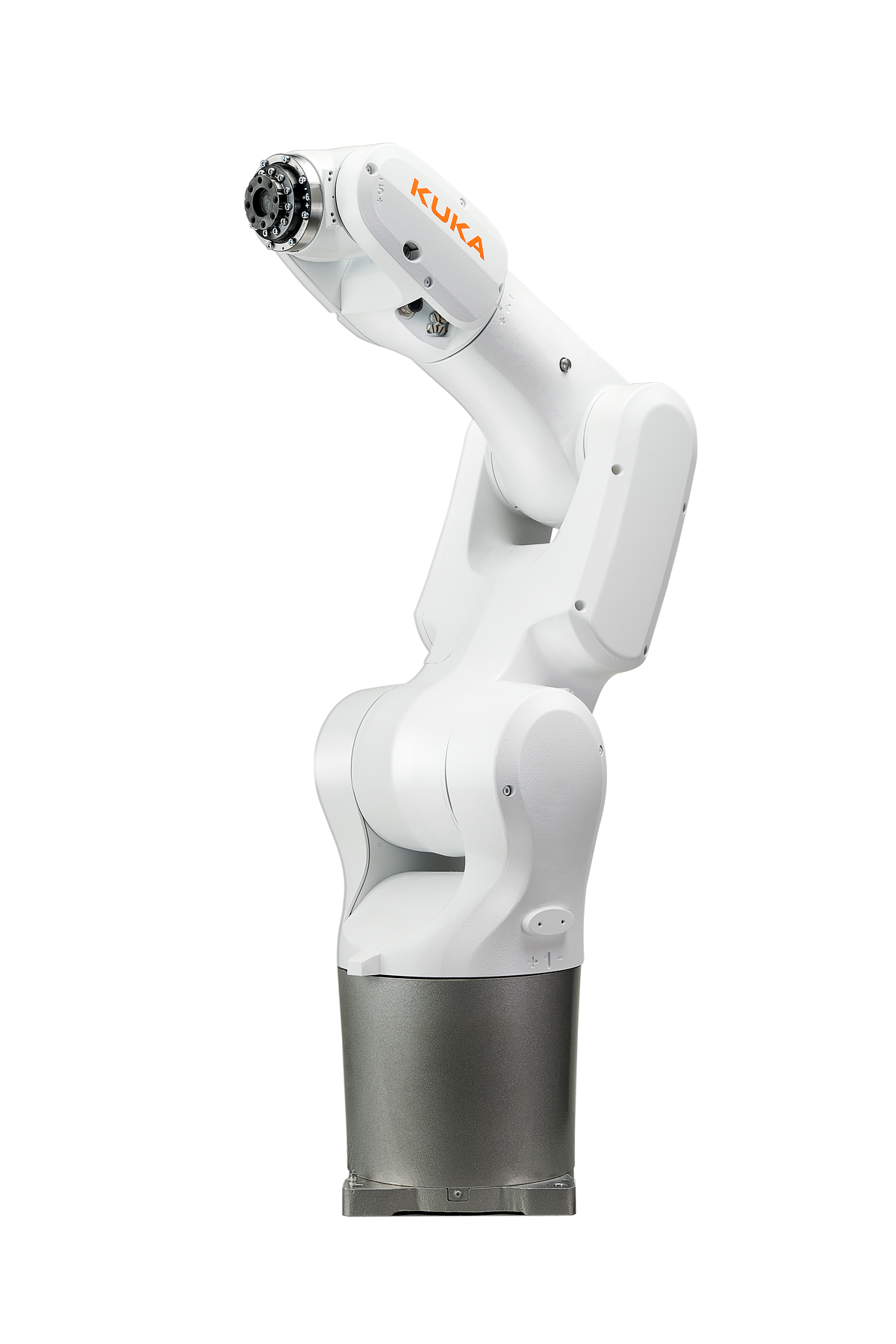

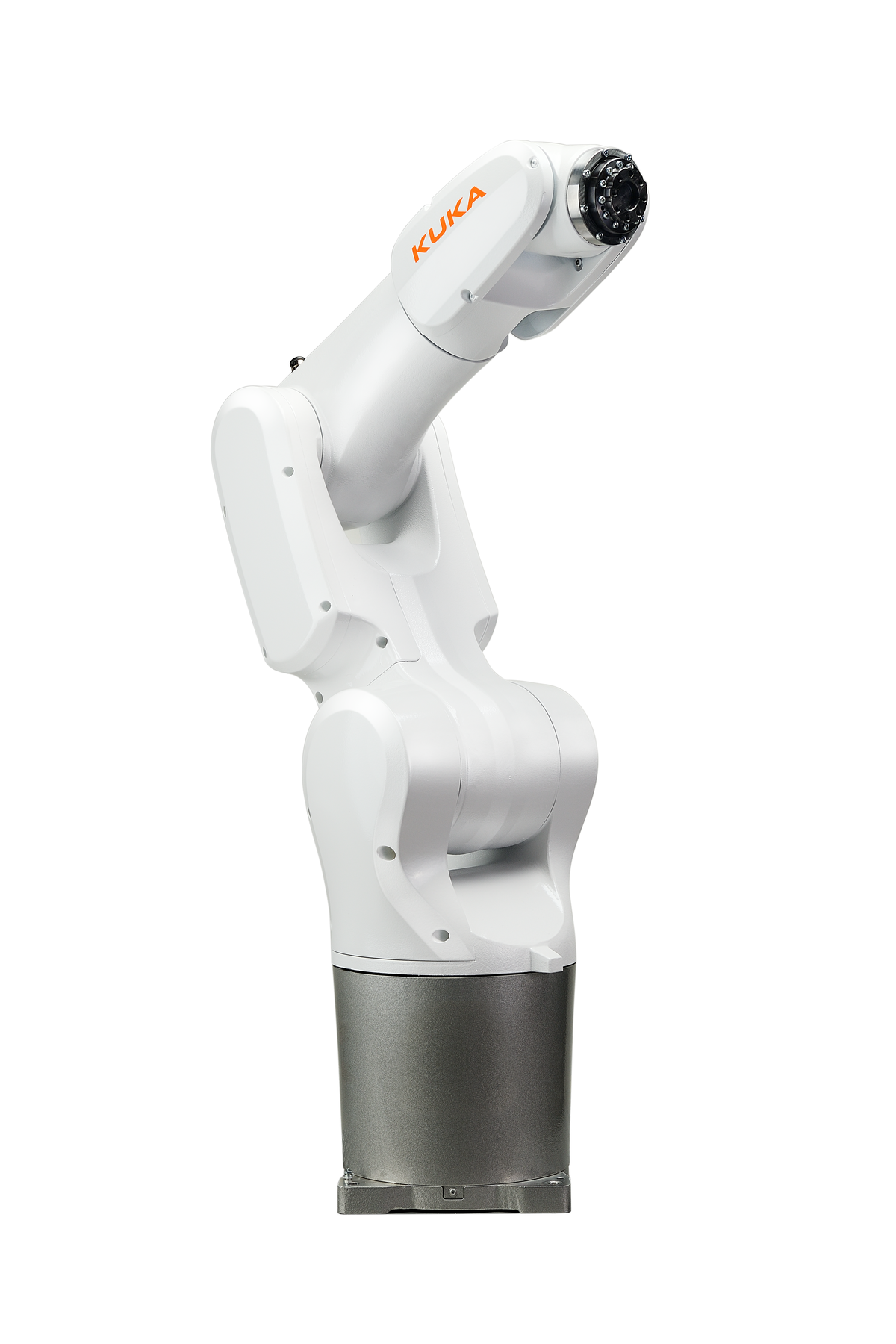

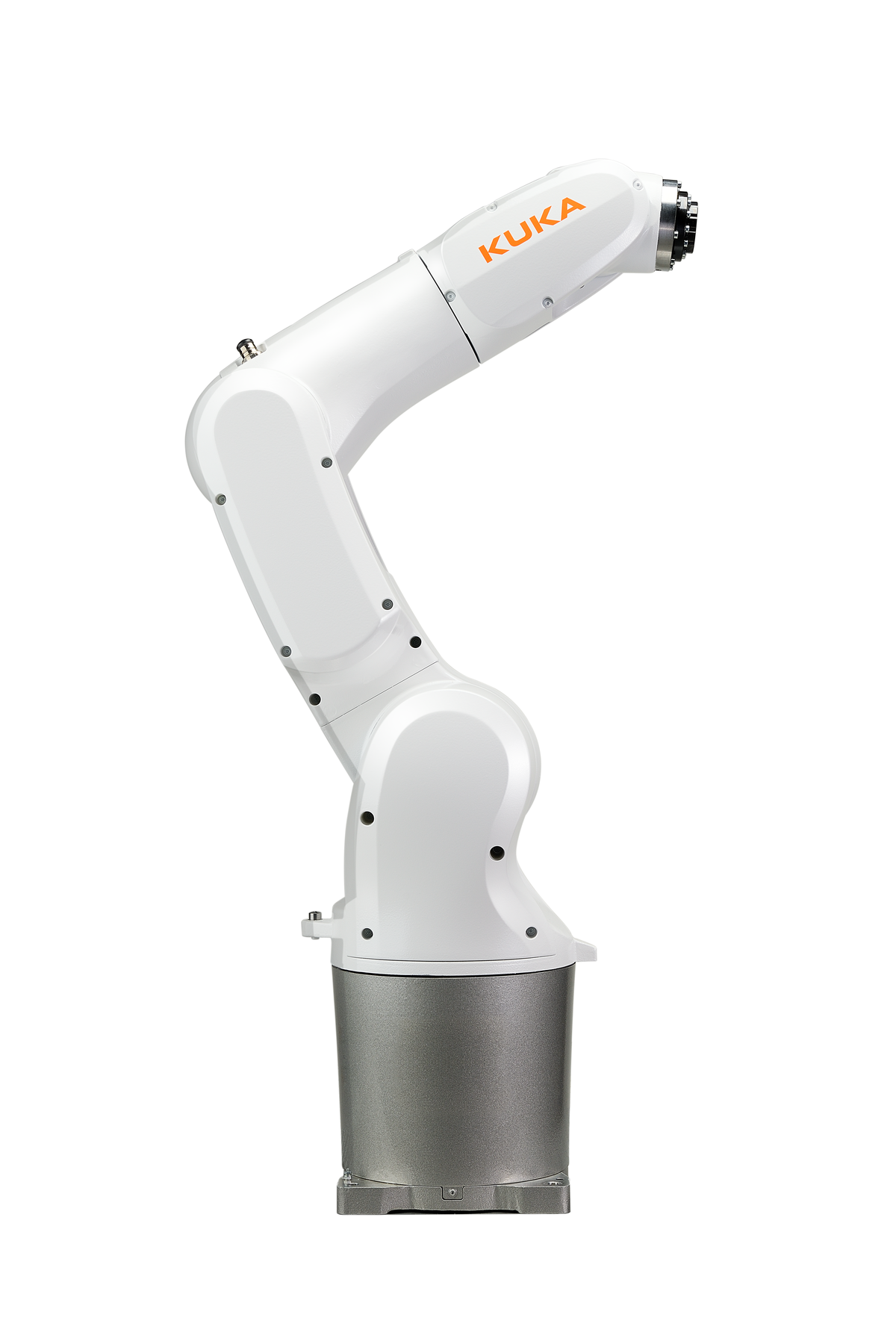

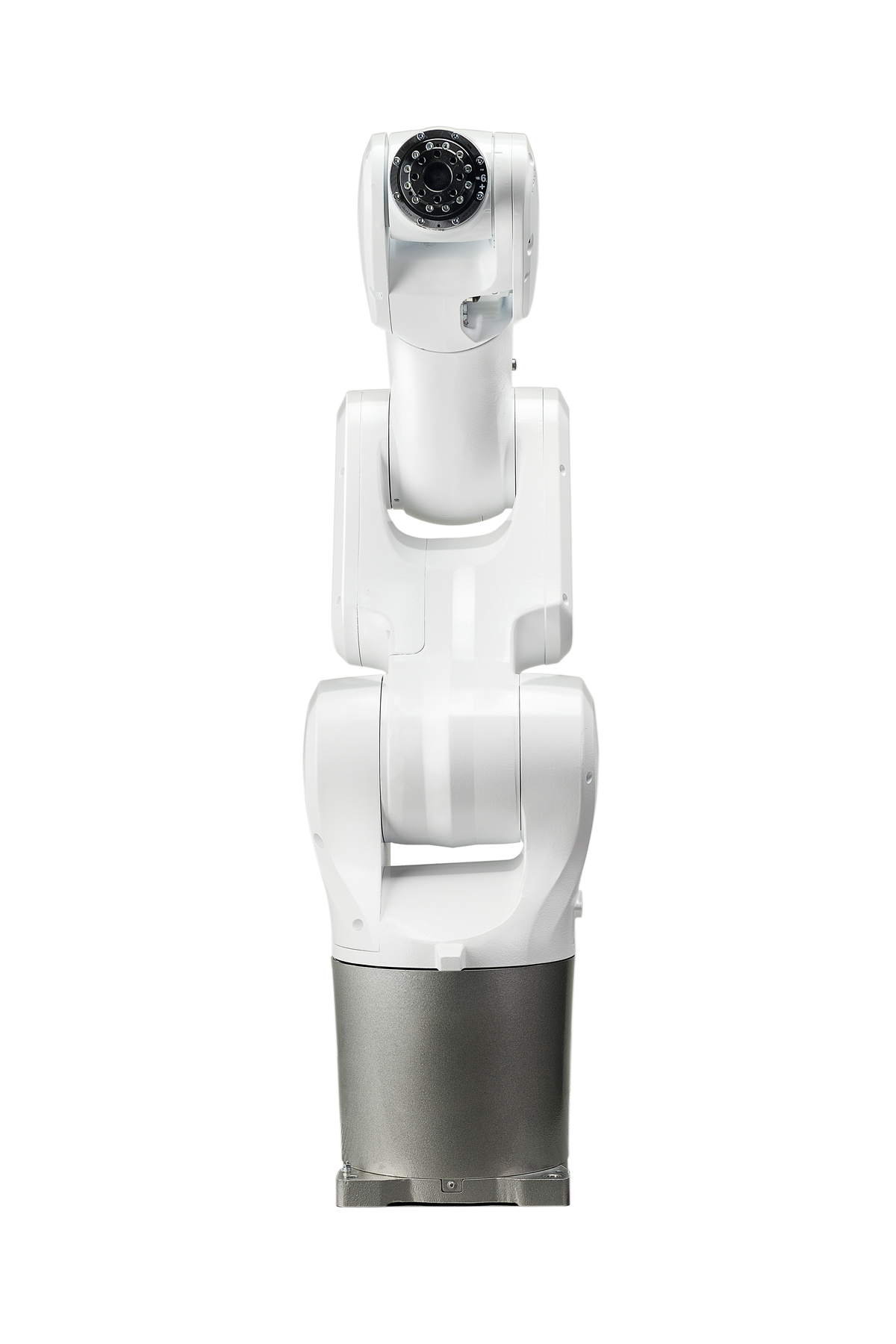

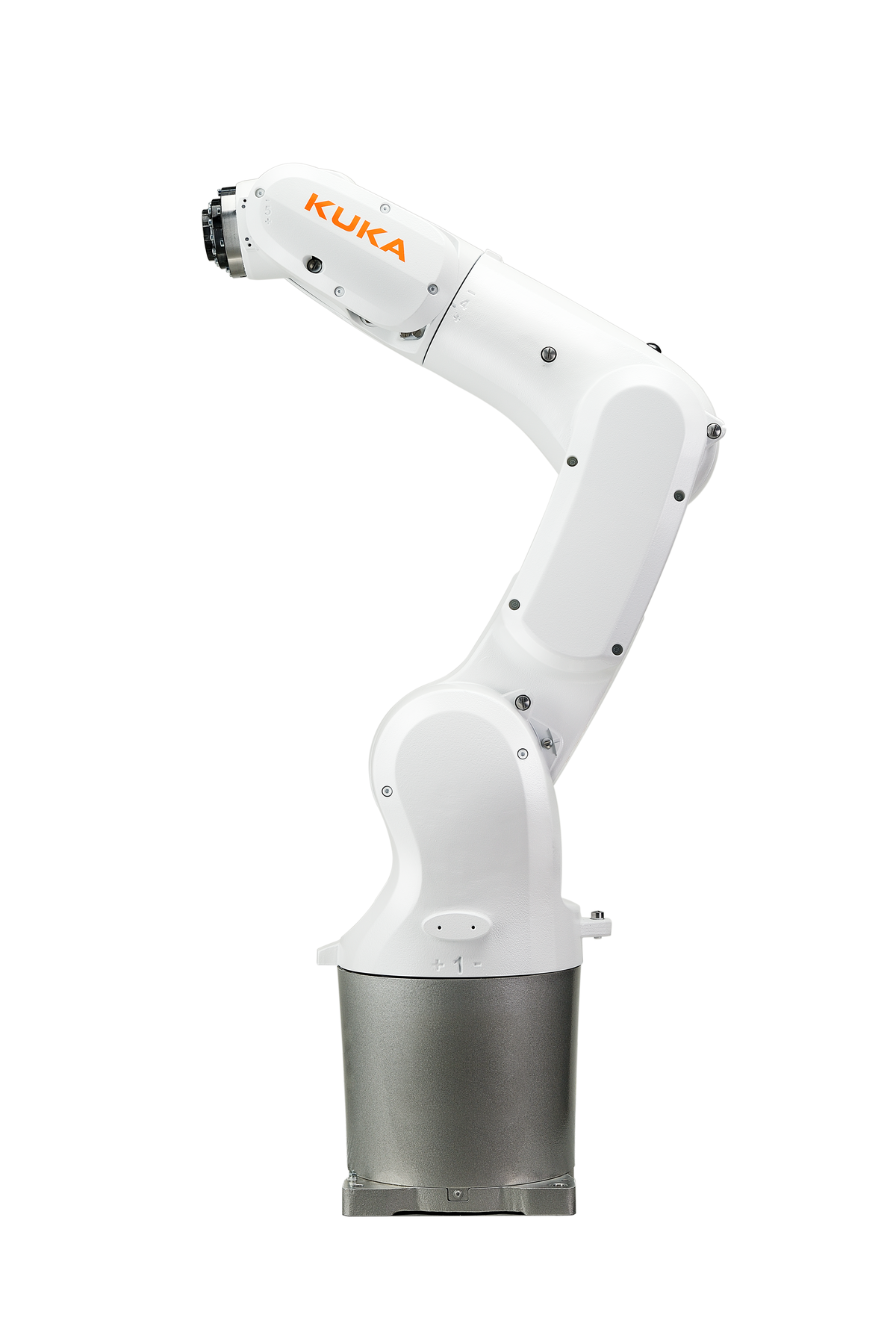

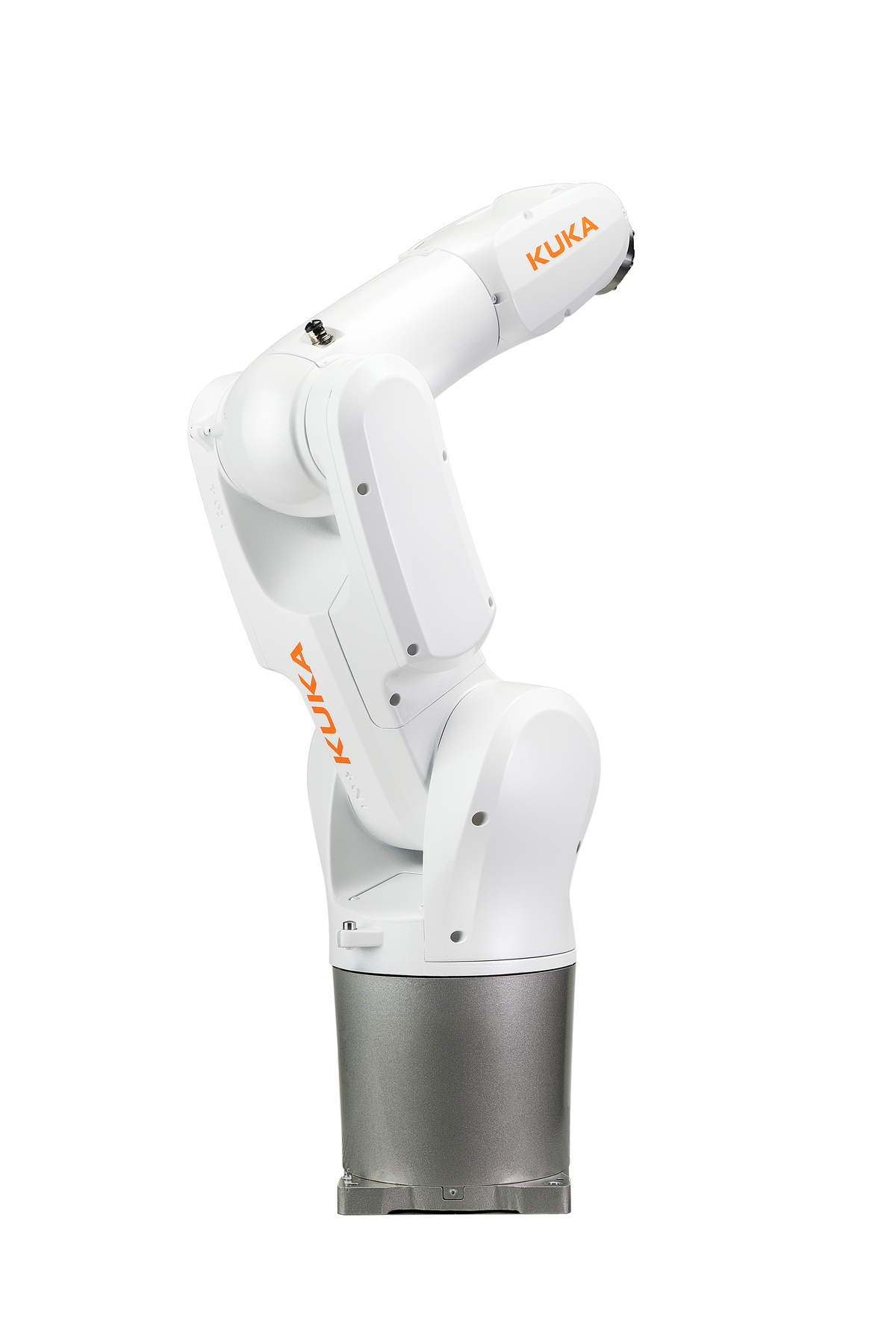

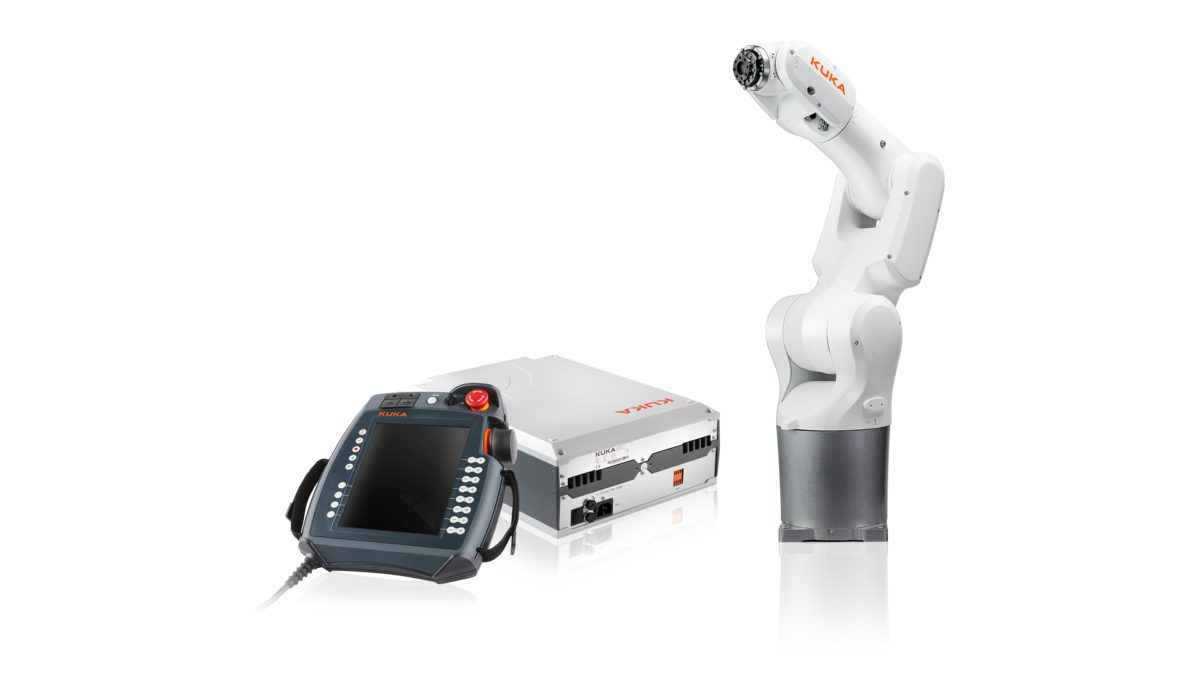

Industrial robot KUKA KR 4 R600
- Manufacturer
-
- Reach
- 601 mm
- Payload
- 4 kg
- Model
- KR 4 R600
- Axes
- 6
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 4 R600 |
| Country | Germany |
| Reach, mm | 601 |
| Axes | 6 |
| Payload, kg | 4 |
| Repeatability mm, mm | ± 0.015 |
| Weight kg, kg | 27 |
| Controller | KUKA KR C5 micro |
| Type | Articulated robot |

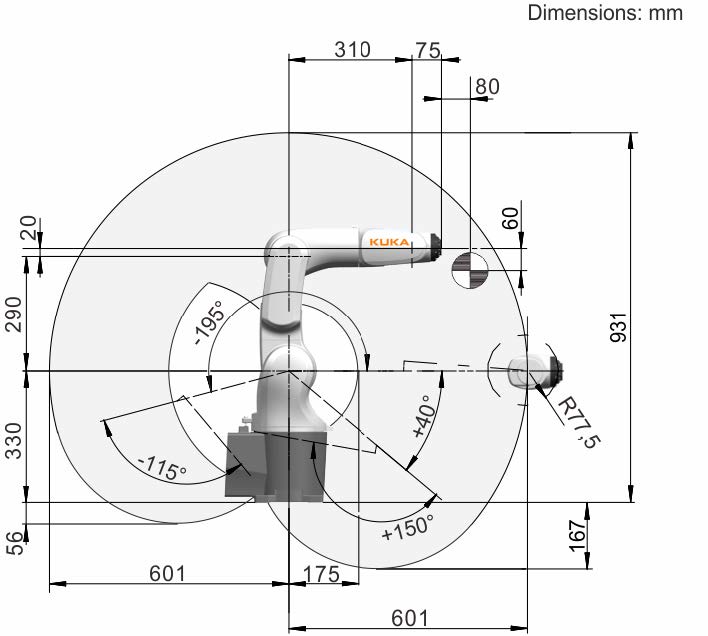

| Motion range, ° | |
|---|---|
| A1 | ± 170 |
| A2 | ± 195/40 |
| A3 | - 115/150 |
| A4 | ± 185 |
| A5 | ± 120 |
| A6 | ± 350 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP40 |
| Protection rating, robot wrist (IEC 60529) | IP40 |
