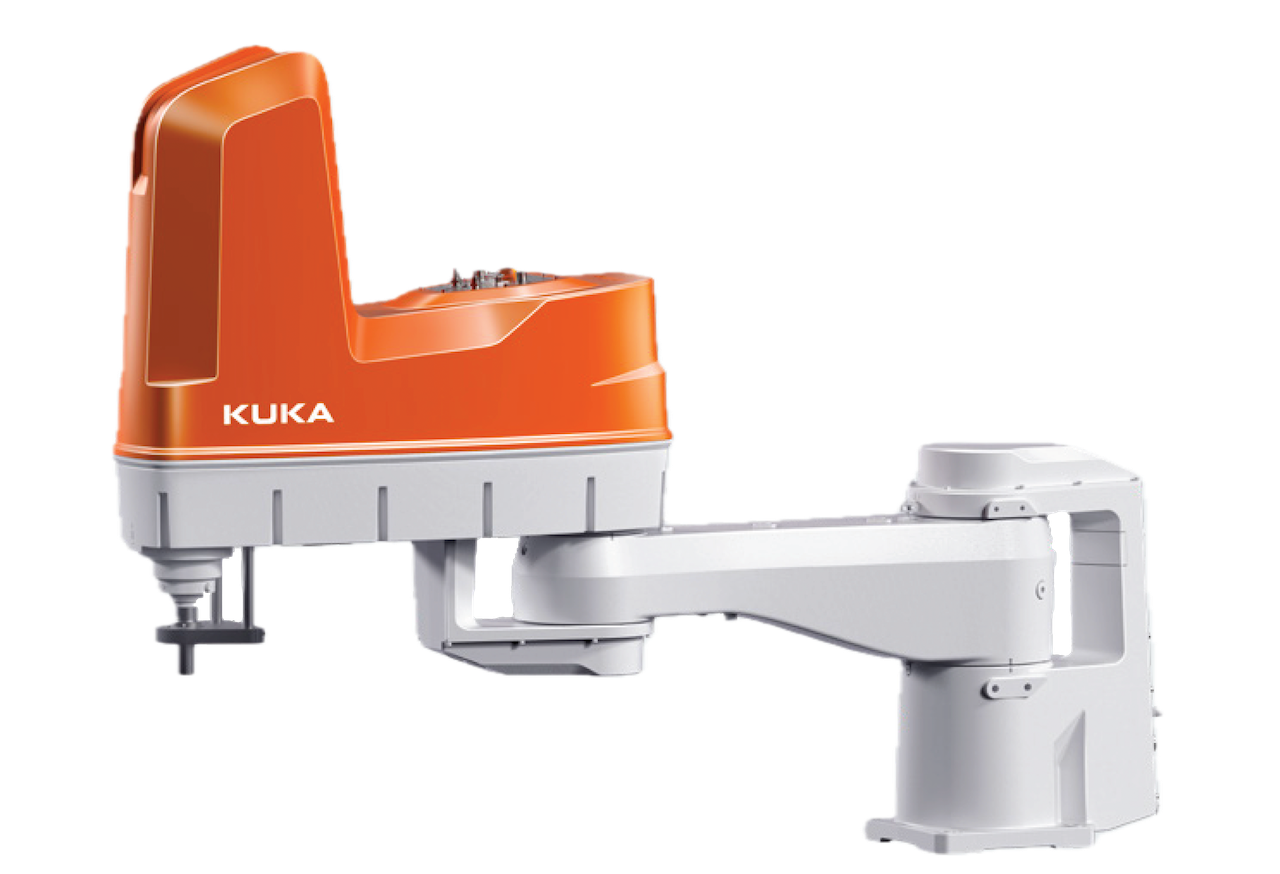

Industrial Robot KUKA KR 60 R1200 Z400 CS

KUKA KR 60 R1200 Z400 CS - The SCARA robot with a payload capacity of 60 kg, designed for moving heavy objects at high speed. The KR 60 R1200 Z400 CS features greater rigidity compared to the previous model in this series, making it a more precise robot.

Features:

Highest payload SCARA robot
Reach radius of 1200 mm
High speed

Manufacturer

Reach: 1200 mm
Payload: 60 kg

Model: KR 60 R1200 Z400 CS
Axes: 4

Solutions

Pick & Place
Packaging
Assembly

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	KUKA
Model	KR 60 R1200 Z400 CS
Country	Germany
Reach, mm	1200
Axes	4

Payload, kg	60
Repeatability mm, mm	± 0.05
Weight kg, kg	120
Mounting position	Countertop
Controller	KR CS Box-2
Type	SCARA

Motion range, °
A1	± 135
A2	± 145
A3	- 400 mm / 0
A4	± 360

Maximum speed, °/s
A1	230
A2	260
A3	0.75 m/s
A4	690

Protection
Protection rating (IEC 60529)	IP54
