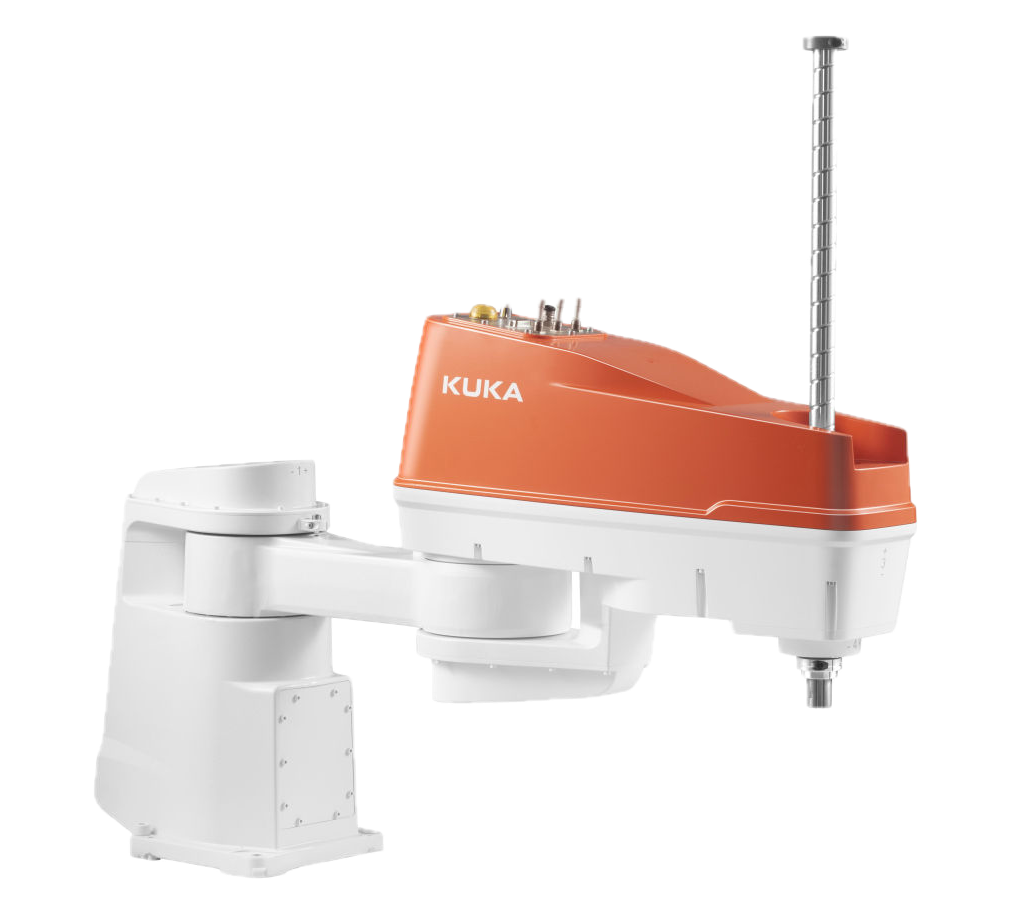

Industrial Robot KUKA KR 12 R750 Z400
KUKA KR 12 R750 Z400 - 4-axis SCARA robot with increased reach - ideal for assembly, small parts handling and packaging tasks. KR 12 R750 Z400 has a reach of 750 mm, compact design, as well as high speed and accuracy, which will increase productivity.
Features:
Fast and accurate
Working range 750 mm
Compact robot
Ability to work in limited spaces
- Manufacturer
-
- Reach
- 750 mm
- Payload
- 12 kg
- Model
- KR 12 R750 Z400
- Axes
- 4
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 12 R750 Z400 |
| Country | Germany |
| Reach, mm | 750 |
| Axes | 4 |
| Payload, kg | 12 |
| Repeatability mm, mm | ± 0.025 |
| Weight kg, kg | 50 |
| Mounting position | Floor |
| Controller | KR C5 micro |
| Type | SCARA |
| Motion range, ° | |
|---|---|
| J1 | ± 145 |
| J2 | ± 145 |
| J3 | - 400/1 |
| J4 | ± 355 |
| Maximum speed, °/s | |
|---|---|
| J1 | 430 |
| J2 | 660 |
| J3 | 1100 |
| J4 | 2700 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP20 |
